System Connections
5
Plase make all connections to this DVD player before plugging in the AC cord.
Since different components may have different names for the same inputs and outputs, carefully read the
operating instructions of any component to be connected to this player.
Please follow all color coding when making the audio and video connections.
The video output of this player can be optimized to fit your TV screen. Please select either 4:3 or 16:9. (refer to
“SETTING THE TV SCREEN” on page 31.)
The Sherwood Newcastle V-756 DVD Player/Decoder is a very versatile unit.
Because it has built-in decoding for DTS, Dolby Digital, Dolby Pro Logic, Dolby Virtual, Circle Surround, MPEG
Multichannel and 6.1 Extended surround it can be used with 5.1 (or 6.1) ready amplifiers and receivers that do
not have their own decoders built-in.
Because it also has coaxial and optical digital outputs, it can also pass the digital data stream to an external
decoder or to amplifier or receiver that has built-in digital decoders.
It can even be used as a high quality multi-channel digital decoder for other source components such as
satellite TV receiver or HDTV tuner.
Follow the enclosed instructions to add the V-756 to your system.
ENGLISH

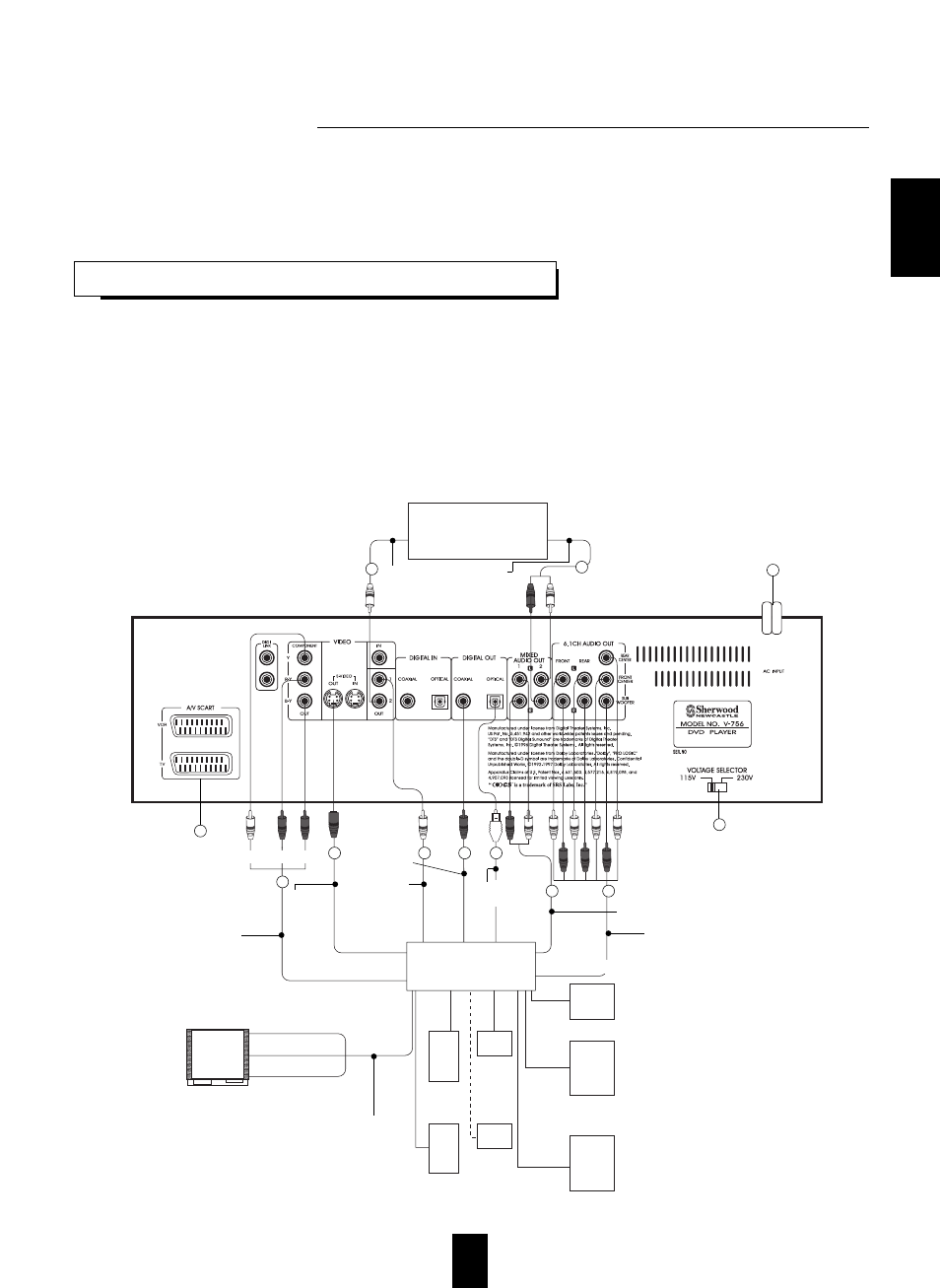

CONNECTING TO AN A/V AMPLIFIER OR RECEIVER
Powered subwoofer
AUDIO IN
6.1(or 6)CH AUDIO IN
Audio cord(supplied)
Main A/V Amplifer
or Receiver
Additional
TV or amplifier
Center
speaker
(front)
Center
speaker
(rear)
Front speaker (right)
Front
speaker
(left)
Video cords
(not supplied)
S-VIDEO IN
(MONITOR) VIDEO OUT
COMPONENT VIDEO IN
S-VIDEO IN
VIDEO IN
COMPONENT VIDEO IN
Monitor TV
VIDEO IN
VIDEO IN
Video cord
(not supplied)
Audio cord
(not supplied)
AUDIO IN
This Unit
Rear speaker
(left)
Rear speaker (right)
Audio cord(not supplied)
Video cord
(supplied)
S-video
cord(not
supplied)
Blue
Red
Green
Component video
cord
(not supplied)
75
Ω coaxial
digital cord
(not supplied)
COAXIAL
DIGITAL
INPUT
OPTICAL
DIGITAL
INPUT
Optical digital
cord(not supplied)
