S zone System Configurations

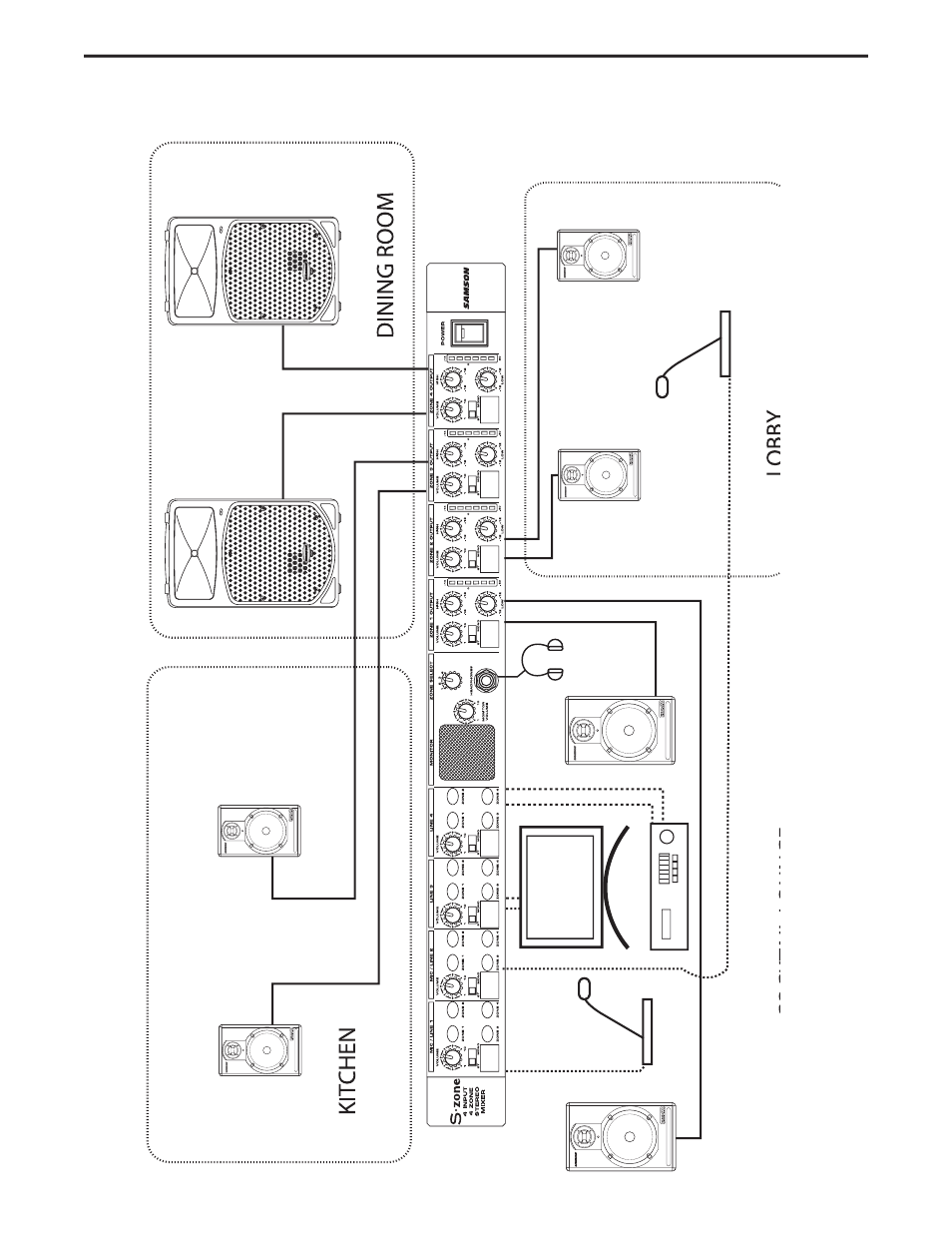

S zone’s Four Room Set-up
The f
ollo
wing e
xample sho
w
s a t
ypic
al installation in a small r
estaur
ant using the S z
one t
o distr
ibut
e audio f
or multimedia pla
yback in the c
ocktail lounge
, pr
ogr
am music pla
yback in
the dining r
oom and lobb
y and paging thr
ough the r
estaur
ant including the k
itchen.
F
or audio sour
ces
, a CD pla
yer is c
onnec
ted t
o the channel 4's line input and the audio fr
om the L
CD
A/V monit
or is c
onnec
ted t
o the line input on channel 3.
T
he micr
ophones c
onnec
ted t
o the S z
one channel 1 and 2’
s input ar
e set t
o duck the music pla
ying in each of the z
ones
.
