17. WIRE COLOR CODE TABLE
THE WIRE COLOR CODE is as follow:
A
PINK
B
SKY BLUE
C
BROWN
D
PURPLE
E
LIGHT GREEN
Wires other than those of any of the above 5 single colors will be displayed by 2 alphanumeric
characters.
1
RED
2
BLUE
3
YELLOW
4
GREEN
5
WHITE
7
ORANGE
8
BLACK
9
GRAY
If the right-hand side numeral of the code is 0, then the wire will be of a single color shown by the
left-hand side numeral (see the above).

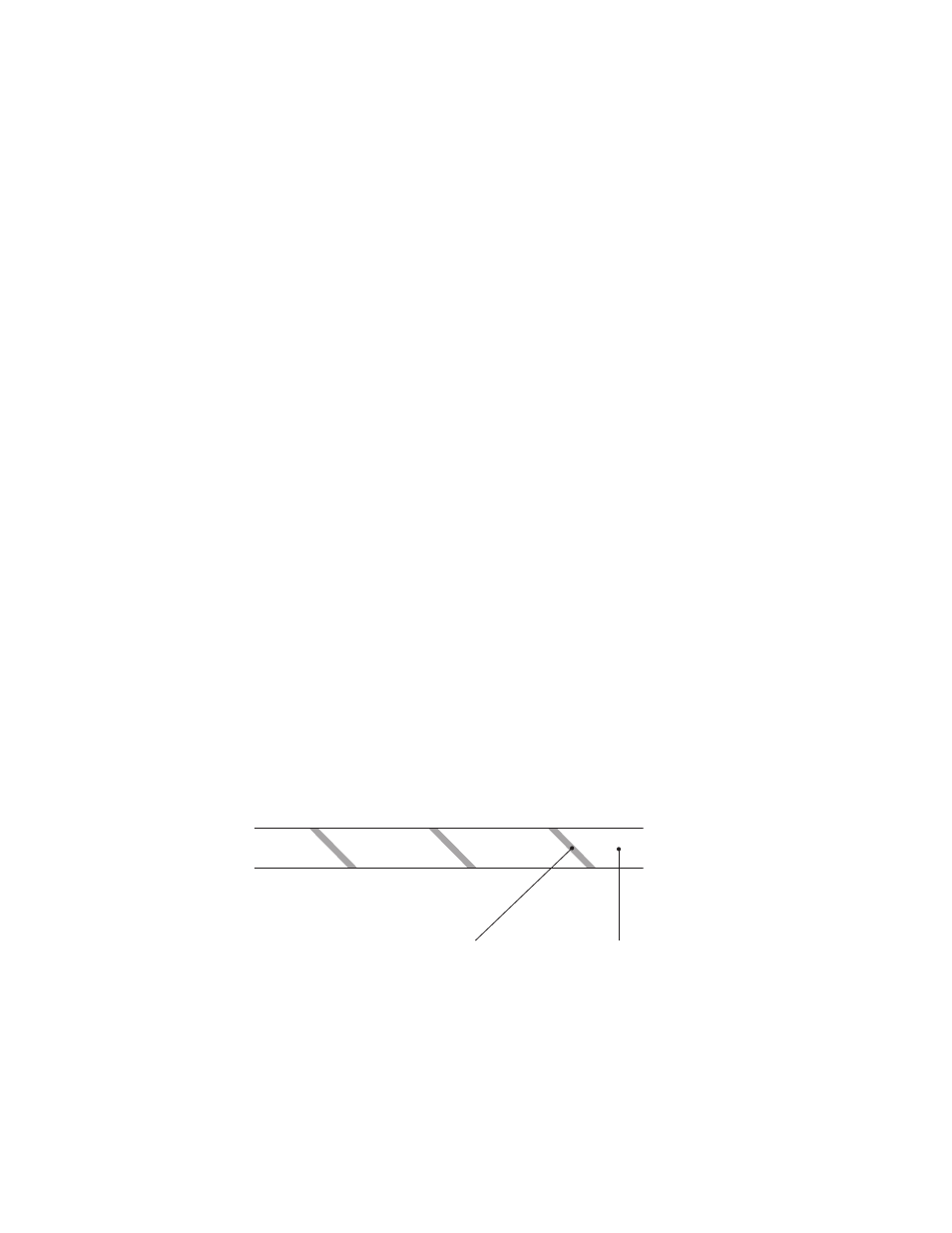

Note 1: If the right-hand side alphanumeric is not 0, that particular wire has a spiral color code.
The left-hand side character shows the base color and the right-hand side one, the spiral
color.
Note 2: The character following the wire color code indicates the size of the wire.
U:
AWG16
K:
AWG18
L:
AWG20
None:
AWG22
RED
WHITE
