16 735i TREADMILL
ASSEMBLY – PLEASE READ ALL STEPS BEFORE BEGINNING YOUR WORK.

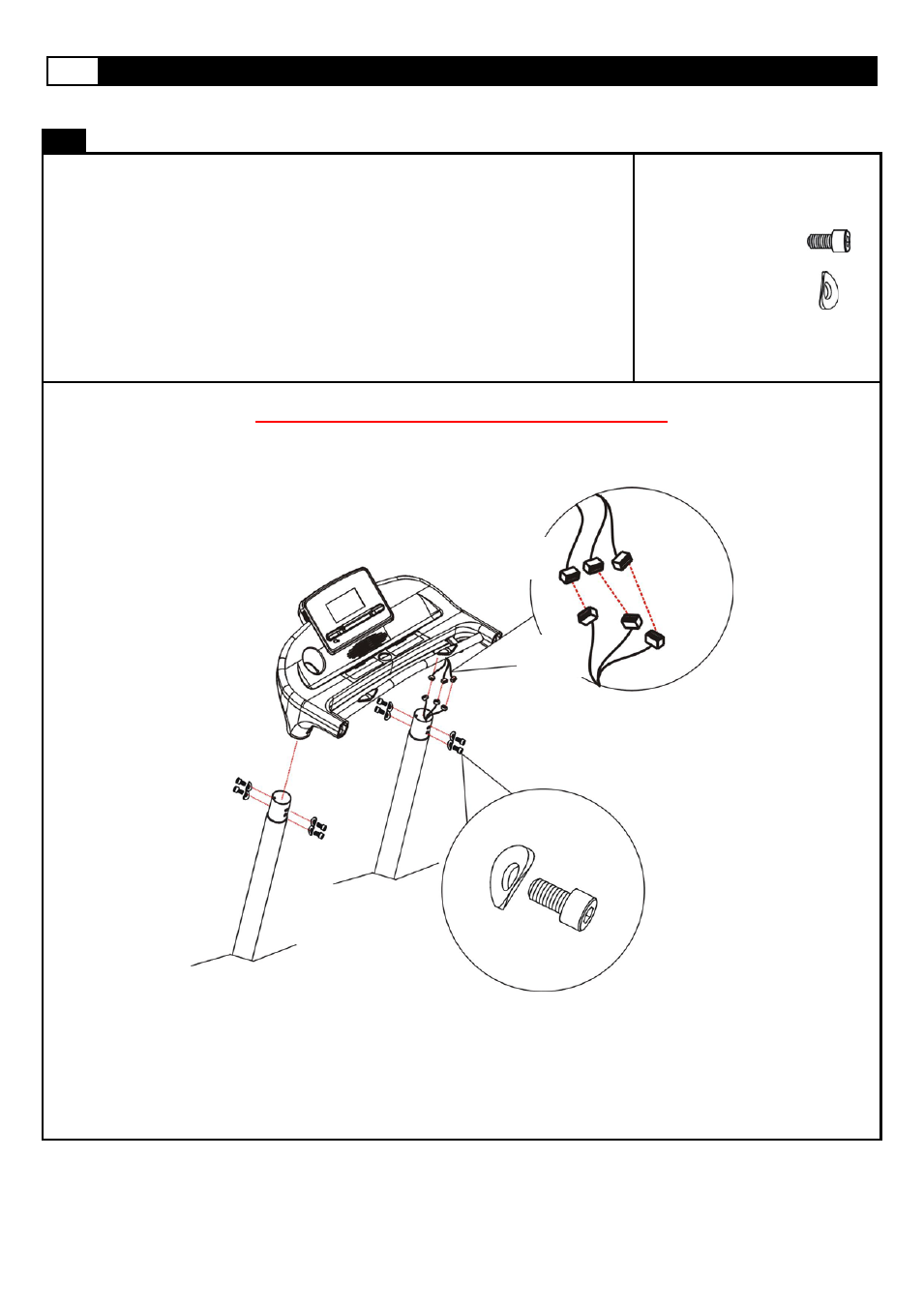

STEP 2: Attach Console to Left and Right Uprights
1). Connect the Upper Console Wire (229) from the console set to Lower Console
Wire (151) and Adaptor Wire (244 to 154) in the right upright, Then place the
excess wire and the connectors into right upright.
2). Place the entire console set onto the uprights, and secure the left side using 4 x
M8x15mm Bolt (303) with 4 x M8 Curve Washer (304).
3). Repeat the above process for the Right side.
4). Fully tighten all bolts from step 1 and step 2.
303 X8
304 X8
Caution Pinch point! Do not pinch wires between frame.
229
151
303
304
244
154
