© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5 201471
IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subject to.
All hoses should be checked on a monthly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
Step 4: Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by unhooking the hose from the
retainer clamp.
Install the drain hose into the drain receptacle
(standpipe, wall or laundry tub) following the
instructions below.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-1/4 inch (32 cm) outside
diameter drain hose.
Standpipe Installation:
Place the adapter into the standpipe.
The recommended height for the standpipe is
36 inches (91.44 cm). Standpipes higher than 4 feet
(122 cm) are not recommended.
Remove the beaded strap from accessories bag and
place around standpipe and drain hose, approximately
12 inches (30 cm) down from the top of pipe and
tighten strap to hold hose to standpipe. Refer to Figure
7. This will prevent the drain hose from dislodging
from drain receptacle during use.
IMPORTANT: To prevent siphoning, do not place
any ribbed portion of the drain hose into the
standpipe.

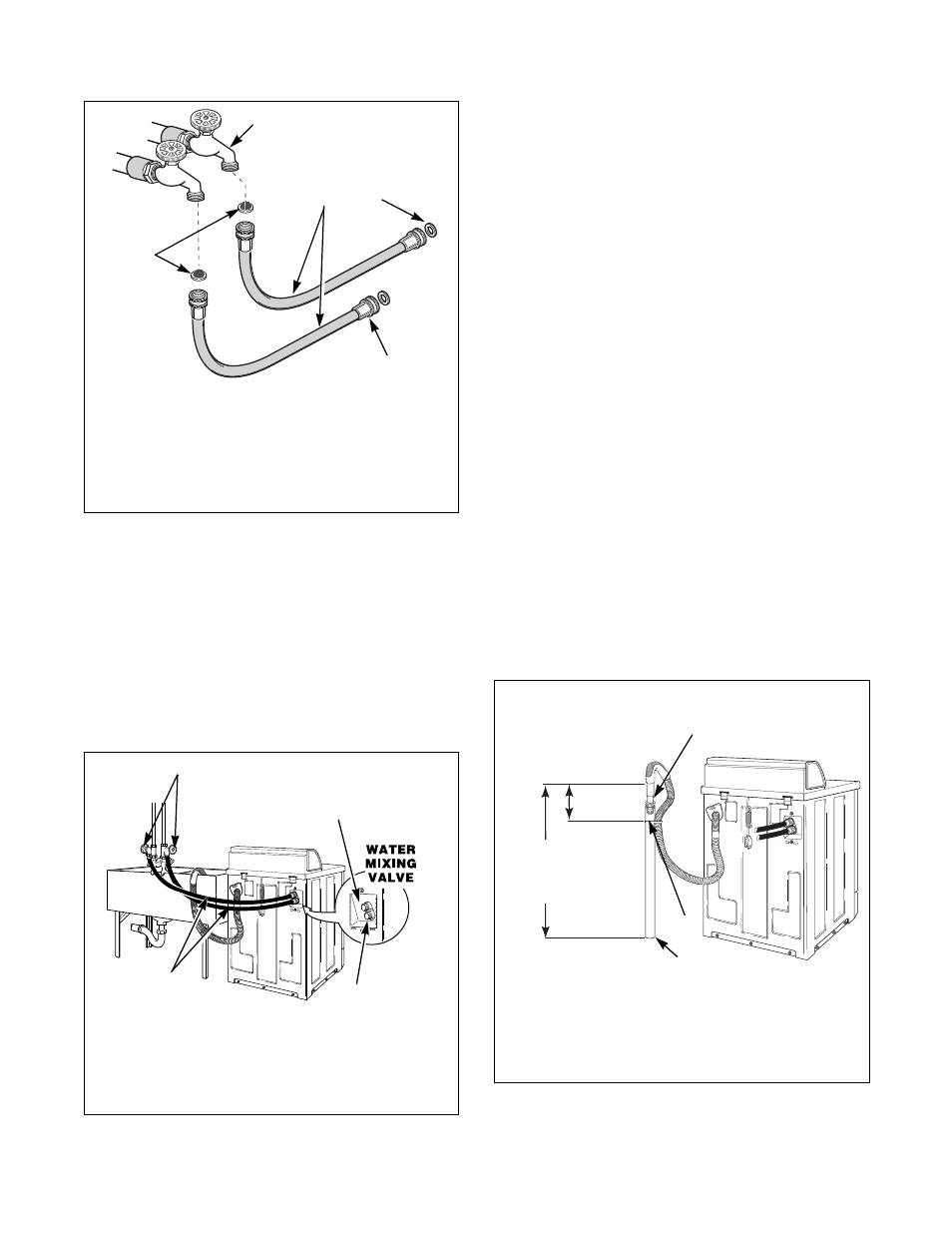

TLW1976N
1 Water Faucet
2 Fill Hoses
3 Plain Rubber Washer
4 Hose Coupling
5 Filter Screens
Figure 5
W516I
1 Water Faucets
2 Cold Water Connection
3 Hot Water Connection
4 Fill Hoses
Figure 6
HOT
COLD
3
1
5
2
4
C
H
1
2
3
4
TLW1981N
1 Standpipe Adapter
2 Beaded Strap
3 Standpipe - 2 in. (5.08 cm) or 1-1/2 in. (4 cm)
Diameter
Figure 7
1
2
3
12 in.
(30.49 cm)
36 in.
(91.44 cm)
Recommended
Height
