© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 201471 2

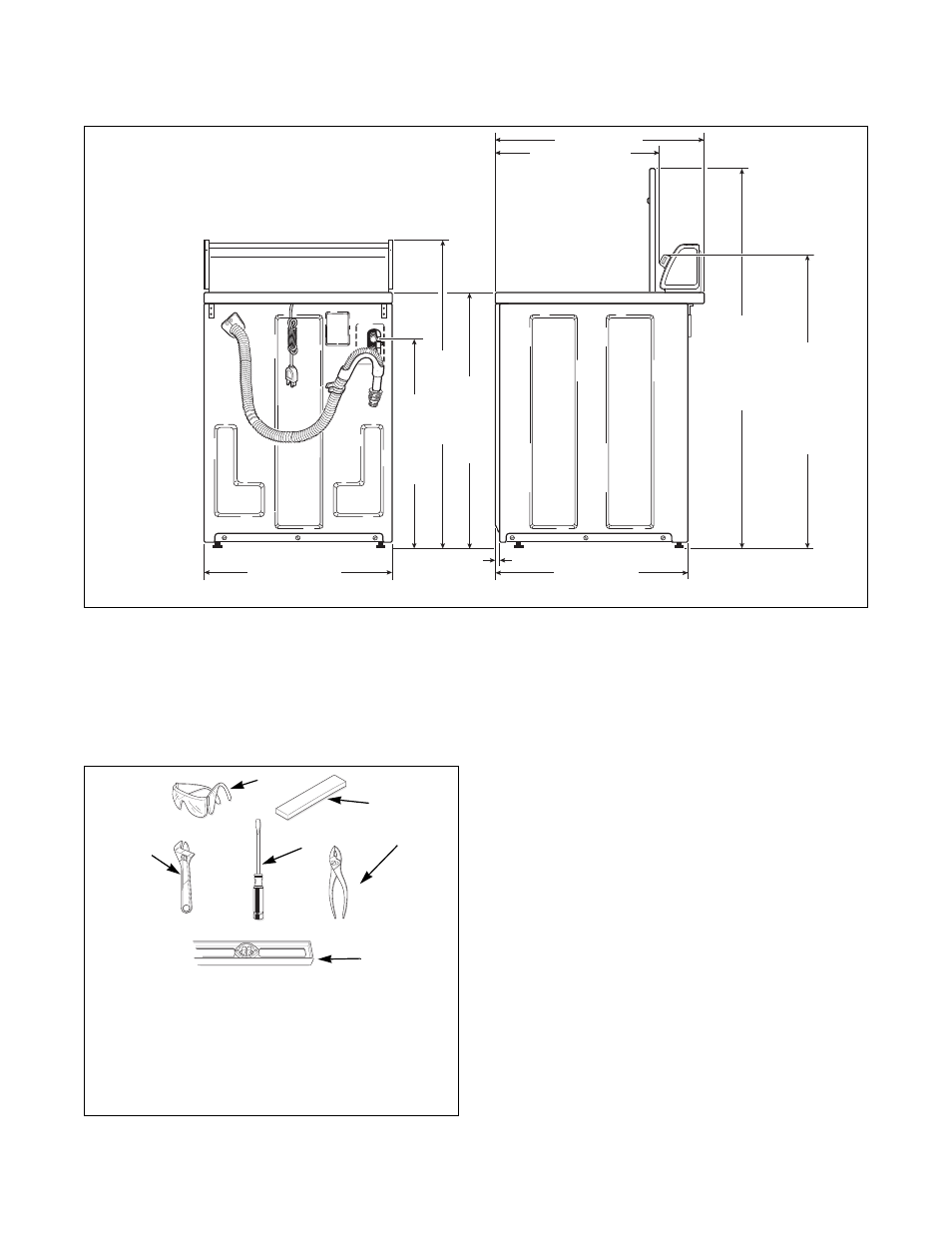

Washer Dimensions
Before You Start
Supplies
For most installations, the basic supplies you will need
are:
Parts Included
An accessories bag has been shipped inside your
washer. It includes:
• Two fill hoses with washers and filter screens.
Refer to step 3 of Installation.
• Four rubber feet. Refer to step 5 of Installation.
• Beaded strap. Refer to step 4 of Installation.
• Installation Instructions.
• User’s Guide.
• Warranty Bond.
NOTE: If the washer is delivered on a cold day
(below freezing), or is stored in an unheated room
or area during the cold months, do not attempt to
operate it until the washer has had a chance to
warm up.
NOTE: Install dryer before washer. This allows
room for attaching exhaust duct.
*With leveling legs turned into base. TLW2075N
Figure 1
28 in. (71.1 cm)
*5
3 in
.
(1
34
.6
cm
)
0.4 in.
(10.2 mm) 26 in. (66 cm) 25.625 in. (65 cm)
*29 in.
(
73.
7 cm)
*43 in.
(109.
2 cm
)
*36 i
n
. (91.
4 cm)
22.13 in. (56.2 cm)
*4
0.
2
5 in
.
(1
02
.2
cm
)
TLW1978N
1 Safety Glasses
2 Wood Block
3 Wrench
4 Screwdriver
5 Pliers
6 Level
Figure 2
1
2
5
6
4
3
