Positive-grounded system, Negative-grounded system (standard) – Schumacher SI263 User Manual
Page 17
6. Clean and store the Battery Manager in a dry location.
Positive-Grounded System
1. To connect to a positive-grounded system, attach the black
NEGATIVE
output clamp to the NEGATIVE post of the
battery. Twist the clamp back and forth to ensure a solid
electrical connection is made.
2. Connect the red POSITIVE output clamp to a heavy, unpaint-
ed metal part of the chassis or engine block, away from the
battery. DO NOT connect to the positive battery post, carbu-
retor, and fuel line or sheet metal part.

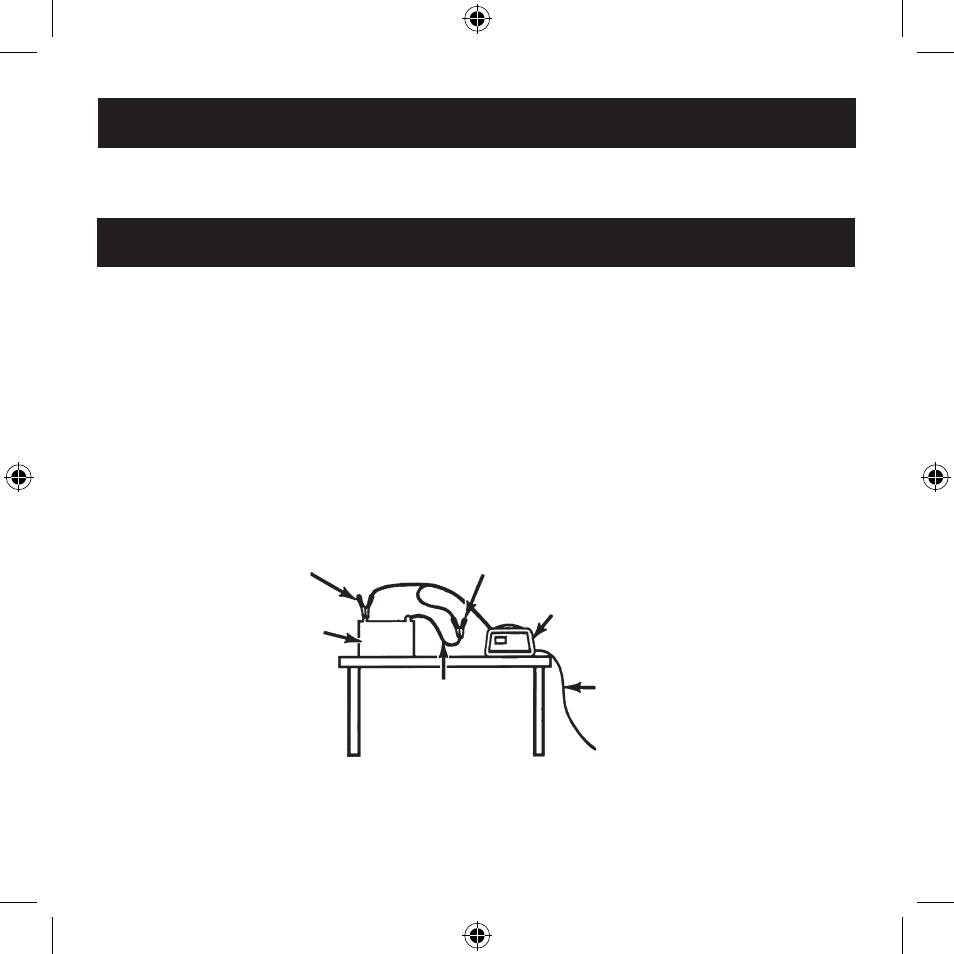

POSITIVE
NEGATIVE
BATTERY CHARGER
BATTERY
24", 6 GAUGE
CABLE
POWER
CORD
TO
GROUNDED
POWER
OUTLET
Negative-Grounded System (Standard)
17
17
SI263 IM 0205v1.indd 17
3/2/05 4:41:08 PM
