ASSEMBLY
Place all parts of the PROFORM
¨
990S in a cleared area and remove the packing materials. Do not dispose of
the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench .
36
36
1
2
1

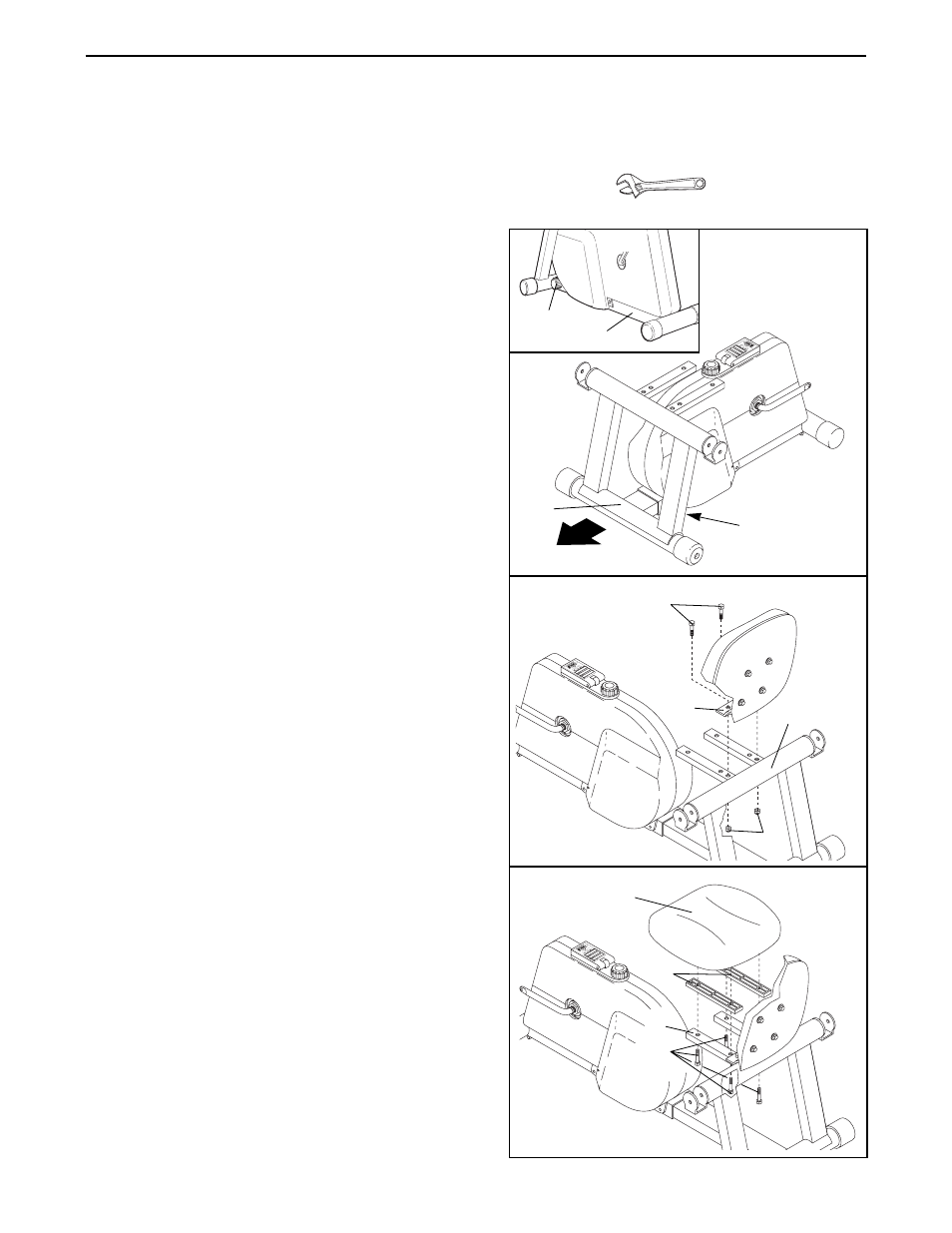

1. Refer to the inset drawing. Loosen the Lock Knob (36)
on the right side of the Frame (1).
Slide the Seat Frame (2) out until it stops. Retighten
the Lock Knob (36).
2. Attach the Seat Bracket (58) to the Seat Frame (2)
with the two Seat Bracket Bolts (59) and 3/8Ó Nylon
Locknuts (37).
3. Set the two Seat Spacers (46) on the Seat Frame (2).
Attach the Seat (53) and the Seat Spacers to the Seat
Frame with the four Seat Screws (55).
2
58
2
59
37
3
53
46
2
55
