9

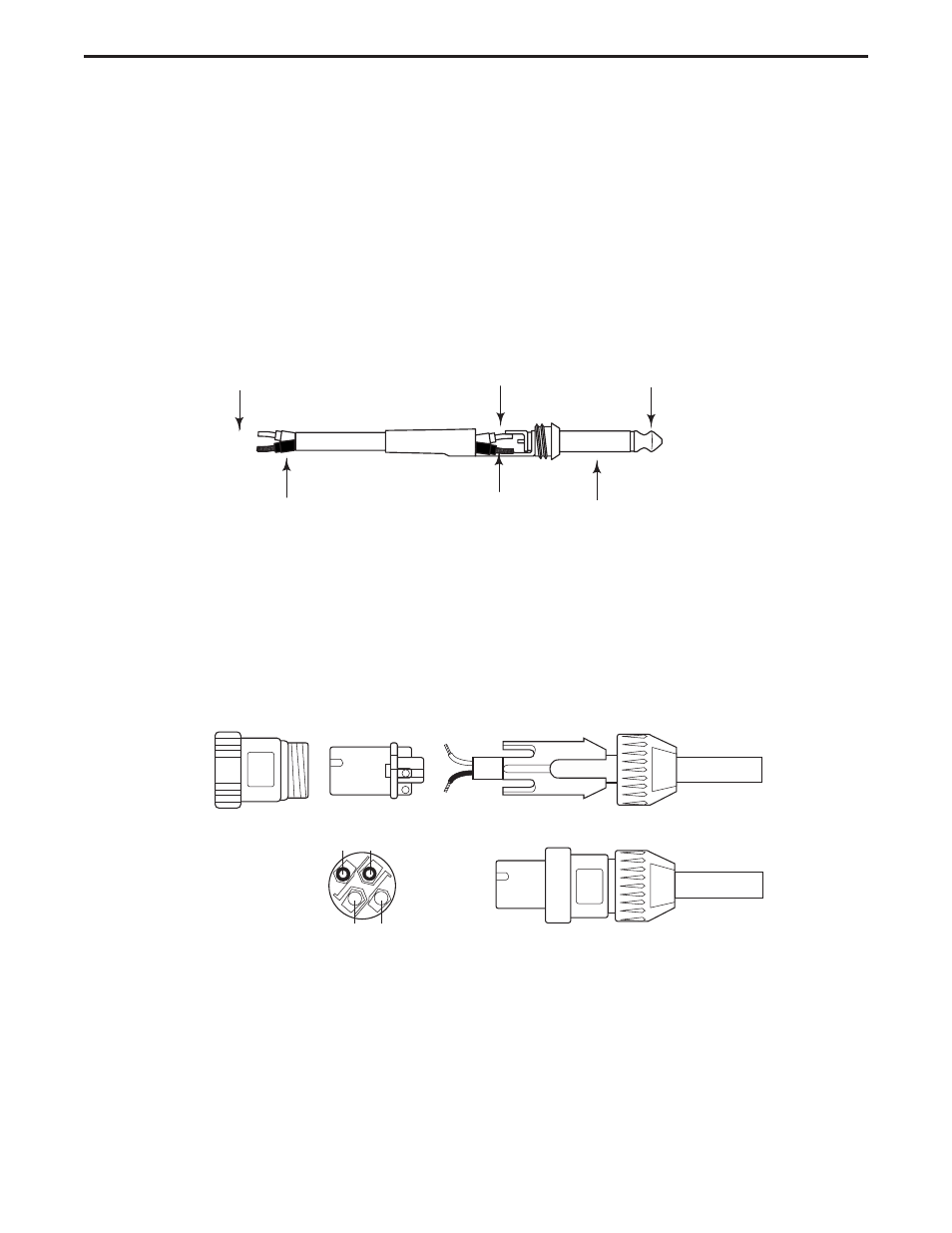

RESOUND Wiring Guide
Tip (signal)
Signal
Signal
Sleeve (ground)
Ground
Ground
SPEAKON™
SPEAKON™
+
-
1-
1+
2+
2-
NOT CONNECTED
Unbalanced 1/4” Connector
Speakon Wiring Guide
The Resound provides both Speakon and 1/4” phone connectors for easy interface with industry standard
cables. You can use a variety of standard speaker cables that are available “off the shelf” at your local pro-audio
or musical instrument retailer. Be sure that cables use standard, stranded speaker wire. A 12-14 gauge is recom-
mended. If you are making your own cables, use the diagrams following below to ensure a proper hook up.
