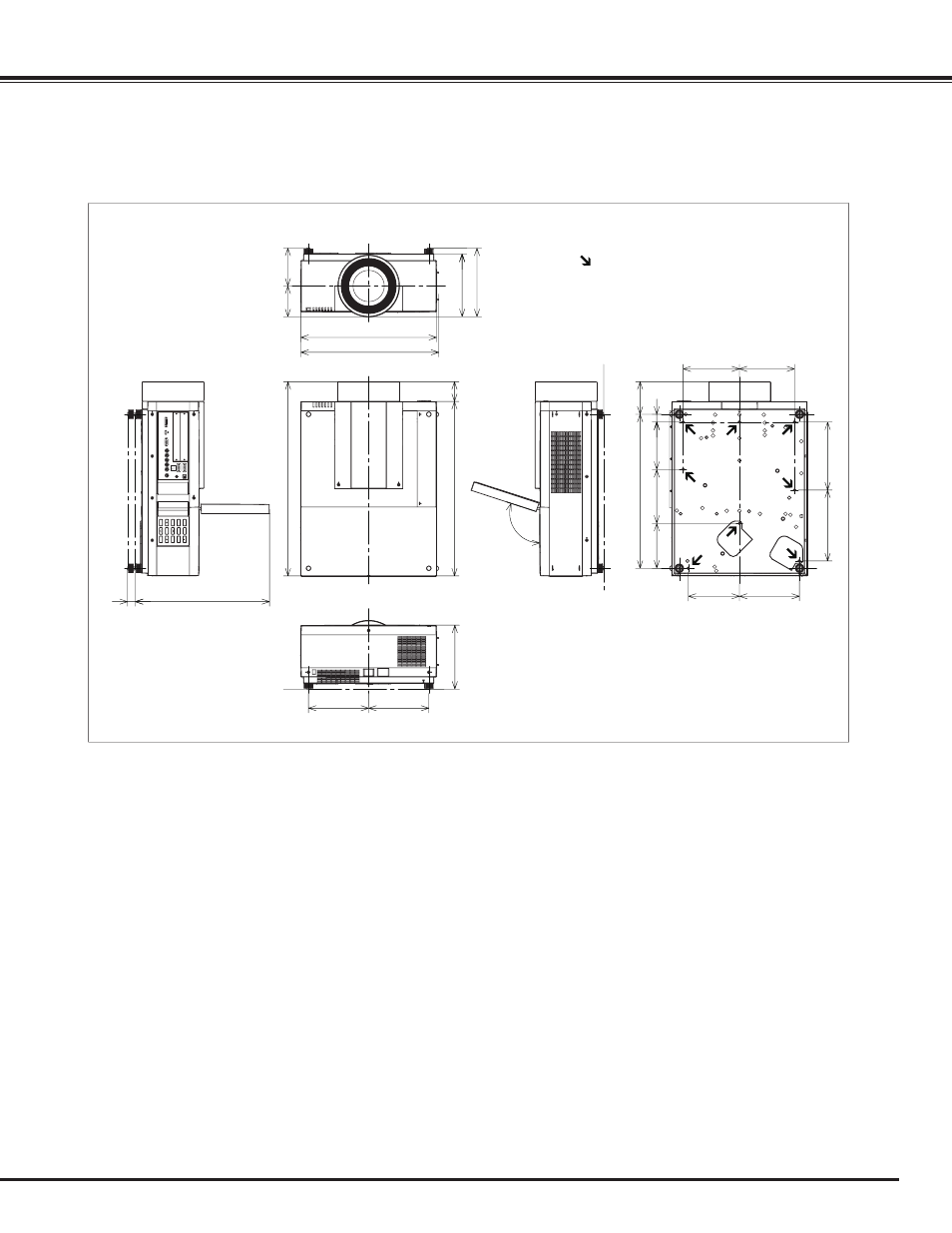

Dimensions
Appendix
Unit: inch (mm)
5.81(147.5)
20.87(530)
21.20(538.5)
20.65(524.5)
108
Ň
8.66(220) 8.46(215)
1.18(30)
7.28(185)
23.62(600)
200.0 234.0
26.77(680)
3.03(77)
9.25(235) 9.25(235)
29.80(757.0)
5.00(127)
9.63(244.5) 10.55(268.0)
1.14(29)
9.82(249.5
)
10.43(265)
10.89(276.5)
4.74(120.5)
8.27(210)
6.89(175)
Screw Holes for Ceiling Mount
Screw: M8
Depth: 0.393 (10.0)
