13 GB

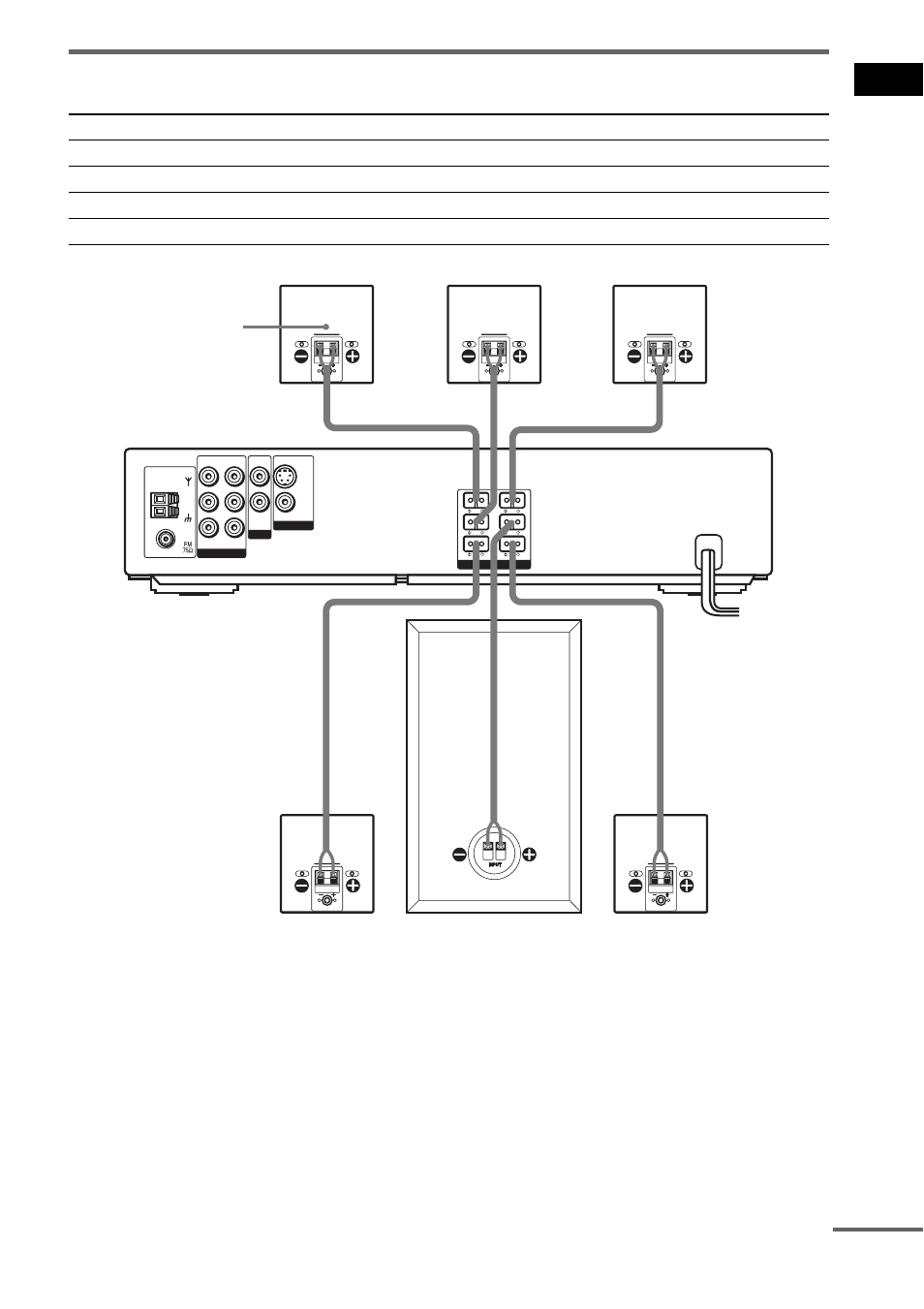

Terminals for connecting the speakers
Note on placing speakers
Use caution when placing the subwoofer or a speaker stand (not supplied) that is attached with the
front/surround speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or
discoloration may result.
Connect To the
Front speaker SPEAKER FRONT L (white) and R (red) jacks
Surround speaker SPEAKER SURR L (blue) and R (grey) jacks
Center speaker SPEAKER CENTER (green) jack
Subwoofer SPEAKER WOOFER (purple) jack
COAXIAL
AM
FRONT R FRONT L
WOOFER CENTER
SURR L SURR R
SPEAKER
S VIDEO
(DVD ONLY)
VIDEO
AUDIO IN MONITOR OUT
TV
R
L
V I D E O
VIDEO OUT
AUDIO OUT
VIDEO/SAT
IN
AUDIO IN
L
R
Front speaker (R) Center speaker Front speaker (L)
colour label
Surround speaker (R) Subwoofer Surround speaker (L)
continued
