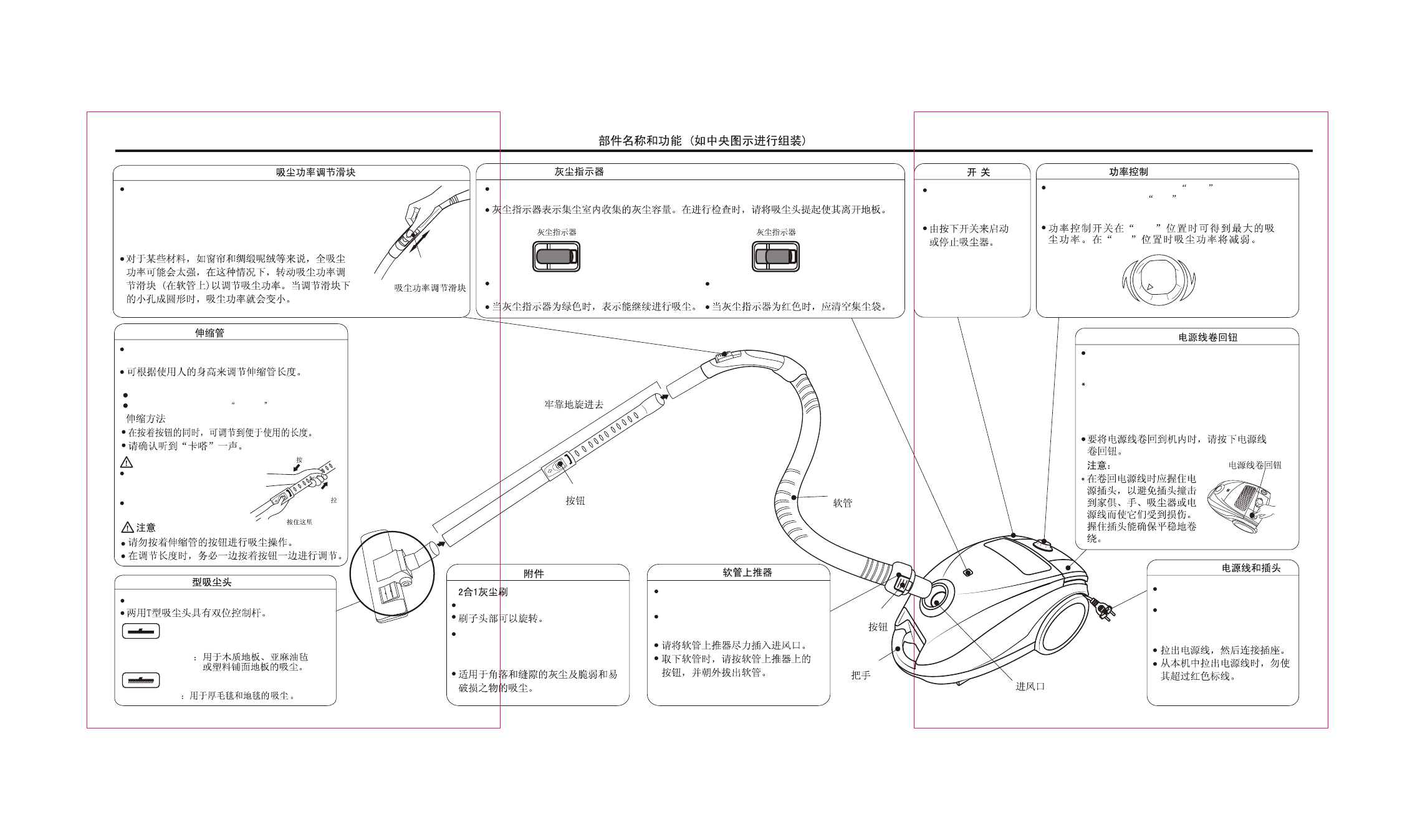

NAME AND FUNCTION OF PARTS (Assemble as indicated in the center illustration.) /
The full vacuum power of the cleaner may be too strong in
certain cases, for instance when vacuuming curtains and
draperies. In these cases, turn the vacuum power
adjustment ring (on the hose) to control the vacuum
power. Match the hole in the ring to "circle" shape
to reduce the power.
Vacuum Power Adjustment Ring /
Vacuum power
adjustment ring
Extension Pipe/
The pipe is adjustable according to the height of
the user.
Cord Rewind Button /
To pull the cord back into the unit, press the cord
rewind button.
Caution:
Hold the plug when rewinding the cord so
that the plug does not damage furniture,
hands, the vacuum cleaner or the cord by
hitting them. Holding the plug will make
rewinding smoother.
Cord rewind button
Press here
Pull
Push
The two-way floor nozzle has lever with two positions.
FLOOR:
For vacuuming wooden floors, linoleum
or plastic covered floors.
RUG:
For vacuuming rugs and carpets.
Floor Nozzle / T
FLOOR
RUG
Switch /
Start or stop vacuum
cleaner by pushing on
the switch.
Hose Stopper/ Attachments /
The head of the brush can rotate.
For vacuuming edges and gaps,and for
vacuuming fragile or easily scratched
items.
Dust Indicator /
The dust indicator shows the amount of dust that has been collected in the dust compartment. Hold the
floor nozzle away from the floor, while operating to check.
DUST INDICATOR DUST INDICATOR
When "Dust Indicator" indicates "Red", dust
compartment should be emptied. When "Dust Indicator" indicates "Green",vacuuming
can continue.
Hose
Air inlet
Handle
Button
Insert securely by turning
Button
(How to expand / contract the pipe)
Adjust the length of the pipe while pushing the button in.
Make sure that you hear a clicking sound.
< >
Caution
Please do not place your hand on
the expansion pipe buttons
durings operation.
Please do push the button in when
adjusting the length.
Power Control /
Set the POWER CONTROL to MAX for maximum
suction. In the position MIN the suction power is
decreased.
Max
Min
Min Min Max Max
Pull out the cord and connect
the wall outlet.
Do not extend the cord from
the unit beyond the red marker
line.
Cord and Plug /
Insert the hose stopper all the way up
to the air inlet.
To detach it, press button on the hose
stopper and pull the hose toward you.
