SPEAKER 1
SPEAKER 2
120 VAC in
VGA Output
to Jamma Interface
*12V Output
(RED)
*Logic Ground
(WHITE)
*5V Output
(YELLOW)
3
2 1
5k pot
5k pot
(sound)
(sound)
1=WHITE/RED
2=GREEN/RED
3=YELLOW/RED
*(USED FOR METER, COINDOOR, LIGHTS, ETC.)
GAME BD MLB NAO
840-0003D-01
SW REGU FOR JVS
400-5397
POWER AMP 2 CH
838-13616
XFMR 120V 17v2Ax2
560-5407
I/O Board
838-13683

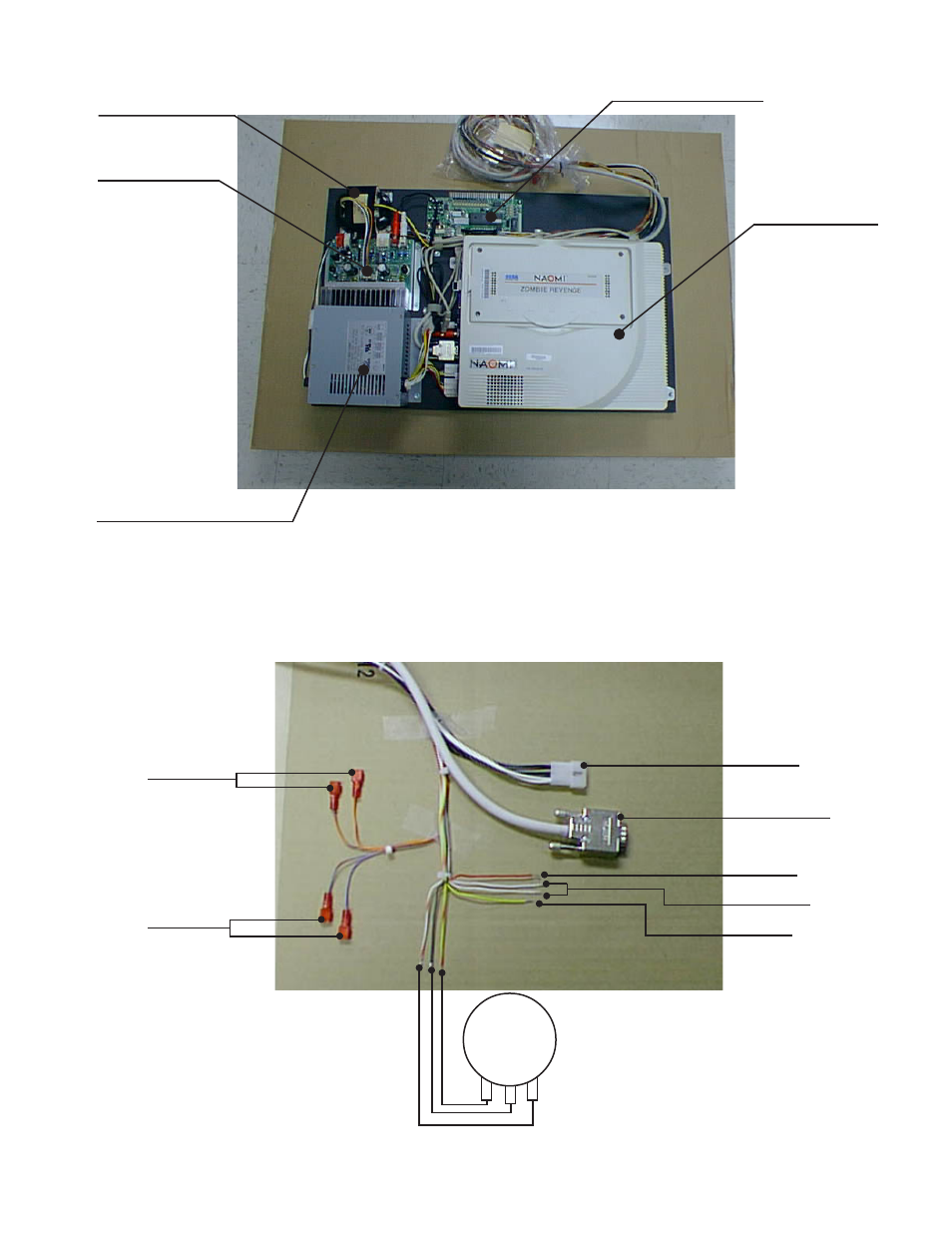

CONTENTS OF WIRING BAG SEEN ABOVE
