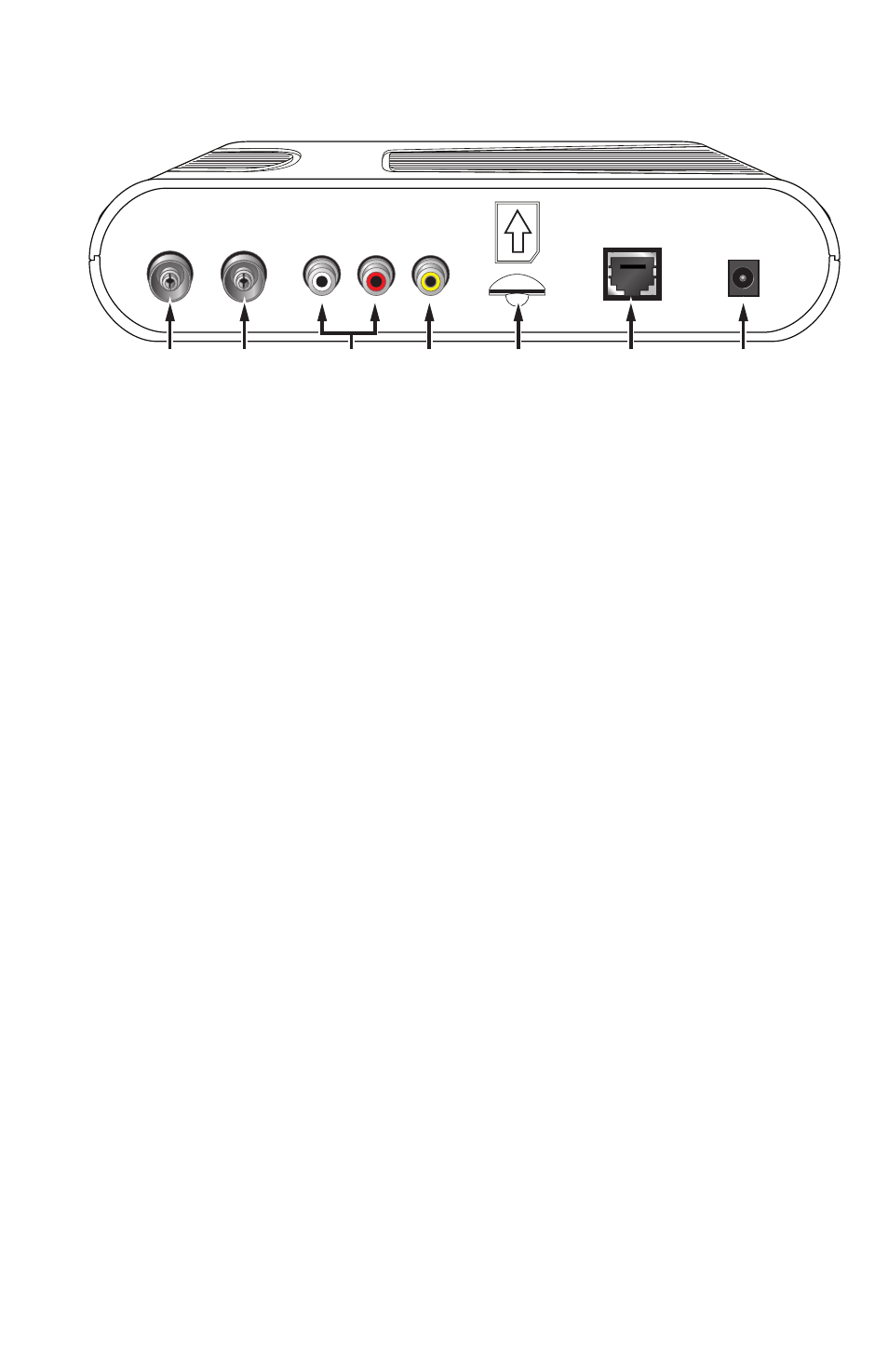

What’s on the Back Panel?

1 Cable

In

Connects to the cable that delivers the signal from

your service provider

2 TV Out

Provides an RF output. Connects to TV

3 Audio Out L/R

Connects to left/right audio of TV

4 Video Out

Connects to video input of TV

5 SIM Card Reader

Reserved for future use

6 Ethernet

Connects to Ethernet-equipped device

(Available on Z70 models)

7 DC 12V IN

Connects to an external power supply

DC 12V IN

Video Out

Audio Out

L

R

TV Out

Cable In

Ethernet

1

2

4

5

6

7

3

T12719
