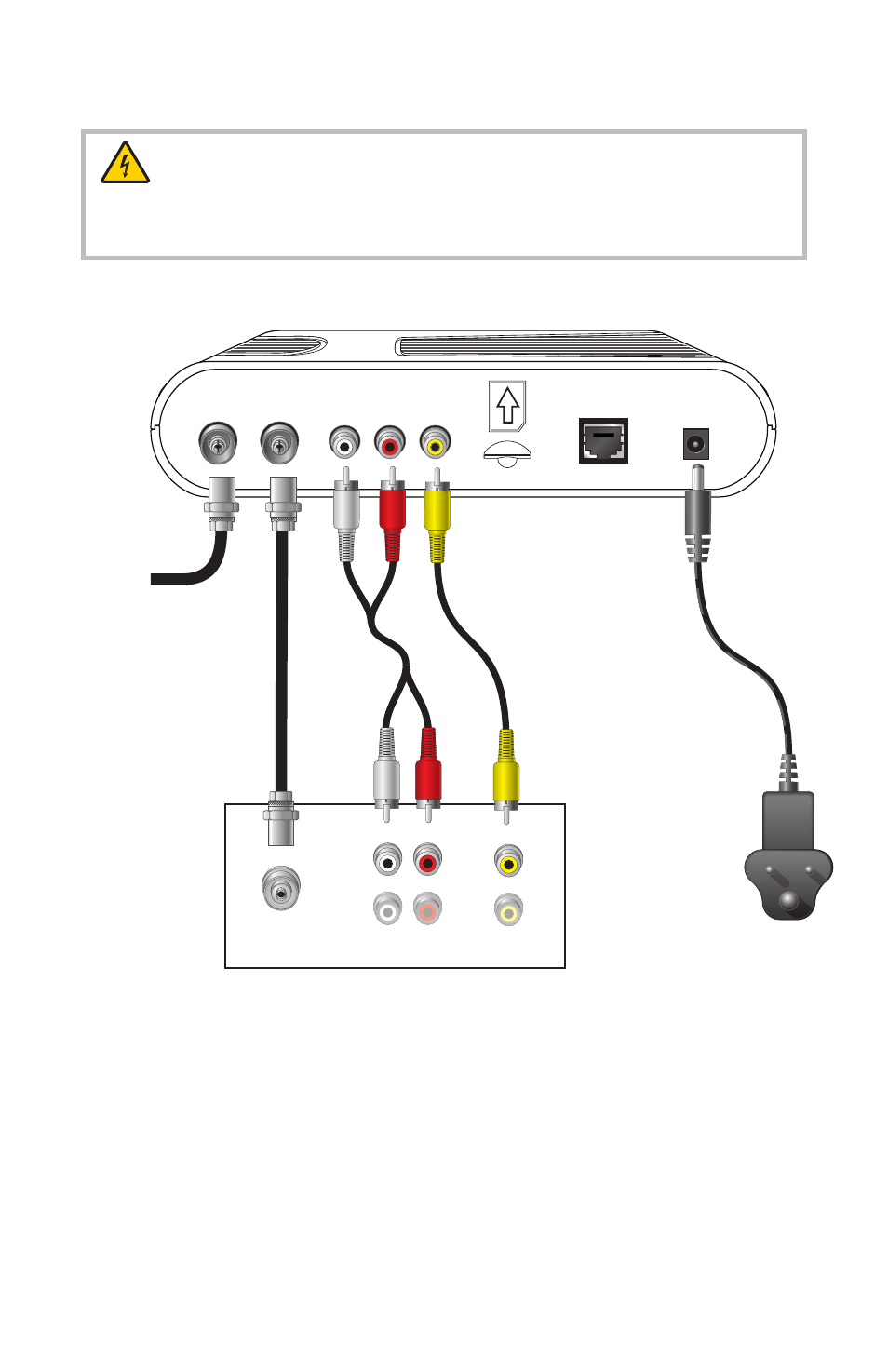

Connecting to a TV
DC 12V IN
Video Out
Audio Out
L
R
TV Out
Cable In
Ethernet
T12720
Back of Z70DVB
To Power
Receptacle
Cable
Input
Back of TV
R
L
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
CABLE IN
AUDIO
OUT
VIDEO
OUT
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the set-top.
