12 GB
Getting
Star
ted – B
A
SIC
–
This hookup is the basic connection of the system to the speakers and TV. For other TV connections,
see page 24. For other component connection, see page 27.
To accept progressive signals, see page 25.

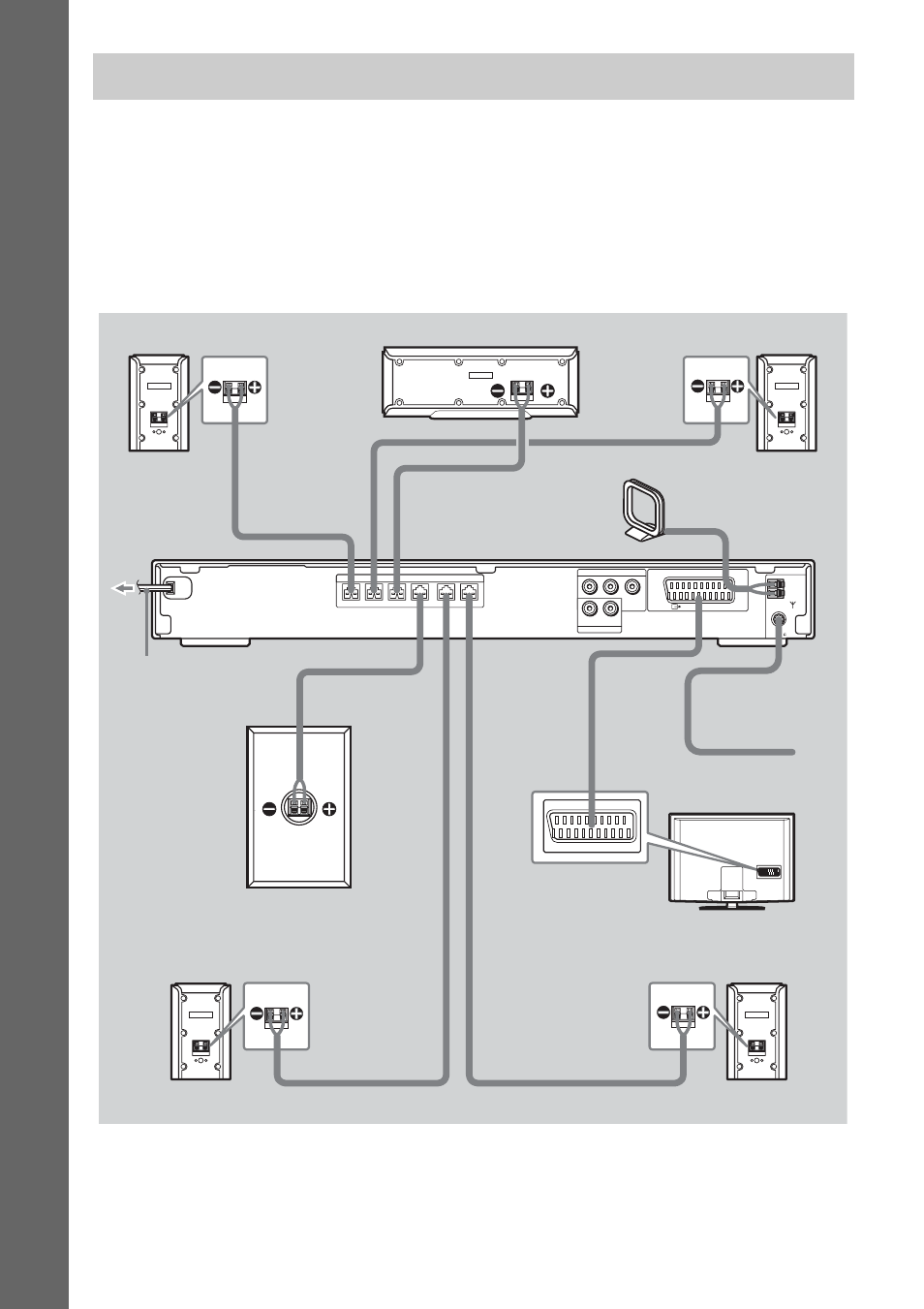

Refer to the connection diagram below, and read the additional information from 1 to 4 on the
following pages.
DAV-DZ110
Step 2: Connecting the System and TV
COAXIAL
AM
FM 75
SPEAKER
EURO AV
FRONT R FRONT L SUR R SUR L CENTER WOOFER OUTPUT(TO TV)
COMPONENT VIDEO OUT
Y P B /C B P R /C R
(DVD ONLY)
R L AUDIO IN
LINE
AM loop antenna (aerial)
Subwoofer
AC power cord (mains lead)
FM wire antenna
(aerial)
TV
Front speaker (R)
Center speaker Front speaker (L)
Surround speaker (R) Surround speaker (L)
