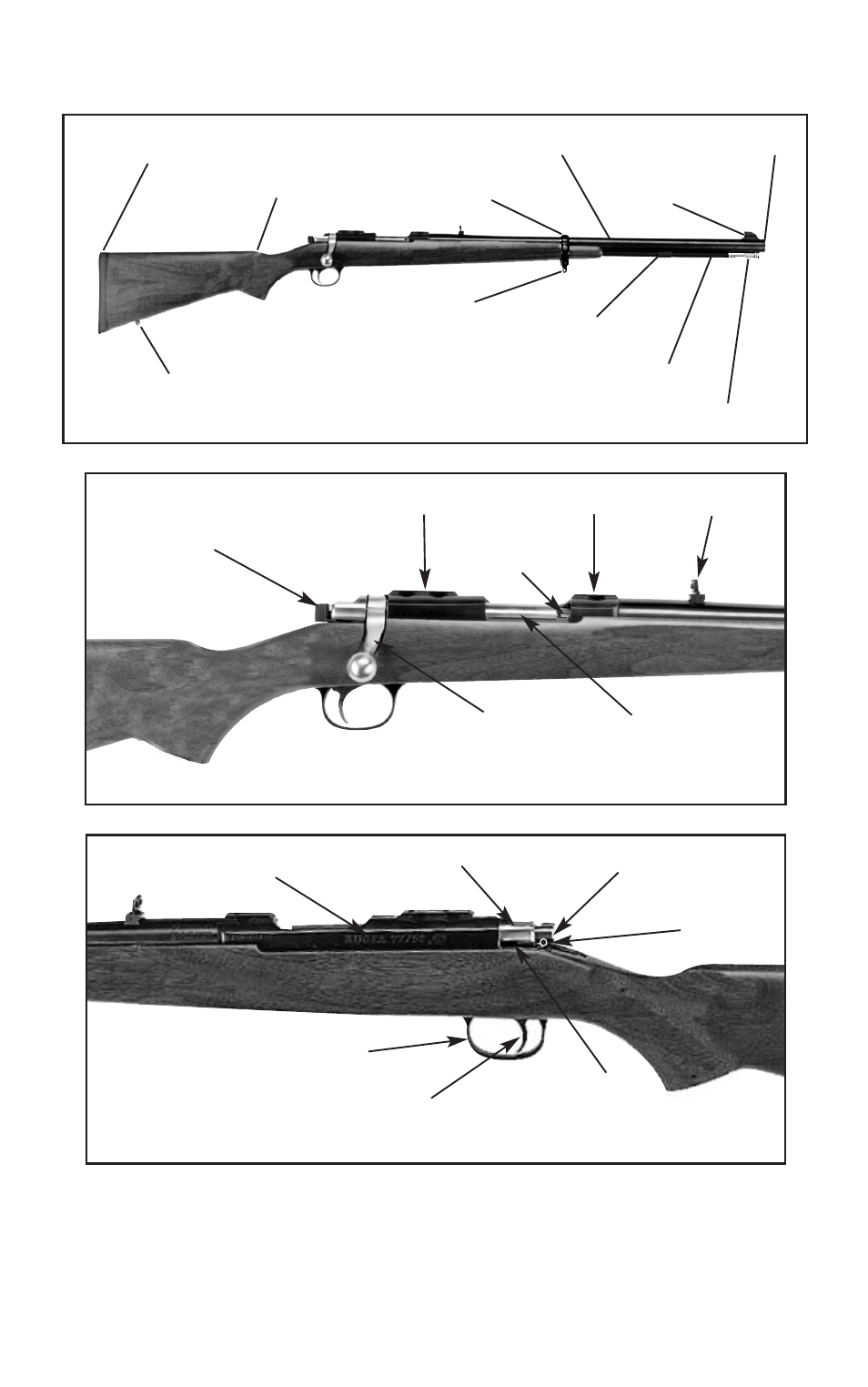

Figure 1. Components frequently referred to are identified. In these photographs the cocking piece is
shown cocked (protruding from the rear of the bolt sleeve) revealing the disassembly hole in the lower
portion of the cocked piece. The bolt stop (on the left side of the receiver) permits the bolt to be
withdrawn simply by pressing down lightly with the thumbnail.
The safety selector (show in the “Safe”
position) should be in the “Load-Unload” position when the bolt is being removed or being installed.
NOMENCLATURE
5
Ramrod
Front Sight
Rear Sling
Swivel
Rear Sight
Bolt Handle
Bolt Stop
Trigger
Trigger Guard
Striker/Cocking Piece
Disassembly Hole
Receiver
Bolt Sleeve
Safety
(Shown “ON”)
Bolt
Scope Mount Bases
Nipple
Front Sling
Swivel
Ramrod
Thimble
Stock
Ramrod Tip
Barrel Band
Recoil Pad
Muzzle Barrel
