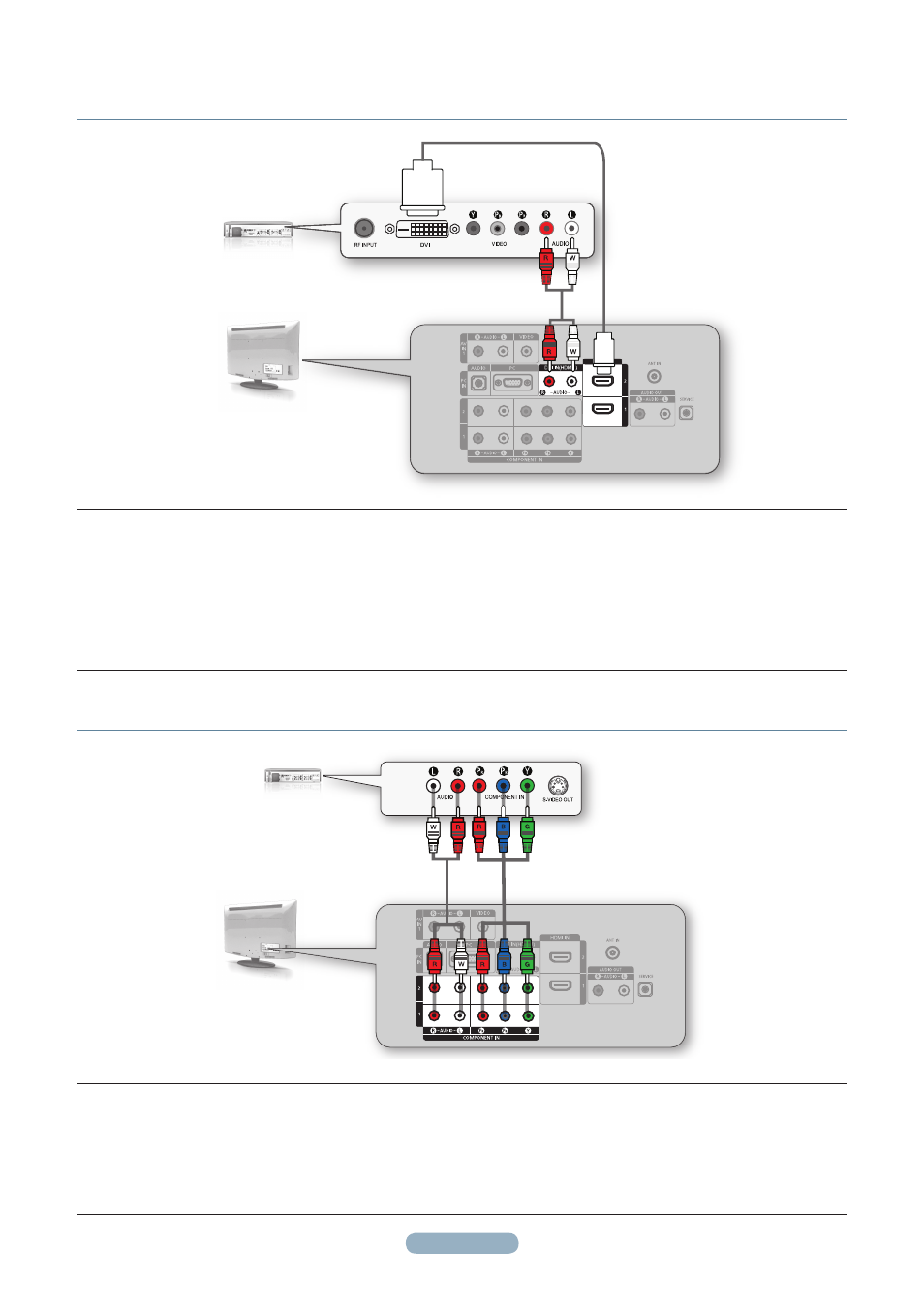

CONNECTINg A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA DVI
CABLE BOX/SATELLITE
RECEIVER(SET-TOP BOX)
REAR PANEL
TV REAR PANEL
2
.
Connect an HDMI Cable(Not supplied) between the
HDMI IN 2 jack on the TV and the HDMI jack on the Cable
Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables(Not supplied) between the
DVI IN (HDMI 2) [R-AUDIO-L] jack on the TV and the Cable
Box/Satellite receiver (Set-Top Box).
When using an HDMI/DVI cable(Not supplied) connection, you must use the
HDMI IN2 jack.
N
CONNECTINg A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA COMPONENT CABLES
TV REAR PANEL
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
2
.
Connect a Component Cable(Not supplied) between the
COMPONENT IN ( or 2) [Y, P
B
, P
R
] jacks on the TV and
the COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables(Not supplied) between the
COMPONENT IN ( or 2) [R-AUDIO-L] jacks on the TV and the
AUDIO OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).
