Input and Output Connections
2
1
3
4
5
6
7
8
9
11
12
13
10
14
15
16
17
18
19
20
21
22
23
24
25
2
1
3
4
5
6
7
8
9
11
12
13
10
14
15
16
17
18
19
20
21
22
23
24
25

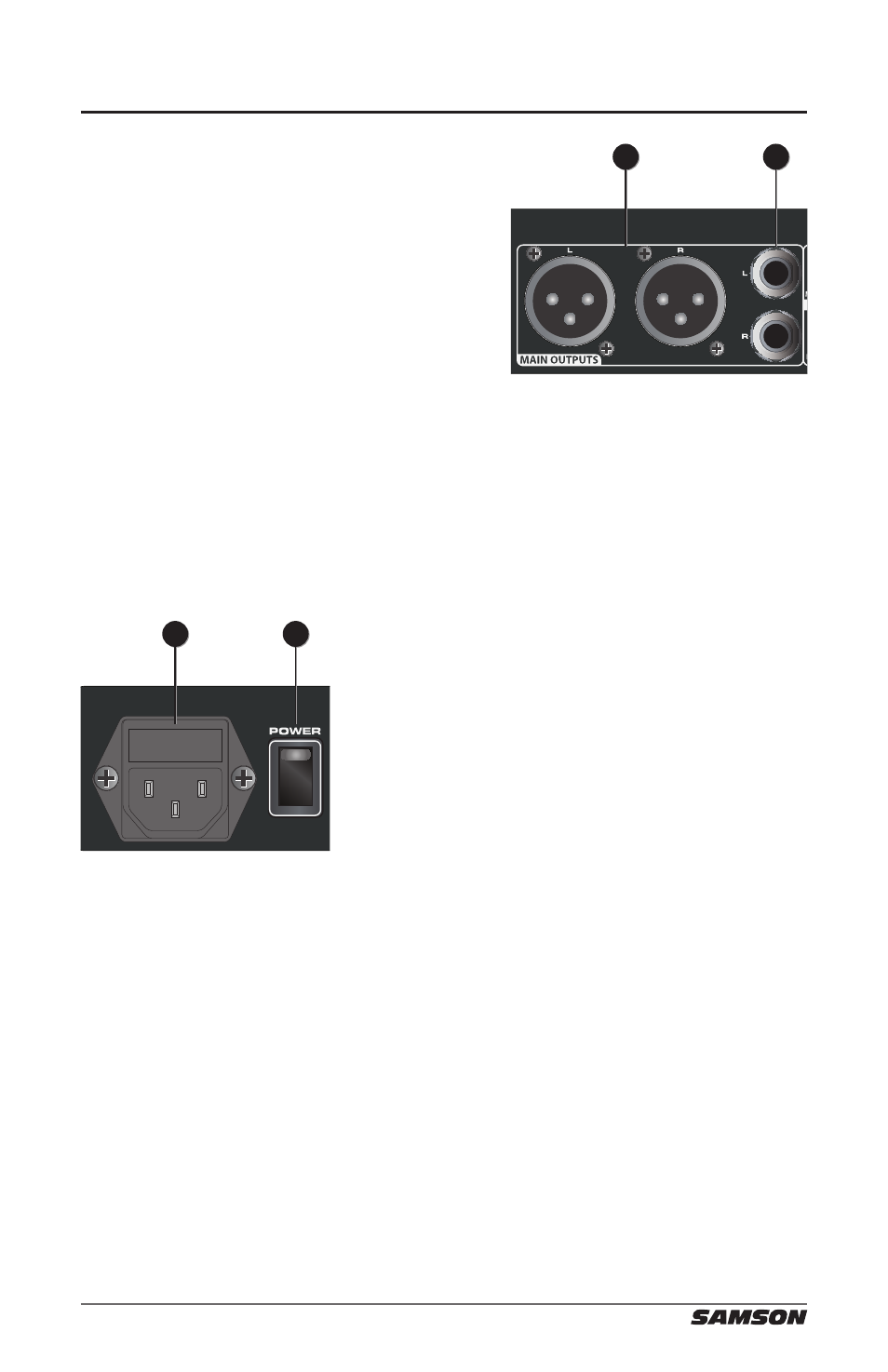

22. MAIN OUTPUTS 1/4-inch Jacks - In live
performance applications, these outputs
can be used to connect the SM10 to a
power amp and speakers. In recording
applications, these outputs are used
to connect to a stereo device such as
computer sound card, MP3, or hard disk
recorder. The signals at the Main Out-
puts jacks follow the Main Output level
controls.
23. MAIN OUTPUTS XLR Jacks - In live per-
formance applications, these male XLR outputs can be used to connect
the SM10 to a power amp and speakers. In recording applications, these
outputs can be used to connect to a stereo device such as computer
sound card, MP3, or hard disk recorder. The signal at the Main Outputs
jacks follow the Main Output level control.
24. Power Switch – Use this switch to turn the
SM10 on and off. To avoid potential damage
to your speakers, turn the SM10 on before you
turn on any connected power amps—and turn
it off after the power amps are turned off. The
switch should be in the off position when con-
necting the SM10 to the mains.
25. AC Inlet – Connect the supplied IEC cable
here.
