22

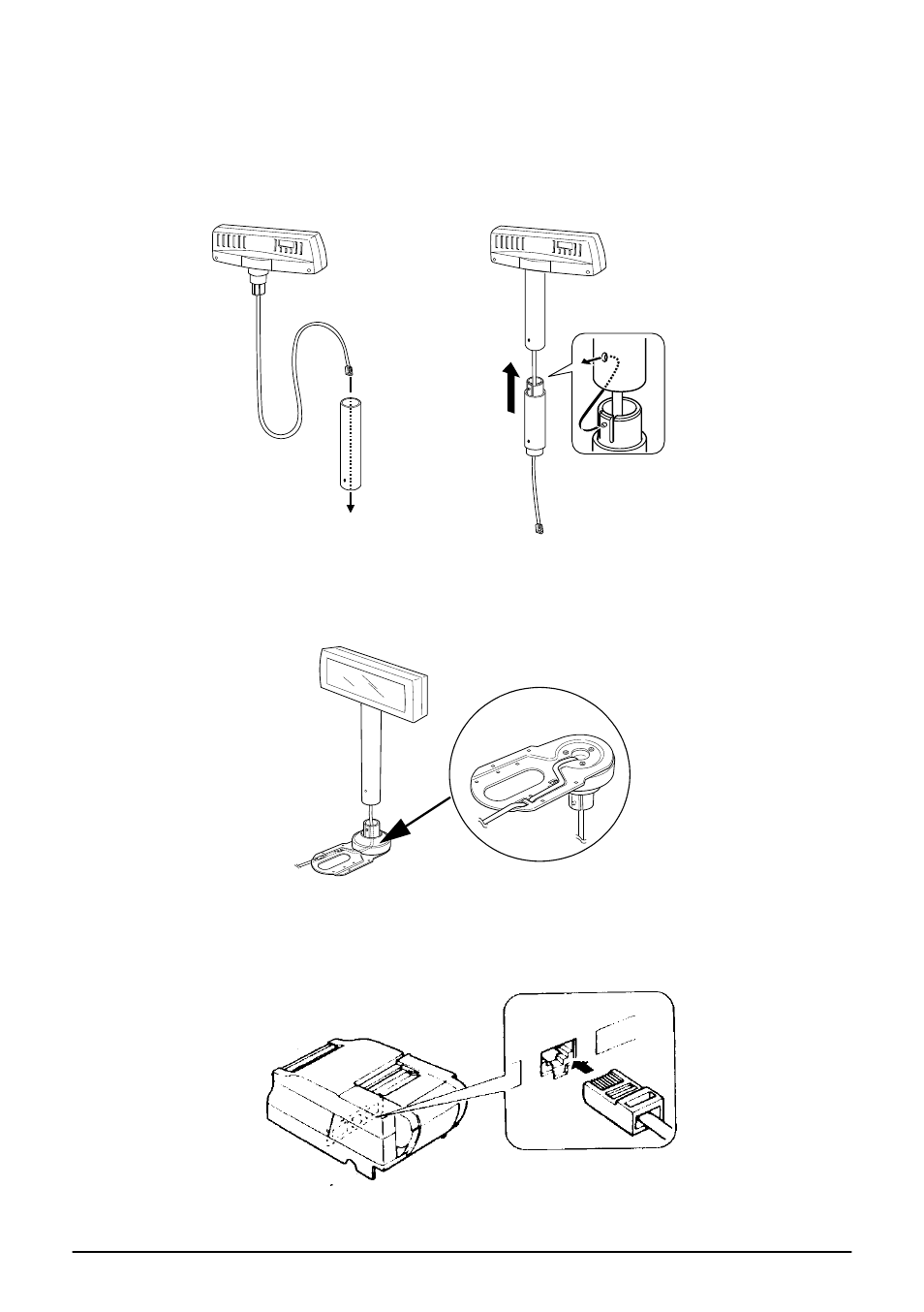

2. Pass the cable for the DM-D500 through support C, and attach
support C to the DM-D500.
When using support B for extension, insert the tab on support B
into the hole on support C until you feel it click.
3. Pass the cable for the DM-D500 through the hole on fixing
plate A, and fix the cable at the bottom as shown below.
4. Connect the cable for the DM-D500 to the DC connector on the
TM printer.
When using support B
for extension
