12 Stewart Filmscreen Corporation
Installing the wireless remote control option
The optional Stewart Filmscreen wireless remote control allows control of
the screens from anywhere in the room.
Once the AC power outlet is installed near the screen, an electrician is not
needed to connect the wireless remote receiver module to the power
source.
Note: The distance between the hand-held remote control and the receiver
can be up to 50 feet. It is not necessary to have uninterrupted line-of-sight
between the remote and the receiver, but there should be no metal objects
between them. The override switch on the bottom of the receiver can be
used instead of the remote control.
Preparing the connection
Before making the electrical connections, you need:
‹ An available 120V AC power source installed near the screen
Making the connection
The electrical diagram in Figure 10 illustrates the connections.
1. Connect the 4-pin connector to the receiver module.
2. Plug the receiver module into the 120V constant AC power
source.

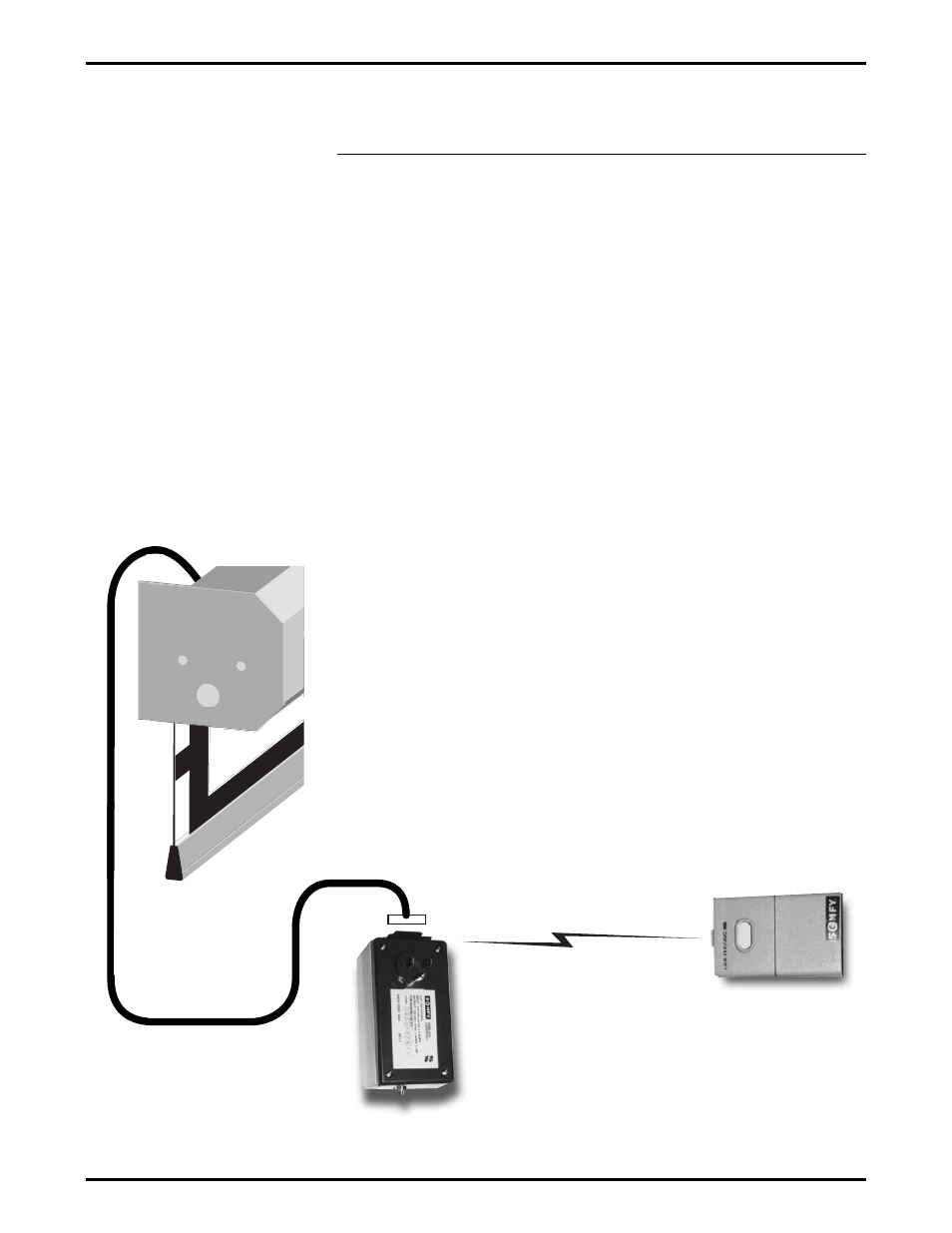

Figure 10: Wireless remote control connection
4-pin Connector
120V AC Plug
Wireless Remote
Receiver Module
Override Switch
Wireless Remote
Control
