Schumacher Automatic SEM-1562A User Manual
Page 9
• 8 •

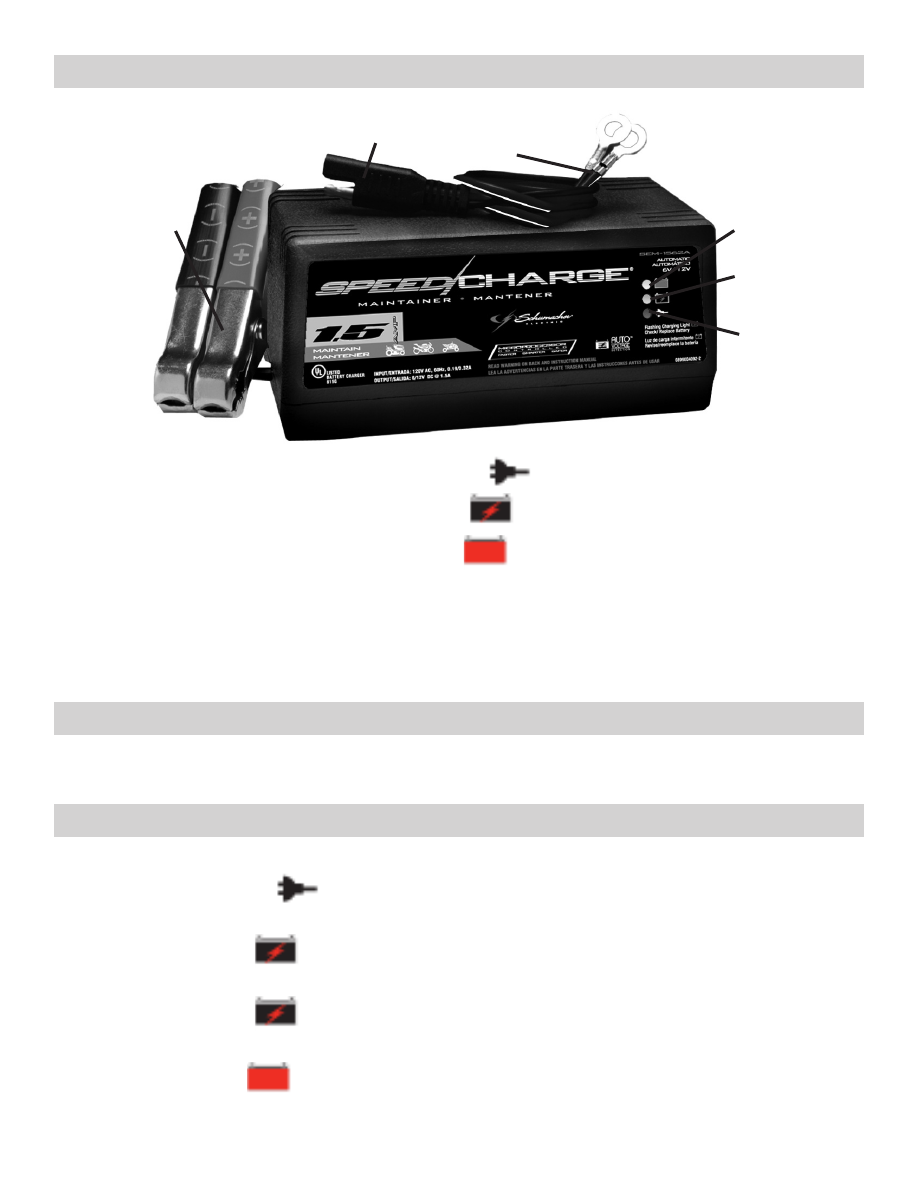

FEATURES
9.
1
2
3
CONNECTED
1.
(red) LED
CHARGING
2.
(yellow) LED
CHARGED
3.
(green) LED
Battery Clip Cable Assembly
4.
Ring Terminal Cable Assembly
5.
Quick-Connect Connector
6.
4
5
6
ASSEMBLY iNSTRUCTiONS
10.
Remove all cord wraps and uncoil the cables prior to using the
battery charger.
CONTROL PANEL
11.
LEd indicators
CONNECTEd
(red) LEd lit: Indicates that there is AC power
supplied to the battery charger.
CHARGiNG
(yellow) LEd lit: Indicates the charger is
charging the battery.
CHARGiNG
(yellow) LED flashing: Indicates the charger is
in abort mode.
CHARGEd
(green) LEd lit: Indicates the battery is fully
charged and the charger is in maintain mode
.
