English | 7

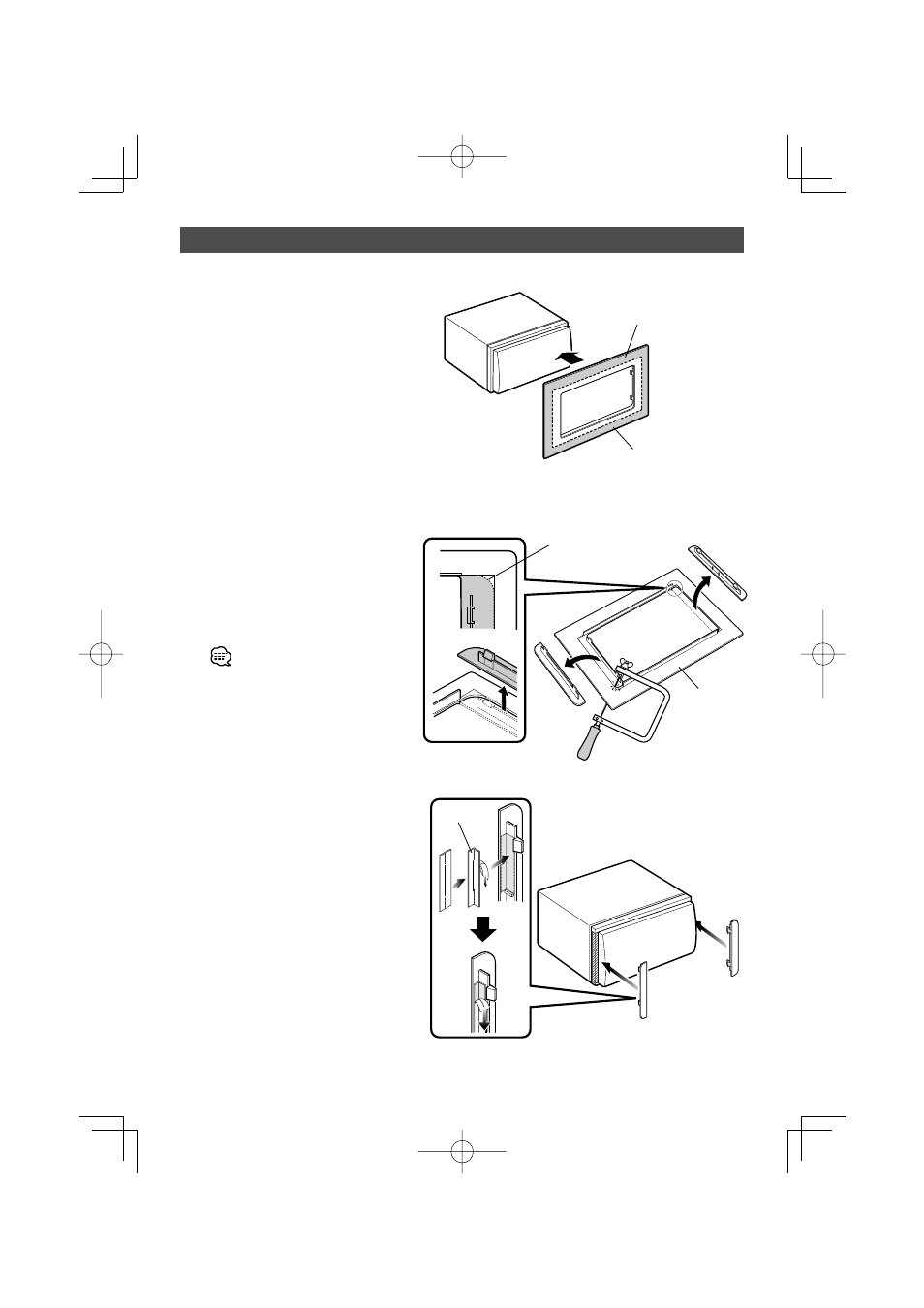

Installing the Escutcheon
Accessory 4
Cut out to meet the shape of the
opening in the vehicle.
Cutting line
Accessory 4
Accessory 5
■ For General Motors
1. Refer to the section
Rubber Frame> and then remove the hard
rubber frame.
2. Cut out accessory 4 to meet the shape of
the opening of the center console.
3. Attach accessory 4 to the unit.
■ For Toyota/Scion
1. Refer to the section
Hard Rubber Frame> and then remove
the hard rubber frame.
2. Cut out accessory 4 as illustrated.
When cutting out accessory 4, make
sure it fits the opening of the center
console.
3. Fold double-sided adhesive (accessory
5) along the slit and attach it to
accessory
4 cut-out against the
center rib as illustrated. Use 2 pieces
of accessory
5 for 1 accessory 4 cut-
out.
4. Attach accessory 4 cut-out to the
unit.
