4 | English
B
C
PRK SW
– +
+
B
C
A
A
REMO.CONT
TVANTENNA INPUT
TO MONITOR UNIT

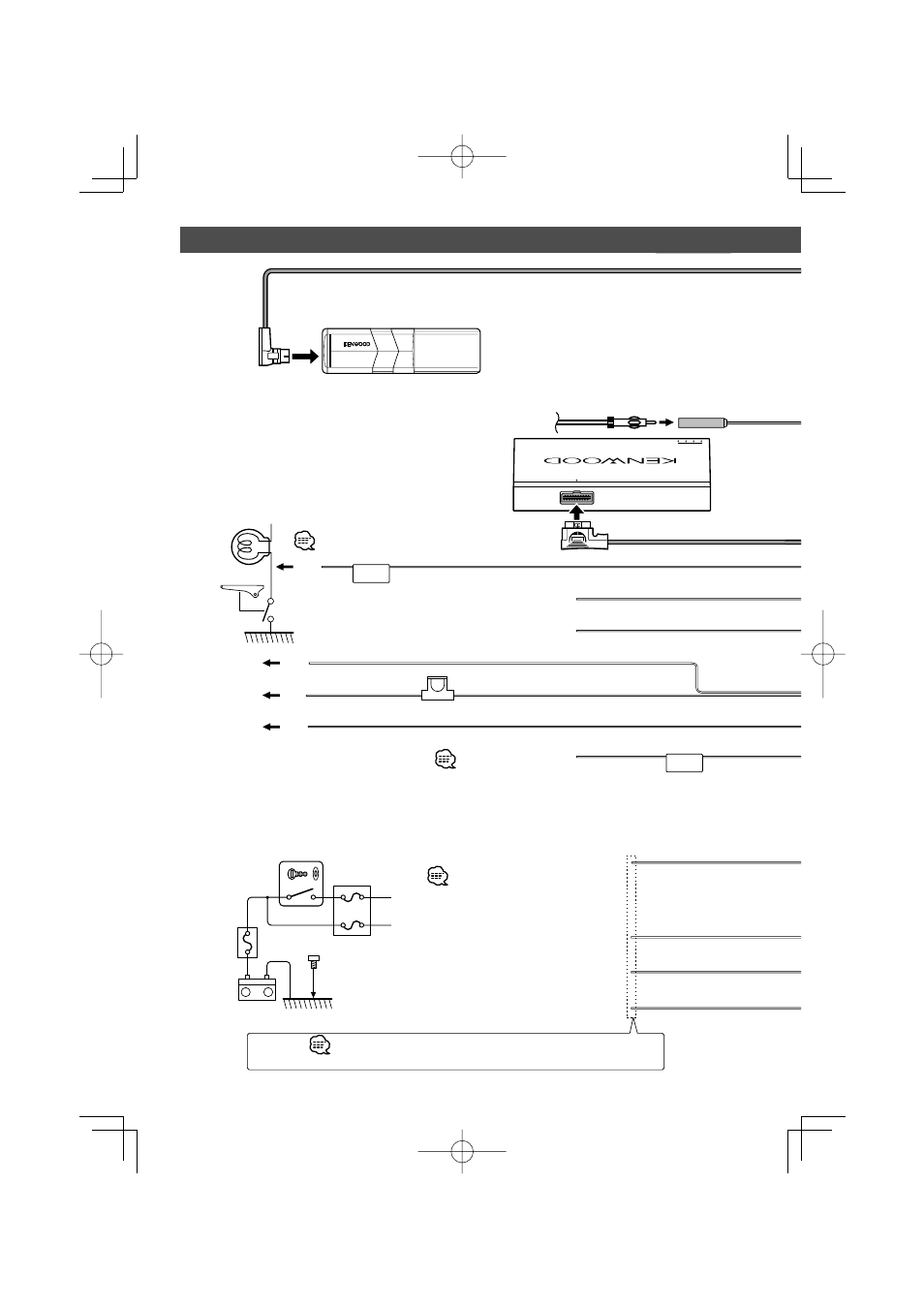

Connection
Connection cable (Included in the disc changer)
Antenna Cord FM/AM antenna input
Connect to the vehicle's parking brake
detection switch harness
using the supplied relay connector.
To vehicle's reverse lamp harness
To car light control switch
Reveres sensor wire (Purple/White)
For the sake of safety, be sure to connect the parking sensor.
Dimmer control wire (Orange/White)
When using the optional power amplifier,
connect to its power control terminal.
To "EXT.AMP.CONT." terminal of the amplifier
having the external amp control function.
TV tuner (Optional)
Parking sensor wire (Light Green)
Battery wire (Yellow)
Ground wire (Black) - (To car chassis)
FUSE ( 15A )
Ignition wire (Red)
If no connections are made, do not let
the cable come out from the tab.
Steering remote control input
(Light Blue/Yellow)
To steering remote
Connect to the terminal that is grounded when either
the telephone rings or during conversation.
Depending on what antenna you are using,
connect either to the control terminal of the
motor antenna, or to the power terminal for the
booster amplifier of the film-type antenna.
If no connections are made, do not let the cable come out from the tab.
Mute wire (Brown)
Motor antenna control wire
(Blue)
Power control wire
(Blue/White)
External amplifier control wire
(Pink/Black)
To connect the Kenwood navigation system,
consult your navigation manual.
Ignition key
switch
ACC
Car fuse
box
(Main fuse)
Battery
Car fuse box
Disc Changer etc.(Optional)
