Pickup Truck Antenna Cable Routing Procedure

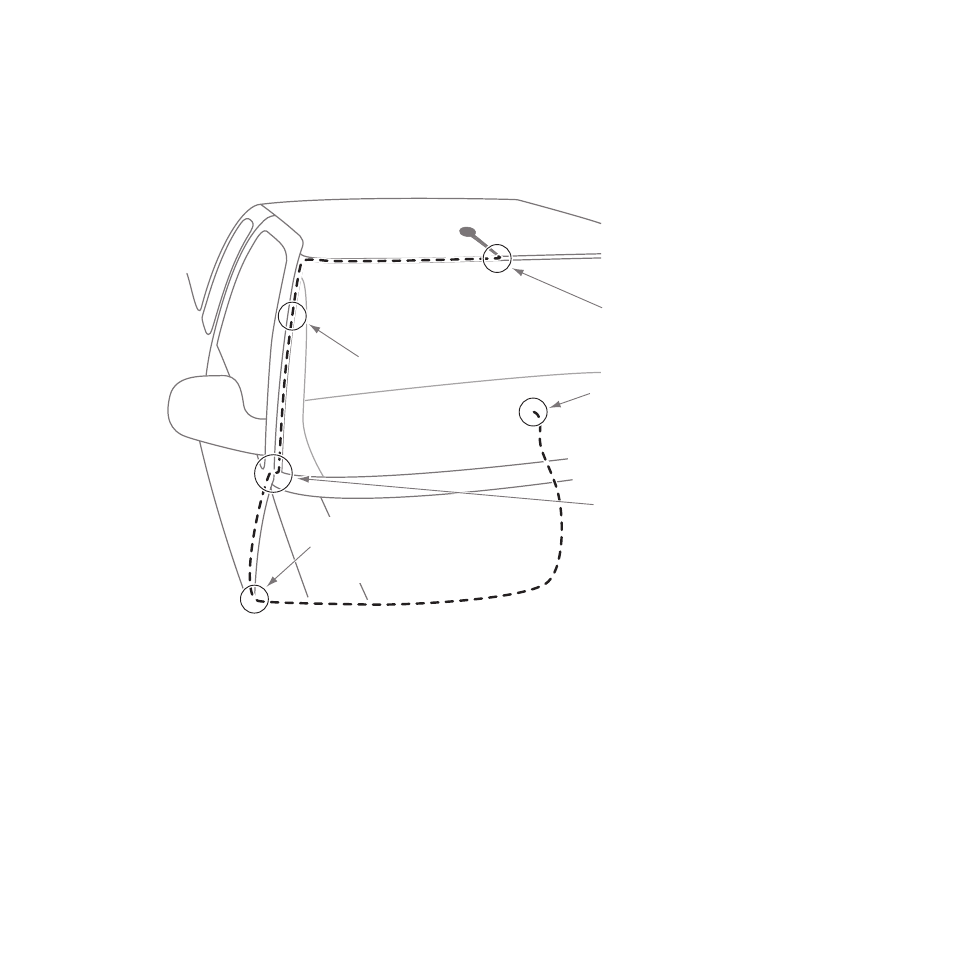

Figure 6 shows how the antenna cable should be routed from the antenna to your
SIRIUS radio in a pickup truck.
1. Route Cable Under
Rubber Molding
Around Windshield
2. Continue Tucking Cable
Under Molding To
Bottom of Windshield
3. Route Cable Out of Molding
and Into Weatherstripping
Around Door Opening.
Continue to Bottom of
Door Opening.
4. Bring Cable out from
Weatherstripping and
Route Under Carpet
5. Bring Cable Out to
SIRIUS Receiver
Location
A
NTENNA
Figure 6
