Page 14

930485 Rev. A

I X .

S E T U P ,

A D J U S T M E N T & U S E

D.TO FIND & CORRECT

A PROBLEM

1 First: Follow steps in this section to make

sure set-up is correct.

2. Second: If step 1 does not work, consult

your supplier for help.

3. If You Still Have A Problem: contact

Sunrise Medical Customer Service at
(800) 333-4000.

E. BATTERIES (See Section XI)

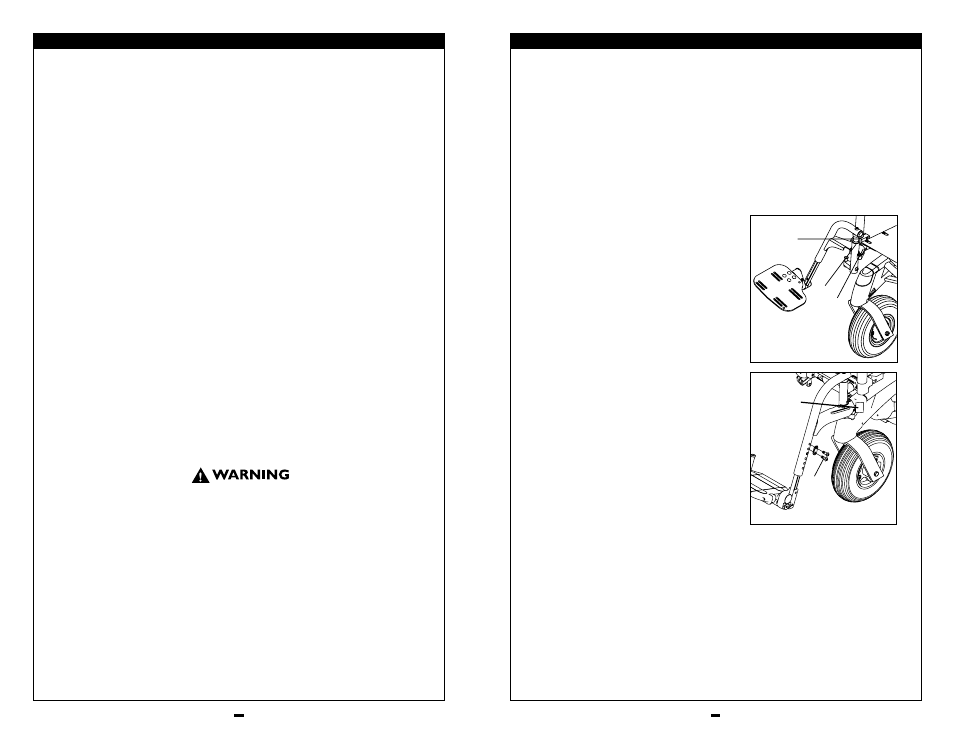

F. SWING-AWAY FOOTRESTS
1. Installation

a. Place swing-away pivot pin (B) into the

locating hole (C) on top of the hanger
mount with the footrest facing out-
ward from frame.

b. Rotate the footrest inward until latch

plate locks (D) into place on locking
bolt.

2. Removal

a. To remove footrest, press quick-

release lever (E).

b. Rotate footrest outward and lift.

3. Height Adjustment

a. Remove both bolts (F) in the hanger

frame tube.

b. Reposition footrest height.
c. Re-tighten all bolts (F).

I X .

S E T - U P ,

A D J U S T M E N T & U S E

B. TOOLS YOU WILL NEED
1. Basic Tool Kit:

To set-up, adjust and maintain your chair you will need the following tools:
•

7/16" box and open-end wrench

•

1/2" box and open-end wrench

•

3/4" box and open-end wrench

•

5/32" Allen wrench

•

3/16" Allen wrench

•

Phillips screwdriver #2

• Custom axle wrench (or a 1/2" open-end wrench)
You can obtain a multi-purpose tool kit from Sunrise, or buy the tools you
need from a hardware store.

2. Torque Wrench:

If you plan to adjust and maintain this chair yourself, Sunrise recommends that you
use a torque wrench.

Note: The wrench must measure inch-pounds.You can buy a torque wrench and proper

sockets from a hardware store.

C. CHECK-OUT

Be sure this chair performs to your chosen operational settings. If it does not,
turn the chair off immediately and reprogram with the Quickie QTRONIX
Programming Pad. If you do not own a Quickie QTRONIX Programming Pad
have your supplier reprogram your wheelchair as needed. Or, you can order a
Quickie QTRONIX Programming Pad for your own use, from your supplier.

Note: Repeat this procedure until the chair performs to your specifications.

Note: Quickie’ Smart Pad Programmer or Smart Box Programmer are not compatible

with the V-521 controller.

When properly set-up, this chair will operate smoothly. Check to see that all components

work properly. If you detect a problem, be sure to correct it before use.
