CP180 / CP180i Page 87
18. SPECIFICATIONS
18.0 SPECIFICATIONS
Power Consumption CP 180i: 520mA max @12V
CP 180 : 460mA max @12V
WITH
E
XTERNAL
GPS
CONNECTED
CP 180 : 410mA max @12V
WITHOUT
E
XTERNAL
GPS
CONNECTED
Power supply : 10-35 Volt DC
Interface : Input/Output Interface NMEA-0183
Display : TFT Color LCD
(active area 5")
sunviewable tecnology
Display Resolution : 320 x 240 pixels
Cartography : C-MAP NT + /MAX C-CARD
Operating temperature range : 0/+55 degrees Celsius
Storage temperature : -20/+70 degrees Celsius
Water Resistance : splash-proof
Memory : Internal non volatile for user data backup
Keyboard : Silicon rubber, backlight
Weight (without bracket) : 600 gr.
User Points (Marks/Waypoints): 600
Routes : 20 (max 30 Waypoints each)
Track Points : 3000 (recordable in 5 Tracks)

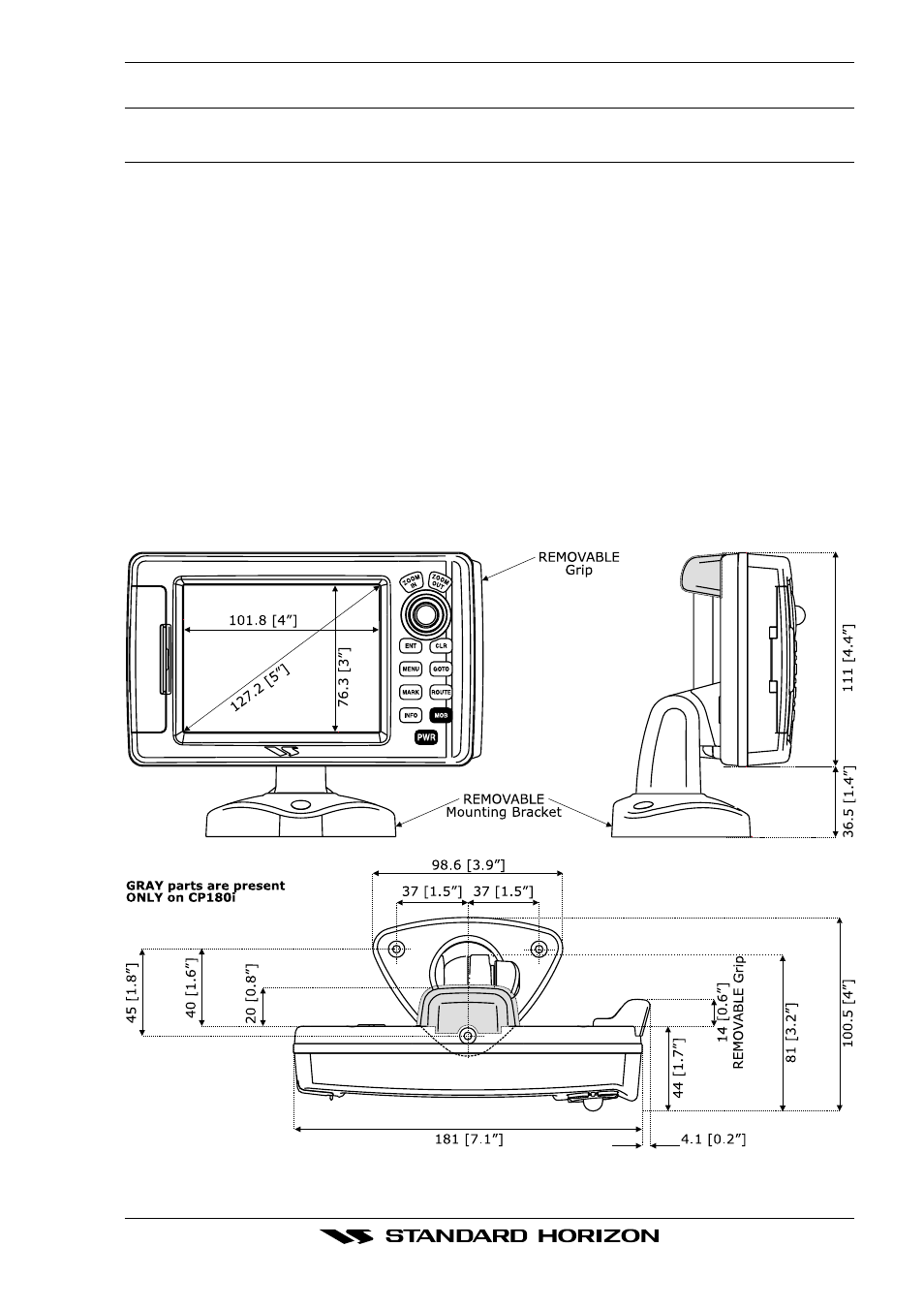

Figure 18.0 - Chart Plotter Dimensions [mm/inch]
