Page 16 CP180 / CP180i
6 Gray Port2 Input Connect to Output of NMEA device Default is NMEA0183*
7 White Port2 Output Connect to Input of NMEA device Default is NMEA0183 with GLL, RMB, RMC
and XTE sentences
8 Yellow Port3 Output Connect to Output of NMEA device Default is NMEA0183 with APA, APB, XTE,
COG and BOD sentences**
*NOTE: FF520 FISH FINDER OPTION
When a FF520 is connected to the CP180 or CP180i, Port 2 of the NMEA in/out Communi-
cation setup menu must be changed to FF520 as shown below for communications.
1. From the Chart page, press [MENU]. Move the ShuttlePoint knob to highlight SETUP
MENU and press [ENT].
2. Move the ShuttlePoint knob to highlight ADVANCED SETUP and press [ENT]or move
the ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight IN/OUT CONNECTIONS and press [ENT]or
move the ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to highlight PORT 2 INPUT and press [ENT]or move the
ShuttlePoint knob to the right.
5. Move the ShuttlePoint knob up/down to select FF520 and press [ENT] or move the
ShuttlePoint knob to the right.
6. Press [CLR] or move the ShuttlePoint knob to the left until the Chart page is shown.
**NOTE: AUTOPILOT CONNECTION
Care must be taken when connecting the chart plotter to an autopilot. Normally Port 3
(Yellow wire) will be used to connect to an Autopilot output, however older autopilots may
not be able to read the sentences due to the talker ID that is being used (II Integrated
Instrument). If the autopilot connections are made to Port 3 (Yellow wire) and the autopilot
is not reading the sentences, change the connections to Port 1 (Brown) or 2 (White) and
change the sentences to APA, APB, XTE, COG and BOD.

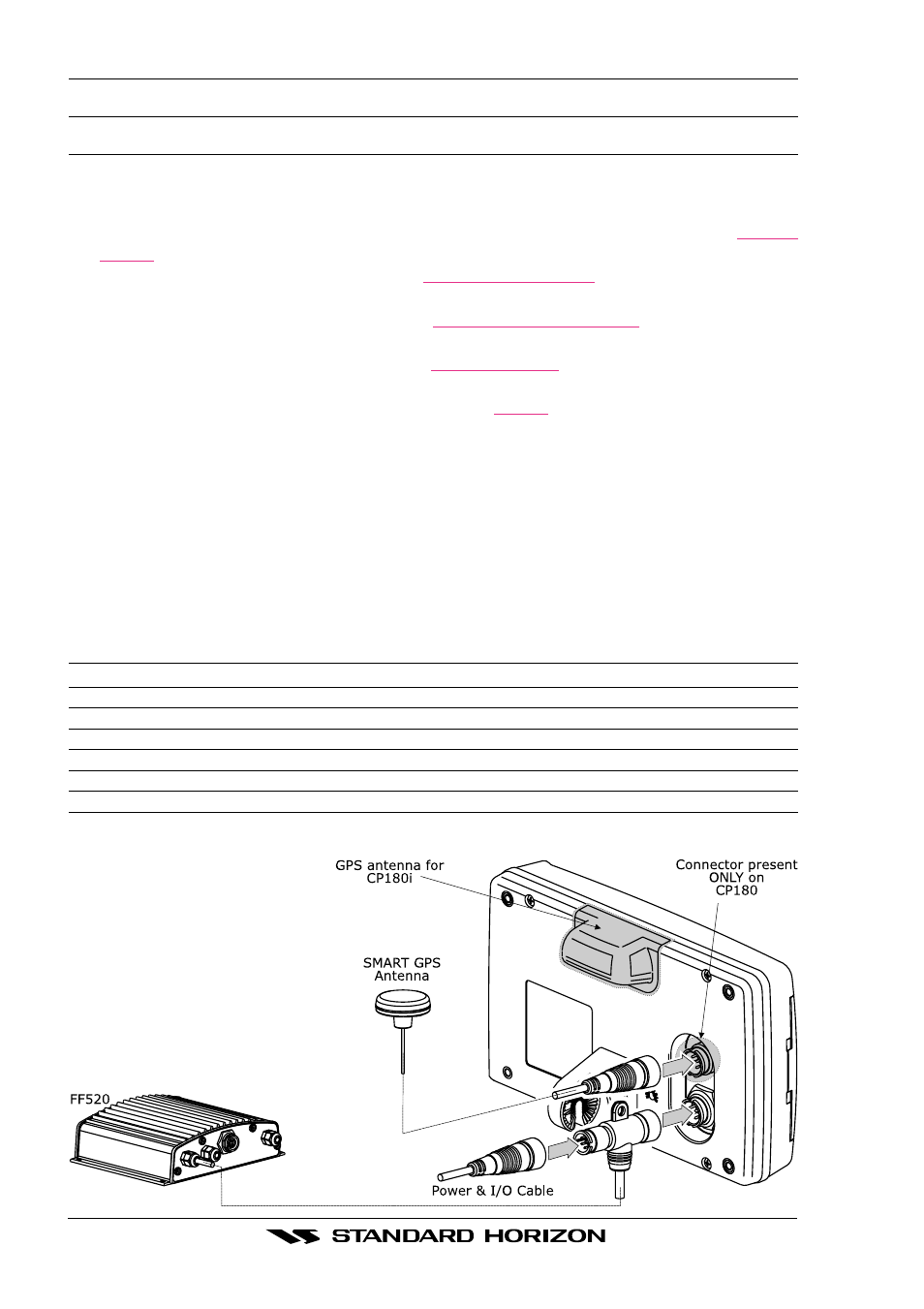

Smart GPS Cable
FOR
CP180
ONLY
Pin Wire Color Description
1 Red Battery Positive
2 Green Smart GPS NMEA Output
3 Brown Smart GPS NMEA Input
4 NC
5 NC
6 Black/Yellow Battery Ground
2.4.1 Connection
