16

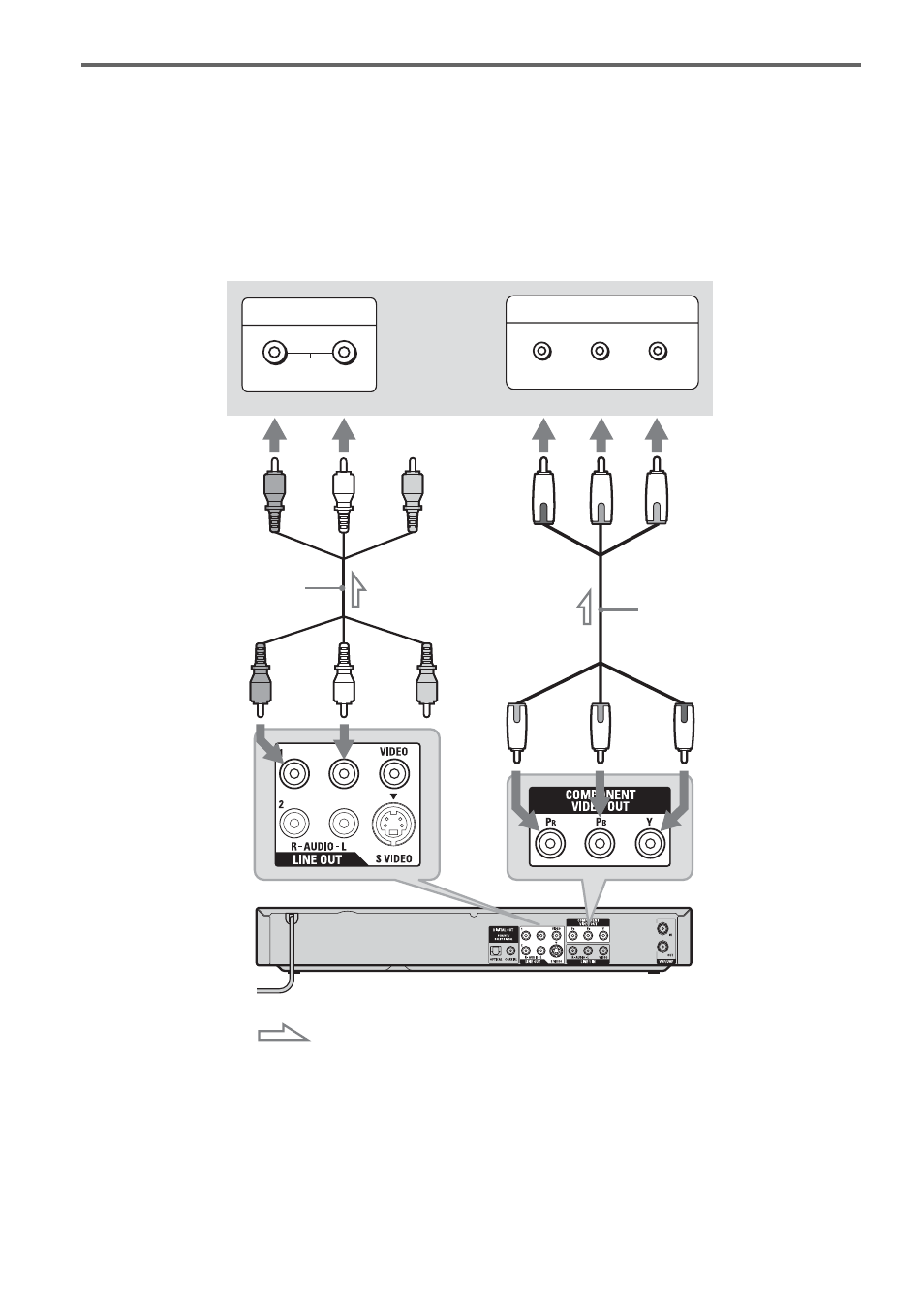

If your TV has component video input jacks
Connect the COMPONENT VIDEO OUT jacks using a component video cord (not supplied) or three
video cords (not supplied) of the same kind and length. You will enjoy accurate color reproduction and
high quality images.
If your TV accepts progressive 480p format signals, you must use this connection and then set
“Progressive” of “Video” to “On” in the “Setup” display (page 77). The PROGRESSIVE indicator lights
up when the recorder outputs progressive signals.
When using this connection, be sure to connect the audio cord to the LINE OUT 1 (AUDIO L/R) jacks.
AUDIO
L R
INPUT COMPONENT VIDEO IN
P B P R Y
(red) (blue) (green)
(green) (blue) (red)
Component video cord
(not supplied)
: Signal flow
TV or projector
Audio/video cord (supplied)
(white) (red)
(white)
to LINE OUT1
(AUDIO L/R)
to COMPONENT
VIDEO OUT
DVD recorder
(red)
