35


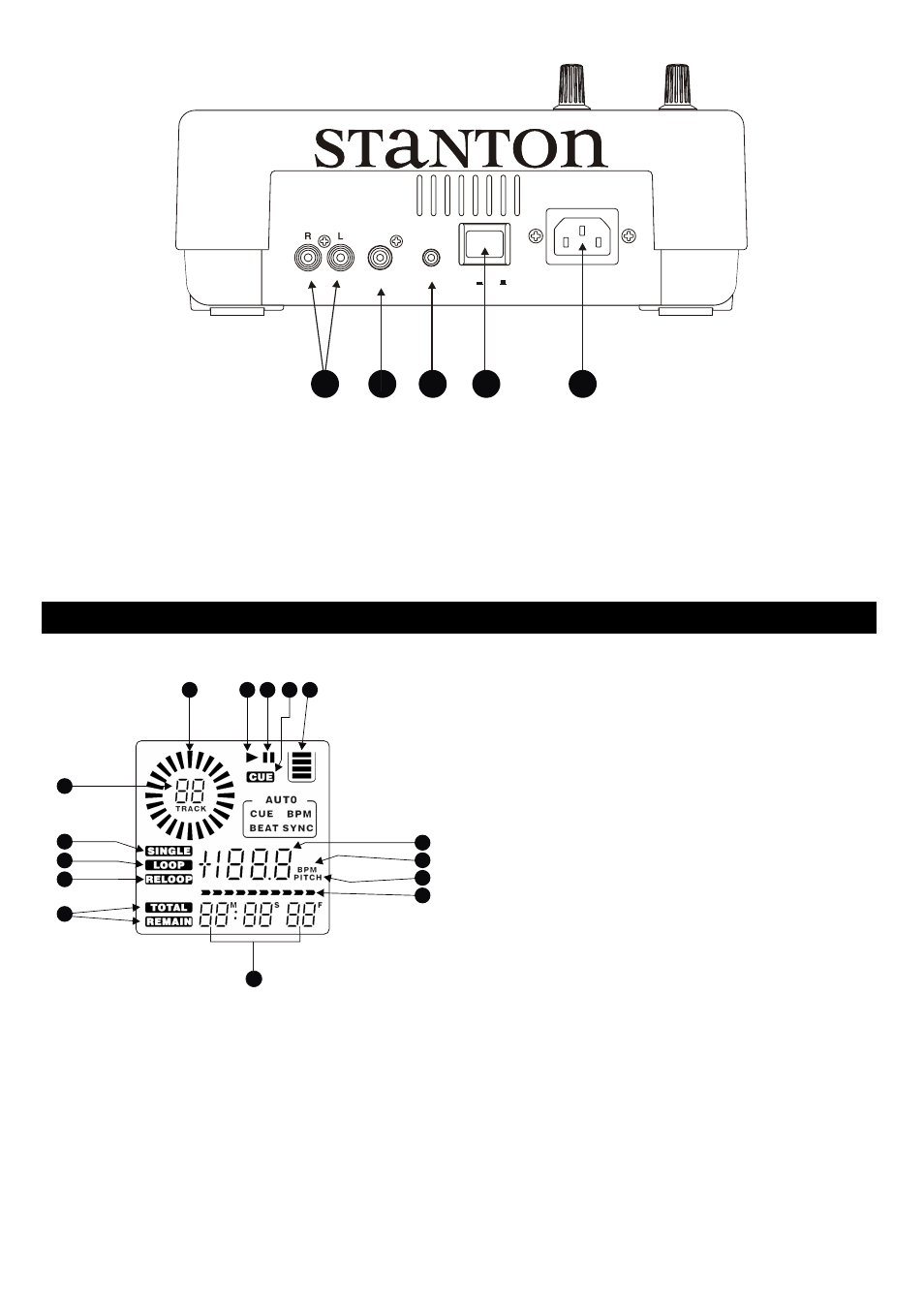

35. AUDIO OUT-SOCKETS

This analogue signal

requires RCA (left & right) connections. Connect this
output to the respective input of your mixer (Line/Aux).

36. DIGITAL OUT-SOCKET

This digital signal

requires one SP/DIF (75 Ohm) connection. Connect
this output to the respective input of your mixer /
computer.

37. RELAY SOCKET

Via the RELAY SOCKET, two

CD players can be linked (connected) for relay play. If

you connect to a mixer which supports fader start,
you can also relay play via mixer’s cross-fader.

38. POWER SWITCH

Press this button to activate

the unit (i.e. Power ON/OFF)

39. AC CONNECTION

Plug in the power supply

cable here.

LCD Display

14

1. TRACK

Shows the current track selected /

playing.

2. SINGLE

Shows when the unit is set to play just

one track at a time. When this is not lit the CD will
play continuously through all tracks. The function is
controlled by the

SGL/CTN button.

3. LOOP

Shows when the CD is in LOOP mode;

repeating a particular area of music on the CD.

4. RELOOP

Shows when the CD has had a loop set

previously and that the loop is ready to be played
again.

5. ELAPSED, TOTAL REMAIN

Indicates the time

shown on the display is either ELAPSED, TOTAL

REMAINING or the single song remaining time.

6. MINUTE, SECOND, FRAME

Displays the time of

Track(s) currently selected in increments of Minutes,
Seconds, and Frames.

7. TIME BAR

shows either time remaining or

elapsed depending on the setting of the

TIME button.

8. PITCH

indicator light to show percent of pitch is

displayed.

9. BPM

indicator lights up when BPM button is

engaged.

10. PITCH/BPM

Shows either the percentage change

in pitch or the BPM of the song depending on the
mode selected with the

BPM button.

11. ANTI SHOCK AND BUFFER INDICATOR

Indicates the current status of the Buffer Memory.
This is represented on the display by a bucket being
filled or emptied. The bucket itself represents the
instant start function (which works by buffer memory).
If the bucket is flashing, the instant start is not
available. Each bar within the bucket represents 2
seconds of anti shock protection. There is up to 10
seconds of anti shock available.

12. CUE

Indicates the unit is at a cue point and is

ready to play.

13. PAUSE

Indicates the unit is in CUE/ PAUSE

mode.

14. PLAY

Indicates the unit is currently playing a CD.

15. WHEEL INDICATOR

A visual representation of a

vinyl marker, indicating play position in frames. This
wheel rotates during playback and stops during
pause and also indicates direction (fwd/rev).

AUDIO OUT

DIGITAL

OUT

AC IN~

POWER

ON

OFF

RELAY

36

37

38

39

35

1

2

3

4

5

7

8

9

10

11

12

13

15

6

14
