5 EN
Getting Started
Tuner
Tape deck
Turntable
• If your turntable has an earth lead
To prevent hum, connect the earth lead to the y ground
terminal on the amplifier.
Audio/Video Component
Hookups
Overview

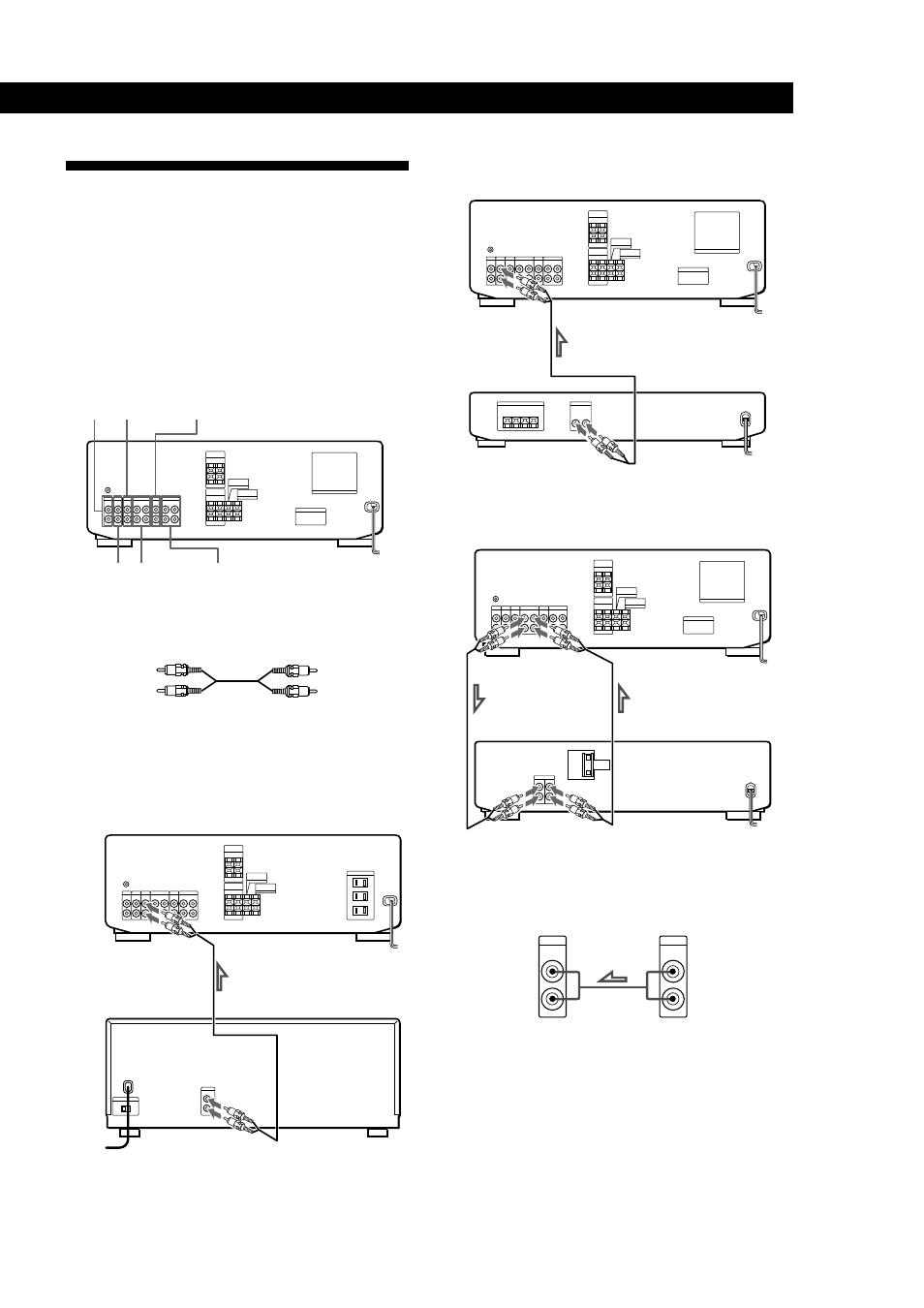

This section describes how to connect your audio and
video (audio signal only) components to the amplifier,
so you can listen to stereo sources in surround sound.
For specific locations of the jacks, see the illustration
below.
What cords will I need?
Audio cords (1 for the CD player, tuner, turntable, LD player
or TV game; 2 for the tape deck or VCR)
Hookups
The arrow ç indicates signal flow.
CD player
Amplifier
Tuner (ST-JX661)
PHONO CD
TUNER TAPE
VIDEO 2
VIDEO 1
Tape deck (TC-WR661)
Amplifier
PHONO
IN
OUTPUT
LINE
L
R
Amplifier Turntable
(continued)
Amplifier
CD player
(CDP-CX571)
Red (R) Red (R)
White (L) White (L)
