6 Sch487
LIMITED WARRANTY
SCHUMACHER ELECTRIC CORPORATION, 801 BUSINESS CENTER DRIVE, MOUNT PROSPECT, IL 60056-2179 MAKES THIS LIMITED
WARRANTY TO THE ORIGINAL PURCHASER AT RETAIL OF THIS PRODUCT. THIS LIMITED WARRANTY IS NOT TRANSFERABLE.
Schumacher Electric Corporation warrants this battery charger for 3 years, and the transformer and rectifiers for 5 years from date of purchase at
retail against defective material or workmanship. If such should occur, the unit will be repaired or replaced at the option of the manufacturer. It is the
obligation of the purchaser to forward the unit together with proof of purchase, transportation and / or mailing charges prepaid to the manufacturer
or its authorized representative. This limited warranty is void if the product is misused, subjected to careless handling, or repaired by anyone other
than the factory or other authorized factory representative. The manufacturer makes no warranty other than this limited warranty and expressly
excludes any implied warranty including any warranty for consequential damages.
This is the only express limited warranty and the manufacturer neither assumes nor authorizes anyone to assume or make any other obligation
towards the product other than this express limited warranty. The manufacturer makes no warranty of merchantability or fitness for purpose of this
product and expressly excludes such from this limited warranty. Some states do not allow the exclusion or limitation of incidental or consequential
damages or length of implied warranty so the above limitations or exclusions may not apply to you. “This warranty gives you specific legal rights,
and you may have other rights which vary from state to state.”

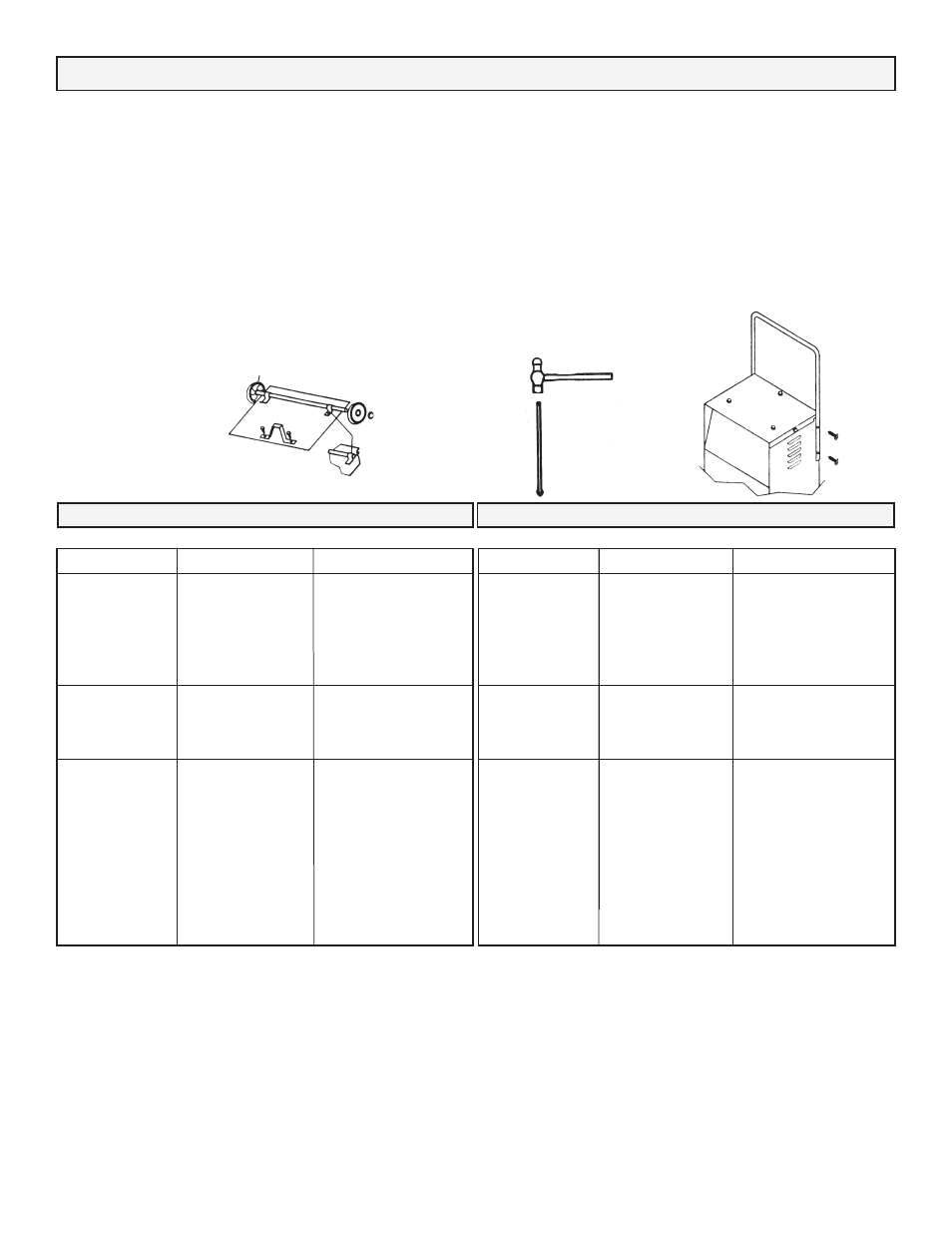

L. ASSEMBLY INSTRUCTIONS
Wheel Charger assembly instructions:
NOTE: Unit must be fully assembled before operating
PARTS:
2 10-32 thread cutting screws
2 1/4-20 thread cutting screws
2 wheels
2 axle caps
2 axle brackets
1 handle
1 mounting foot
TOOLS NECESSARY:
3/8" wrench
5/16" wrench
hammer
screwdriver
First place the charger topside down on a flat surface.
Next mount the mounting foot FIG. A with (2) 1/4-20 screws.
Next pound the axle firmly into an axle cap using a hammer FIG B.
Next slide the wheels onto the axle, hubs must face in, FIG C.
Next pound the other axle cap onto the other end of the axle.
Next place the axle assembly onto the bottom of the charger as shows in figure
FIG. C. Mount the axle to the bottom of the charger using the two 10-32 thread
cutting screws as shown in Fig. D (these screws require a 5/16" wrench.)
Next turn the battery charger right side up onto its foot and wheels. Remove the
two top screws from each side of the charger, line up
the handle and reinstall the screws. FIG E.
PROBLEMA CAUSA POSIBLE SOLUCION
La pinzas no están
haciendo buen
contacto.
Voltaje de la bateria
demasiado bajo.
El tomacorriente CA
no tiene electricidad.
Mala conexión
eléctrica.
El disyuntor de
circuito está
funcionando.
La batería está
defectuosa.
Batería demasiado
descargada, pero
buena.
Invertir las conexiones
en la batería.
LOCALIZACION DE AVERIAS
Si ocurre algún problema, verificar lo siguiente:
El medidor no indica
(cordón CA
desenchufado)
El cargador no se
enciende cuando
está bien conectado.
El cargador hace
ruido (“clic”)
Mover las pinzas hacia uno y
otro lado para lograr mejor
contacto.
Enchufar el cordón CA al
tomacorriente; ahora el
medidor debe indicar.
Enchufar una lámpara para
verificar si hay voltaje.
Revisar las conexiones,
mover hacia uno y otro lado
para lograr mejor contacto.
Puede estar en la posición
errónea del interruptor.
Hacer revisar la batería.
Dejar cargando hasta que la
batería tenga oportunidad de
recuperarse lo suficiente para
tomar carga. Si se demora
más de 20 minutos, parar de
cargar y hacer revisar la
batería.
Apagar el cargador y corregir
las conexiones de los
conductores.
TROUBLESHOOTING
If a problem does occur, check the following:
PROBLEM POSSIBLE CAUSE SOLUTION
No Meter Reading Clips are not making Rock clips back and
(AC Cord Unplugged) a good connection. forth for a better connection.
Battery voltage is too Plug AC line into outlet.
low. Meter should now indicate.
2 amp charge rate None, meter will not indicate
being used. here.
Charger will not turn AC outlet is dead. Plug in a lamp to check for
on when properly voltage.
connected. Poor electrical Check connections, rock
connection. back and forth for a better
connection.
Clicking noise from Circuit breaker is May be in the wrong switch
charger. cycling. position
Battery is defective. Have Battery checked.
Severely discharged Allow charging to continue
battery but otherwise until battery has a chance
a good battery. to recover sufficiently to take
a charge. If more than 20
min. stop charging and have
the battery checked.
Reverse connections Shut off charger and correct
at battery. lead connections.
Fig. E
Fig. B
—AXLE CAP
HUBS MUST
FACE IN
AXLE BRACKET
Fig. D
Fig. A
