Warning – Spalding M682001 User Manual
Page 16
16
ID# M682001
12/06
3.
29
31
36
35
35
WARNING!
USE EYE PROTECTION WHEN
INSTALLING SPRINGS.
35
35

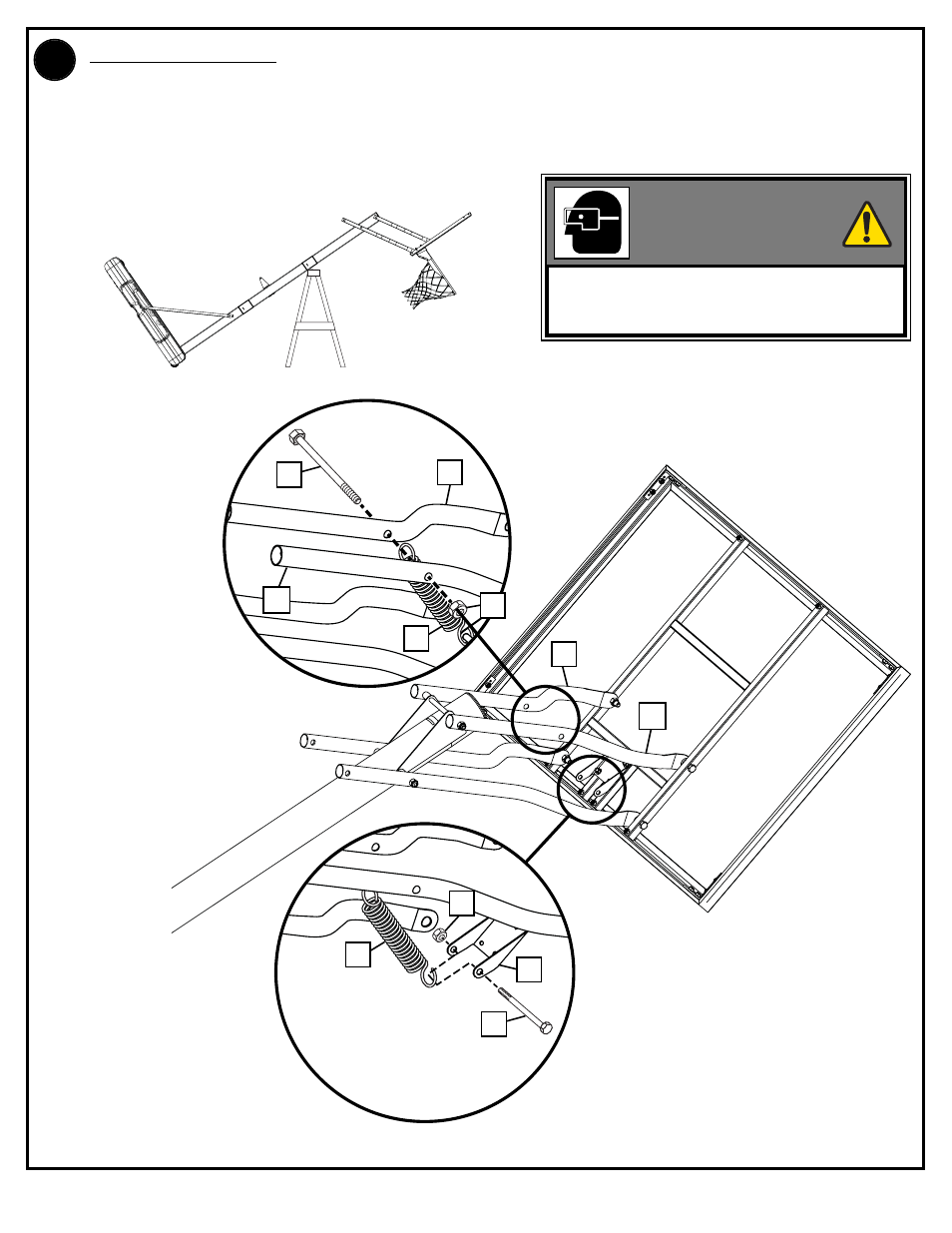

Support pole on sawhorse. Attach counter balance spring (36) to the spring support bracket (27) using bolt (51) and
nut (31) as shown.
Insert bolt (29) through left side upper elevator tube (35), then stretch spring (36) onto bolt (29). Insert
bolt (29) through right side upper elevator tube (35) and secure with nut (31).
51
31
36
27
