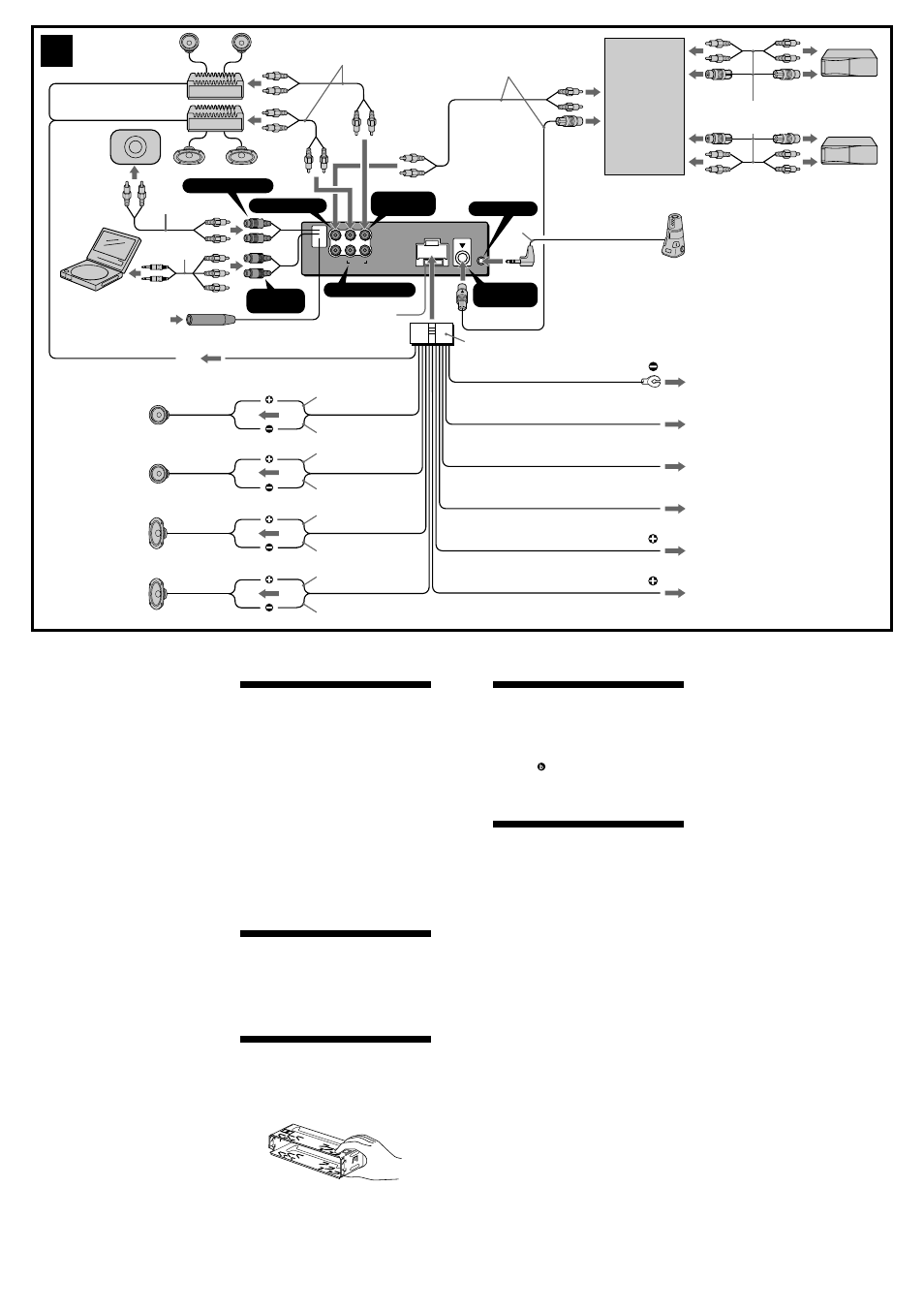

FRONT AUDIO OUT REAR BUS AUDIO IN
•
•
•
•
•
•
•
•
1
• 1
2
1
TOP
Notes on the control and power supply leads
• The power aerial control lead (blue) supplies +12 V
DC when you turn on the tuner or when you
activate the AF (Alternative Frequency), TA (Traffic
Announcement) function.
• When your car has built-in FM/MW/LW aerial in
the rear/side glass, connect the power aerial
control lead (blue) or the accessory power input
lead (red) to the power terminal of the existing
aerial booster. For details, consult your dealer.
• A power aerial without relay box cannot be used
with this unit.
Memory hold connection
When the yellow power input lead is connected,
power will always be supplied to the memory circuit
even when the ignition key is turned off.
Notes on speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms,
and with adequate power handling capacities to
avoid its damage.
• Do not connect the speaker terminals to the car
chassis, or connect the terminals of the right
speakers with those of the left speaker.
• Do not connect the earth lead of this unit to the
negative (–) terminal of the speaker.
• Do not attempt to connect the speakers in parallel.
• Connect only passive speakers. Connecting active
speakers (with built-in amplifiers) to the speaker
terminals may damage the unit.
• To avoid a malfunction, do not use the built-in
speaker wires installed in your car if the unit shares
a common negative (–) lead for the right and left
speakers.
• Do not connect the unit’s speaker cords to each
other.
3
3
•
•
3
4
1
2
•
•
3
4
5
6
•
•
7
•
•
•
•
•
•
•
•
•
•
•
3
from car aerial
2
5
4
AMP REM
7
Max. supply current 0.3 A
Fuse (10 A)
Red
Yellow
Black
Blue/white striped
White
Green
Purple
White/black striped
Grey/black striped
Green/black striped
Purple/black striped
Grey
Supplied with XA-C30
4
Left
Right
Left
Right
3
ANT REM
1
Blue
Max. supply current 0.1 A
Light blue
6
ATT
Source selector
(not supplied)
XA-C30
Supplied with the CD/MD changer
* 1
* 1
* 1
7
ILLUMINATION
Orange/white striped
* 3
* 2
BUS AUDIO IN
BUS
CONTROL IN
AUDIO OUT REAR
AUDIO OUT
FRONT
* 1 RCA pin cord (not
supplied)
* 2 Auxiliary optional
equipment such as
portable DVD player DVP-
FX1 (not supplied)
* 3 supplied with the auxialiry
equipment
* 4 Be sure to match the color-
coded code for audio to
the appropriate jacks from
the unit.
* 5 Insert with the cord
upwards
AUX IN
(AUDIO) * 4
SUB OUT (MONO)
REMOTE IN
* 5
