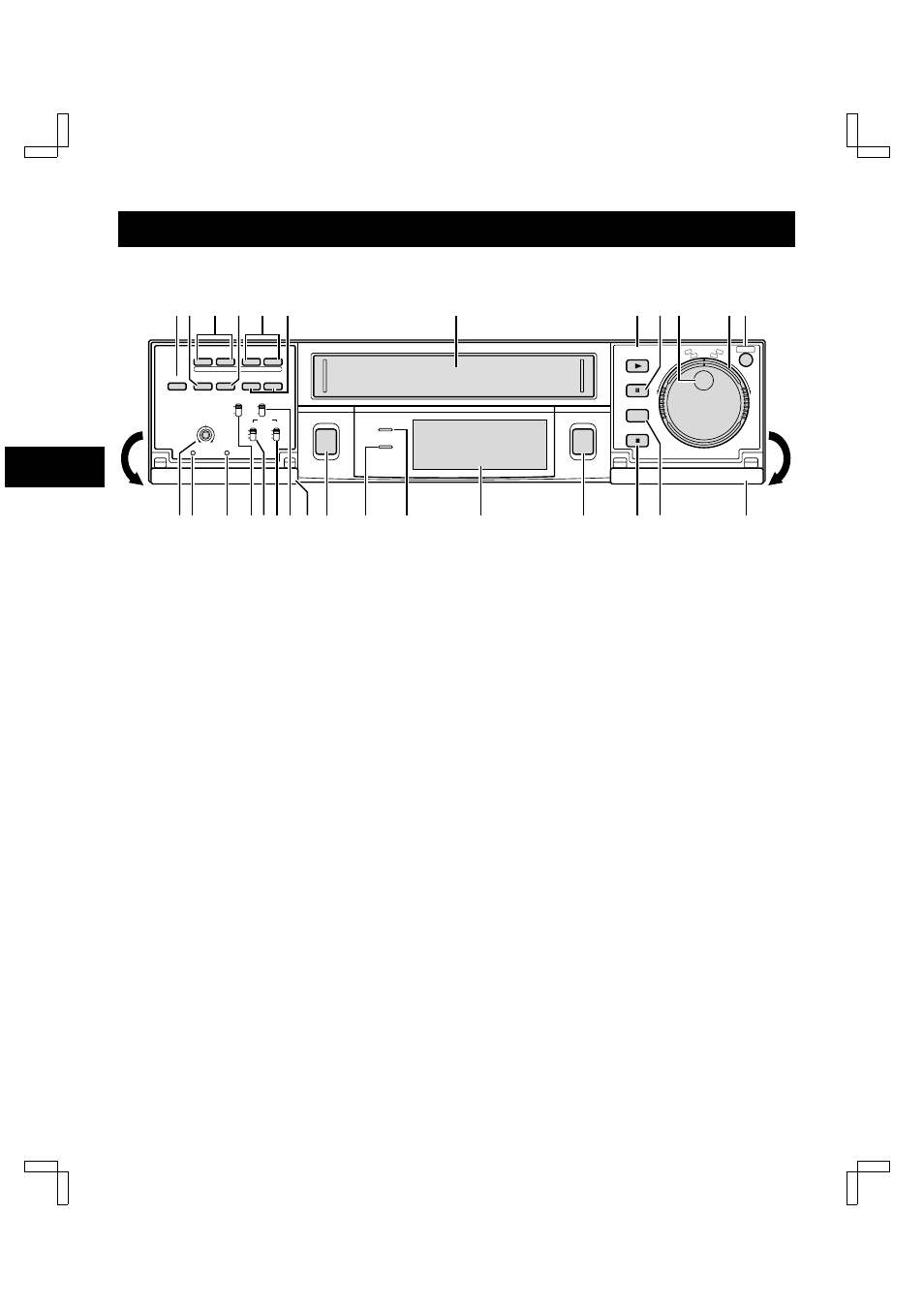

LOCATIONS OF CONTROLS AND INDICATORS
Front Panel
1
TIMER button
2
COUNTER RESET button
3
SHIFT ] or « (display position down or right) button
4
COUNTER MEMORY button
5
REC/PLAY SPEED l or j (decrease or increase
recording/playback speed mode) button
6
TRACKING/V. STILL – or + button
7
Cassette loading slot
8
PLAY (REC CHECK) button
9
STILL/PAUSE button
F
JOG dial
G
SHUTTLE ring
H
MENU button
I
Front door
J
SEARCH/AUDIO ON button
K
STOP button
L
EJECT button
M
Digital display panel
N
POWER indicator
O
REPEAT (autorepeat recording) indicator
P
REC (record) button
Q
REPEAT REC (autorepeat recording) switch
R
ALARM DURATION (alarm recording time) switch
S
ALARM SPEED (alarm recording speed) switch
T
ON SCREEN switch
U
ALL RESET button
V
MENU RESET button
W
SHARPNESS control
NOTE:
œ Buttons 3 and 5 are also used for menu control.
POWER
REPEAT
l SHUTTLE j
» JOG ,
TIMER RESET MEMORY
COUNTER
] SHIFT «
REC/PLAY
l SPEED j
TRACKING
– V.STILL +
SOFT SHARP
MENU RESET ALL RESET
ON SCREEN
REPEAT
REC
SHARPNESS
« l j »
12H
NC
2H
PROG.
CC
20S
SPEED DURATION
ALARM
R
E W F F
PLAY
(REC CHECK)
STILL
PAUSE
STOP
MENU
ON
OFF
ON
OFF
a
REC
i
EJECT
SEARCH
AUDIO ON
I J K L M N O P Q R S T U WV I
7 12 3 5 4 6 8 9 G H F
