OUTPUT TERMINALS
TAPE END OUT Terminal
œ During recording, when the end of the tape is reached
or when the tape counter reading indicates 1 hours 57
minutes or more, the output becomes 0V (Low).
œ To reset the output, press the STOP or EJECT button.
œ During autorepeat recording, when the end of the tape
is reached, the output becomes 0V (Low) for about 2
seconds only.
TAPE END OUT Terminal Output Setting
1
Press the MENU button until the (SET UP 3) menu is
displayed.
@@@@@@@
öALARM@MODE@@@@@@@Y1
öALARM@DURATION@@@20S
öEXT@TIME@ADJ.@@@@01:00
öTAPE@IN@MODE@@@@@STOP
öTAPE@END@MODE@@@@REW
öTAPE@END@OUT@@@@@-3M
öCLOG@DETECT.@@@@@Y
öSERIES@REC@IN@@@@N
öRS-232C@@@@@@@@@@19200
2
Turn the JOG dial, until the “TAPE END OUT” setting
is flashing.
3
Turn the SHUTTLE ring, to select the desired output
mode.
–3M . . . . . . . The output becomes 0 V (Low)
when the tape counter reaches
“1
H 57 M 00 S ” and/or when the tape
reaches the end.
END . . . . . . . The output becomes 0 V (Low)
when the tape reaches the end.
4
Press the SEARCH/AUDIO ON button to save the
setting.
WARNING OUT Terminal
œ If the tape stops or other problem, the output becomes
0V (Low).
œ To reset the output, press the STOP or ALL RESET
button or unplug the power cord then plug it back in.
NOTE:
œ If the output is 0V (Low) due to the clog detect function,
it can be reset by simply pressing the STOP button.
TIMER OUT Terminal
œ During timer recording DC 12 V (High) are output.
(During timer recording stand-by mode, the output is
0V (Low).)
COM Terminal
œ Common GND (ground) terminal when connecting
other terminals to external devices.

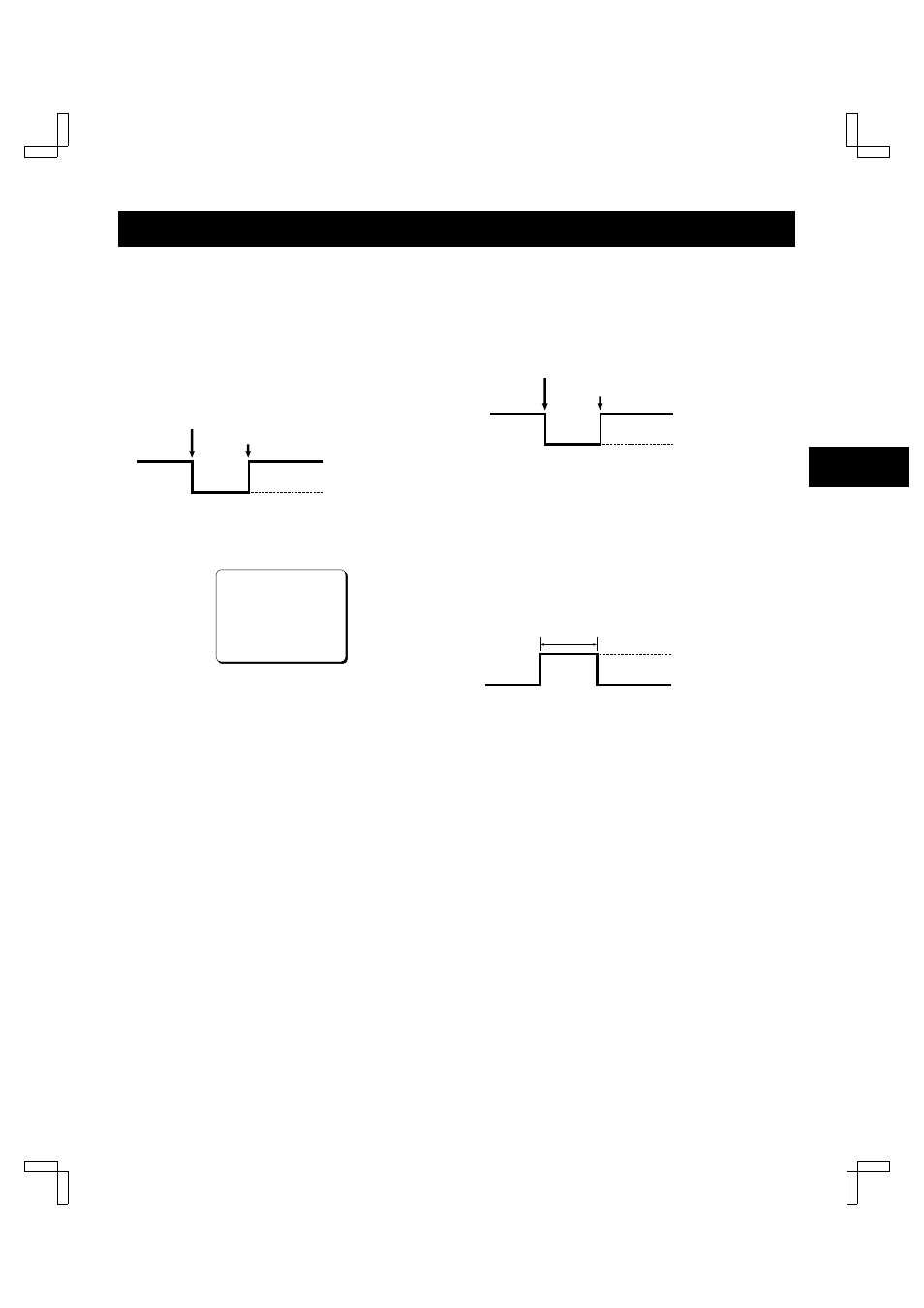

Tape end or 1
H
57
M
00
S
5V (H)
0V (L)
(Output impedance: 5.7 k
Ω
)
Output reset
Tape movement stop
5V (H)
0V (L)
(Output impedance: 5.7 k
Ω
)
Output reset
Timer recording
12V (H)
0V (L)
(Output impedance: 5.7 k
Ω
)
