English-2

Viewing the Connection Panel

Connecting an Aerial or Cable Television Network (depending on the model)

To view television channels correctly, a signal must be received by the set from one of the
following sources:
- An outdoor aerial
- A cable television network
- A satellite network

Connecting a Set-Top Box, VCR or DVD

- Connect the VCR, or DVD SCART cable to the SCART connector of the VCR, or DVD.
- If you wish to connect both the Set-Top Box and VCR (or DVD), you should connect the

Set-Top Box to the VCR (or DVD) and connect the VCR (or DVD) to your set.

Connecting a Computer

- Connect the 15 Pin D-SUB connector to the PC video connector.
- Connect the stereo audio cable to the “Audio (ST)” jack on the rear of your set and the other end to

the “Audio Out” jack of the sound card on your computer.

Pin

Separate H/V

Composite H/V

1

Red (R)

Red (R)

2

Green (G)

Green (G)

3

Blue (B)

Blue (B)

4

Grounding

Grounding

5

Grounding (DDC return)

Grounding (DDC return)

6

Grounding - Red (R)

Grounding - Red (R)

7

Grounding - Green (G)

Grounding - Green (G)

8

Grounding - Blue (B)

Grounding - Blue (B)

9

No connection

No connection

10

Grounding - Sync. / Self test

Grounding - Sync. / Self test

11

Grounding

Grounding

12

DDC - SDA (Data)

DDC - SDA (Data)

13

Horizontal Sync.

Horizontal/Vertical Sync.

14

Vertical Sync.

Not used

15

DDC - SCL (Clock)

DDC - SCL (Clock)

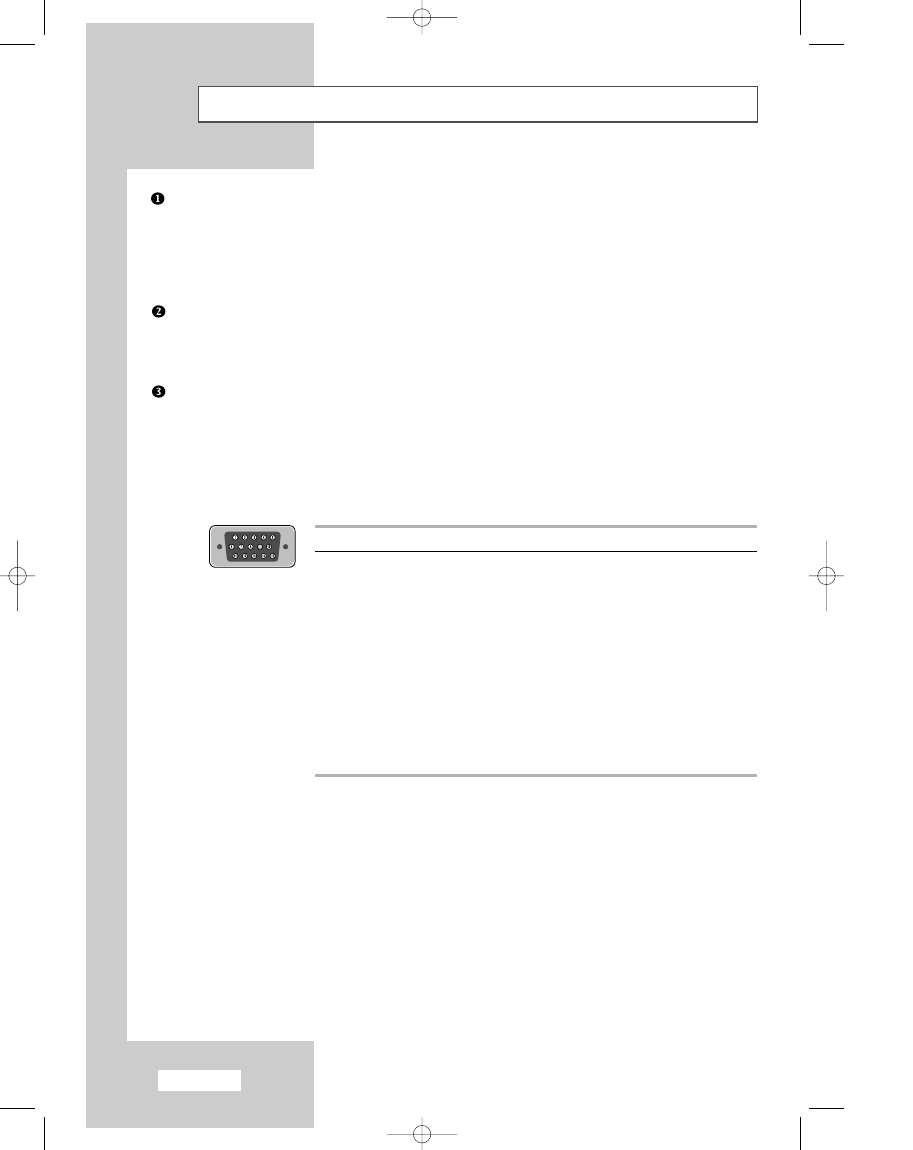

15 Pin D-SUB connector
