Step 3: Connecting the Audio Cords

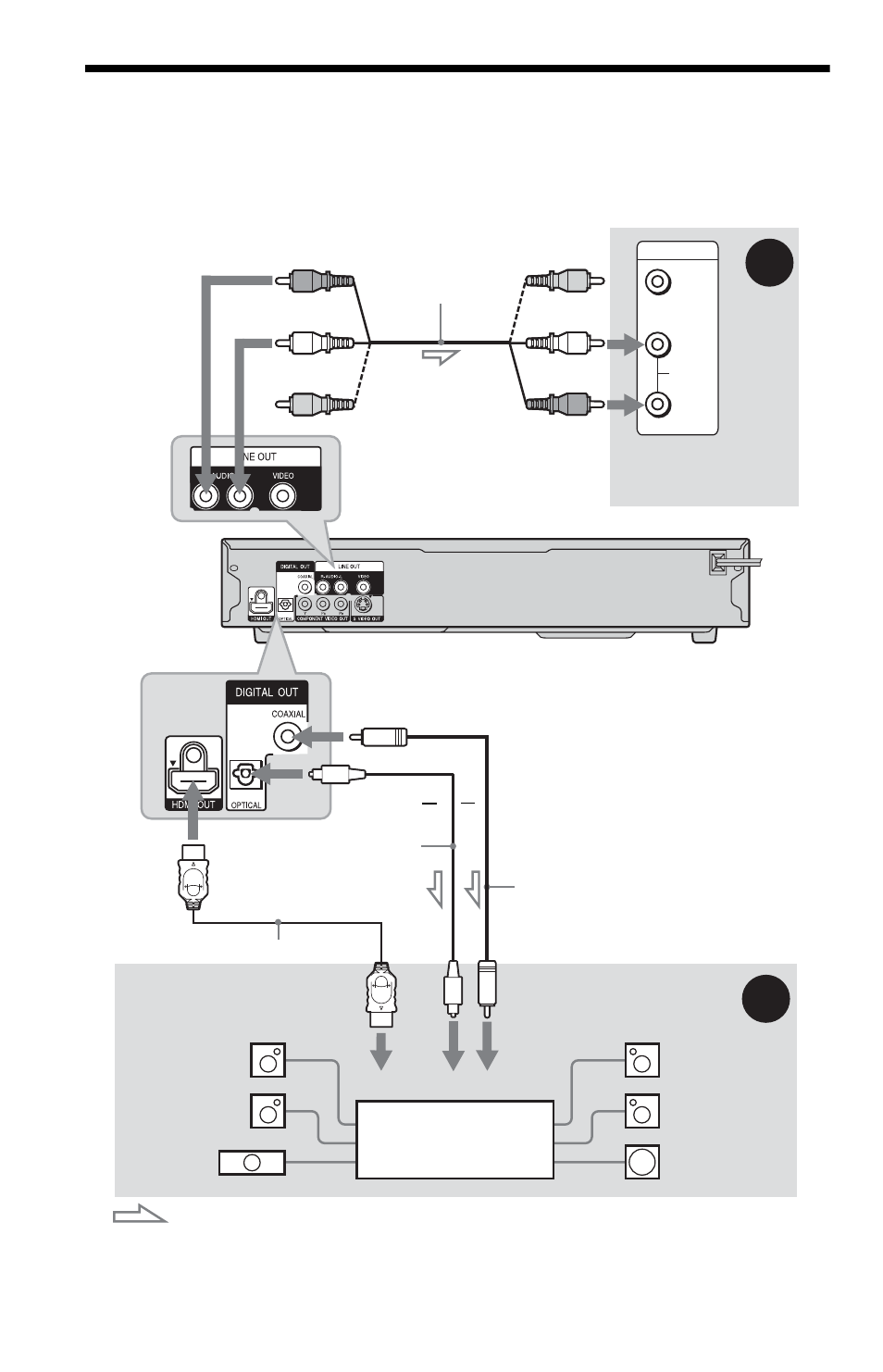

Select one of the following patterns A or B, according to the input jack on your TV monitor,
projector, or audio component such as an AV amplifier (receiver).
This will enable you to listen to sound.
z Hint
For correct speaker location, see the operating instructions supplied with the connected components.
VIDEO
AUDIO
INPUT
L
R
B
A
Audio component
with a decoder
(red)
TV, projector, or
audio component
Audio/video
cord (supplied)
: Signal flow
Coaxial digital cord
(not supplied)
to LINE OUT L/R (AUDIO)
Rear (L)
CD/DVD player
(white)
(yellow)*
(yellow)*
(white)
(red)
[Speakers]
Front (L)
[Speakers]
to coaxial or optical/
HDMI digital input
Rear (R)
Front (R)
Subwoofer Center
* The yellow plug is used for video signals (page 15).
or
Optical digital cord
(not supplied)
Remove jack cap
before connecting
or
HDMI cord (not supplied)
to DIGITAL OUT (COAXIAL or
OPTICAL)/HDMI OUT
