Functional Overview
Caution: Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.

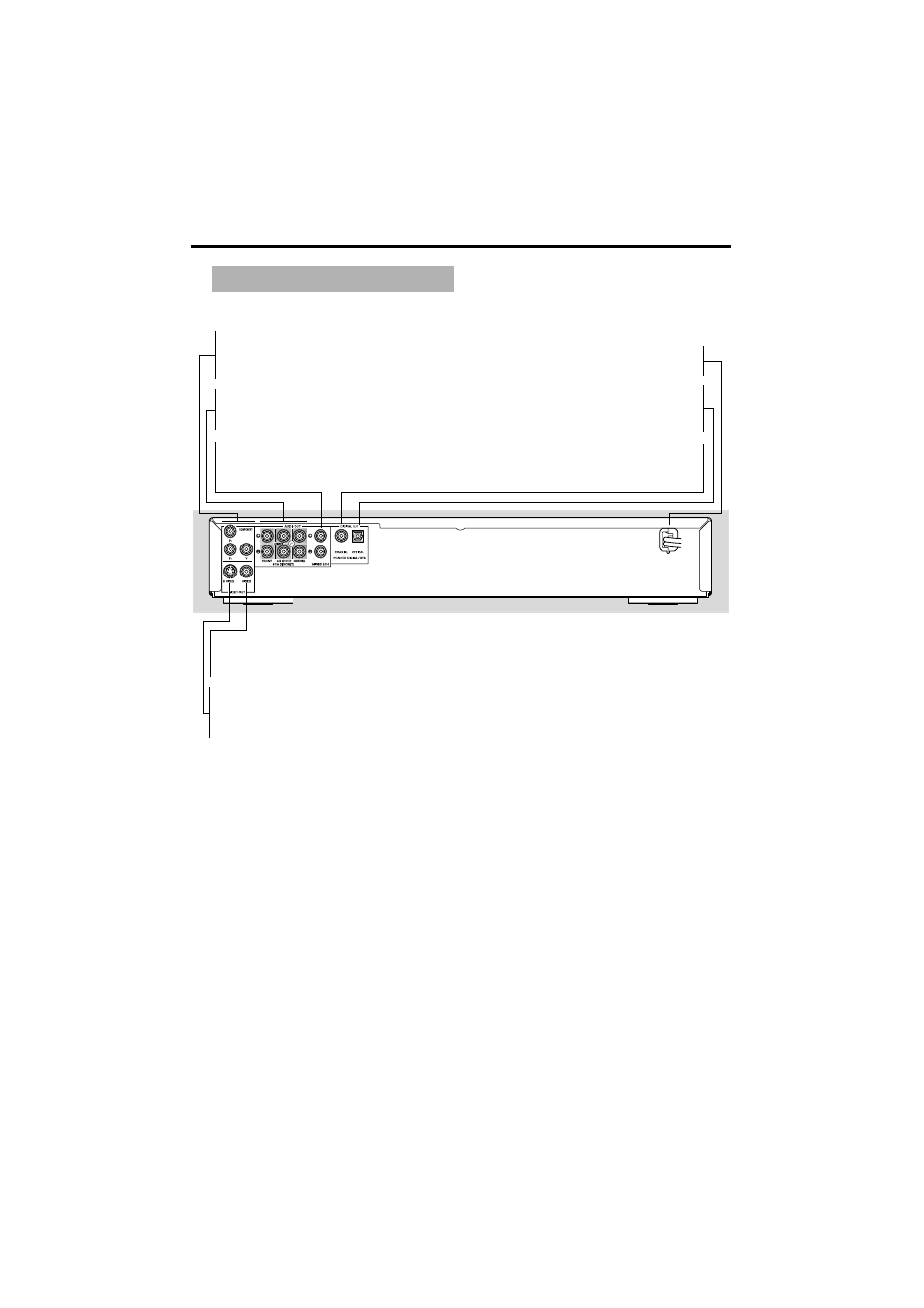

Rear Panel
COMPONENT video outputs
– connect to an AV receiver with Y P
B /
C B P R /C R inputs
AUDIO OUT - 6CH DISCRETE
– connect to 6CH INPUT inputs of your
AV receiver
AUDIO OUT - MIXED 2CH
– connect to AUDIO inputs of your AV
receiver or stereo system
AC Power Cord
– connect to a standard AC outlet
DIGITAL OUT - OPTICAL
– connect to OPTICAL input of your
AV receiver
DIGITAL OUT - COAXIAL
– connect to COAXIAL input of
your AV receiver
VIDEO OUT - VIDEO
– connect to VIDEO (composite) input of
your AV receiver
VIDEO OUT - S VIDEO
– connect to S VIDEO input of your AV
receiver
