Page 16
16
5.65S TREADMILL
ASSEMBLY

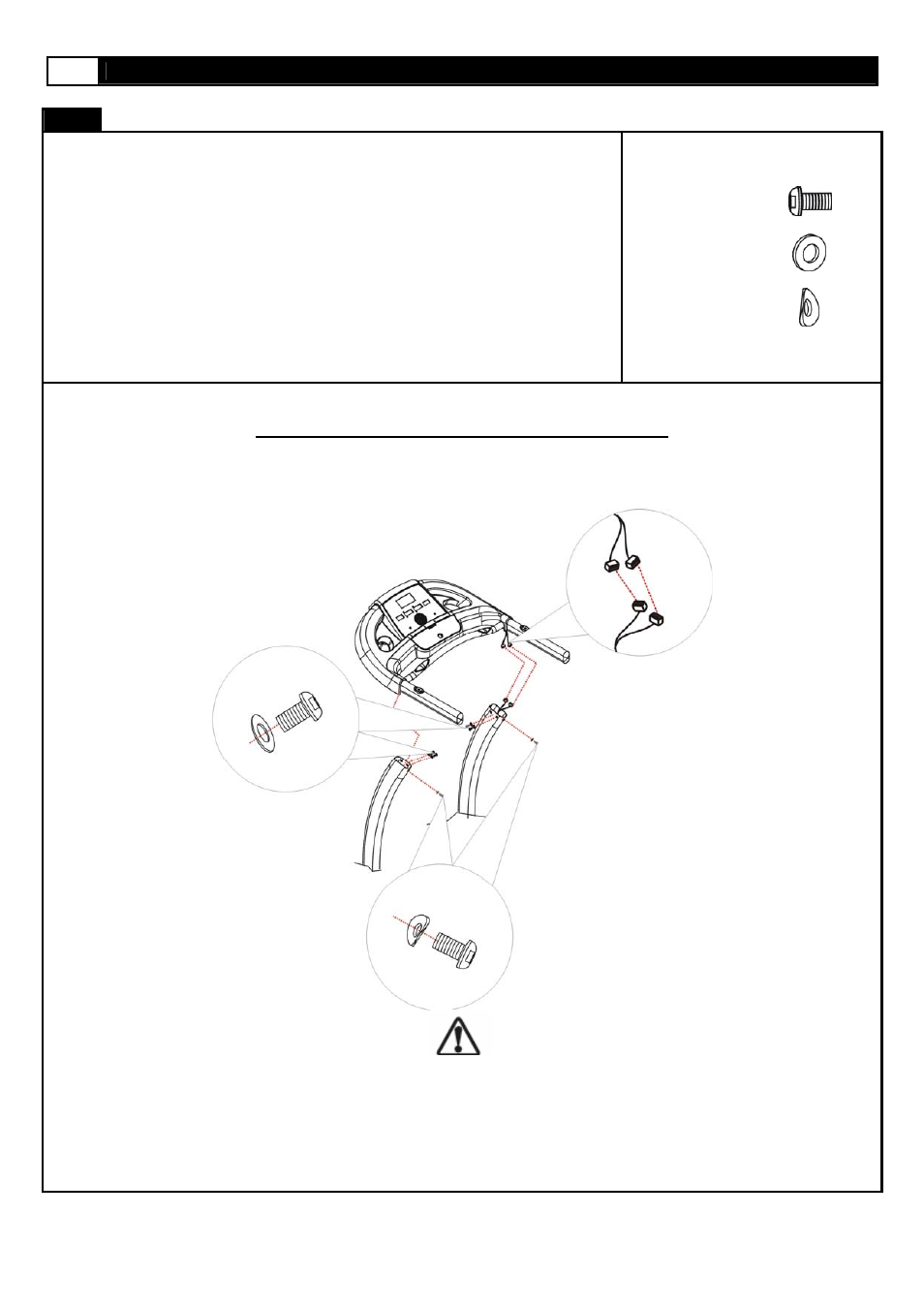

STEP2: Attach Console to Left and Right Uprights
1). Connect the Upper Console Wire (230) from the console set to Lower Console
Wire (151) in the right upright, Then place the excess wire and the connectors
into right upright.
2). Place the entire console set onto the uprights, and secure the left side using 3
x M8x15mm Bolt (303) with 2 x M8 Washer (305) and 1 x M8 Curve Washer
(304).
3). Repeat the above process for the Right side
4). Fully tighten all bolts from step 1 and step 2
303 X6
305 X4
304 X2
Caution Pinch point! Do not pinch wires between frame.
Tighten all bolts and fasteners now
303
305
303
304
230
151
