Model DPC2434 Wireless Home Gateway with
Two-Line Embedded Media Terminal Adapter
2

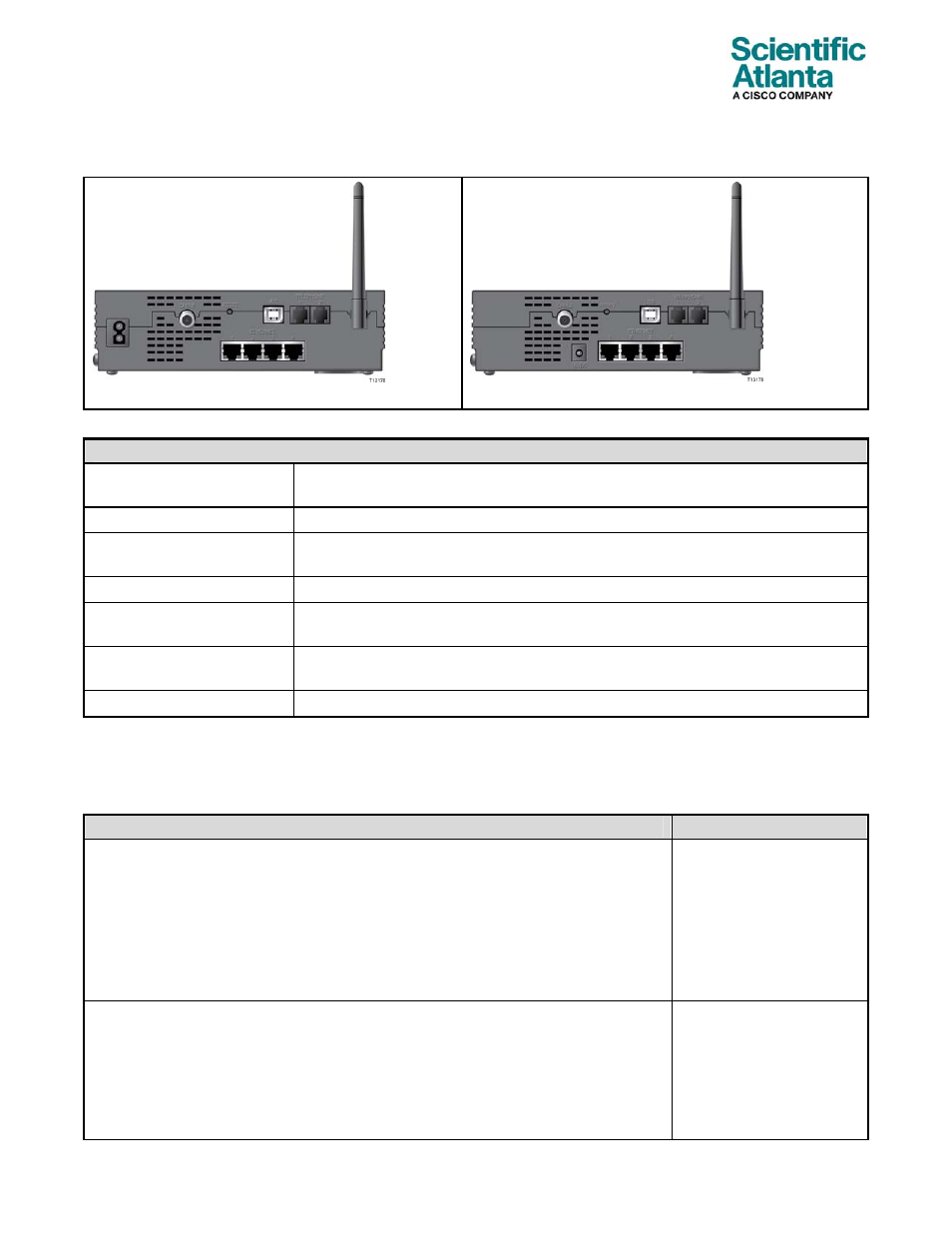

DPC2434 Back Panel
Model with internal power supply Model with external power supply
Back Panel Connections
POWER or 15 VDC Connects the wireless home gateway to the AC power cord or to the AC power
adapter
CABLE F-connector connects to an active cable signal from your service provider
RESET Resets the EMTA. Pressing this switch for more than ten seconds resets the
device to factory default values and resets the EMTA
USB USB 2.0 port connects to the USB port on your PC
ETHERNET (1 – 4) Four RJ-45 Ethernet ports connect to the Ethernet port on your PC or your home
network
TELEPHONE 1 and 2 RJ-11 telephone ports connect to home telephone wiring and to conventional
telephones or fax machines
ANTENNA Provides a communication connection for the built-in WAP
Ordering Information
Contact your Sales Representative for product availability in your area.
Description Part Number
DPC2434-2200 Wireless Home Gateway with 2-line EMTA. Includes:
• North American tuning plan
• Internal 100-240 V AC / 50-60 Hz universal power supply
• Power cord, North America, NEMA 1-15 to C7
• 2200 mAh battery cartridge
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB driver
4013345
DPC2434C2-2200 Wireless Home Gateway with 2-line EMTA. Includes:
• North American tuning plan
• 120 V AC / 50-60 Hz, 15 V DC / 1 A wall-mount linear switching power supply
• 2200 mAh battery cartridge
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB driver
4015327
