26
A-3. PROTOCOL
7 th ~8 th dip switches are used for Protocol Setting.
Factory Default: Pelco-D or Pelco-P ( Auto detection)
DIP SW 1- 7 DIP SW 1- 8
OFF OFF Pelco-D or Pelco-P
A-4. BAUD RATE SETTING
The 9
th
Dip Switch is used for BAUD RATE setting.
DIP SW can be changeable to 2400bps, 9600bps.
Factory Default: 2400bps.
DIP SW 1 9 th BAUD RATE
OFF 2400
ON 9600
.

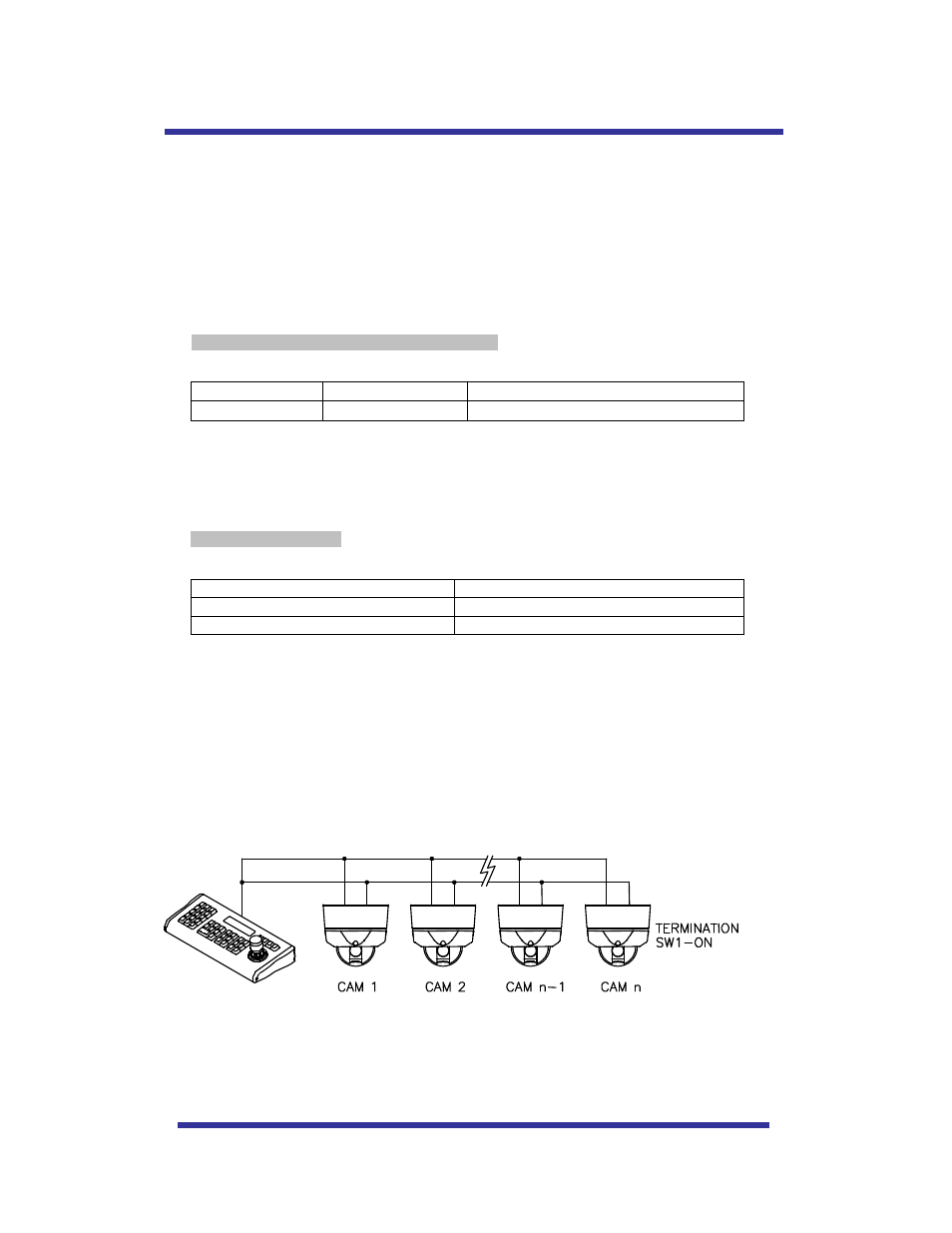

A-5. 485 TERMINATIONS
10 th Dip Switch is used for 100 Ω termination.
Set on 10 th Dip Switch only for the last looped camera from the controller.
Even in case of only one camera, set on 10 th Dip Switch of the cameras.
DIP SWITCH SETTING
