KDL-32L40xx
KDL-26L40xx
KDL-19L40xx
Unit: mm
Figures in the above table may differ slightly depending on the installation.
The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of
the TV. Refer to “Specifications” (page 35) for its weight.

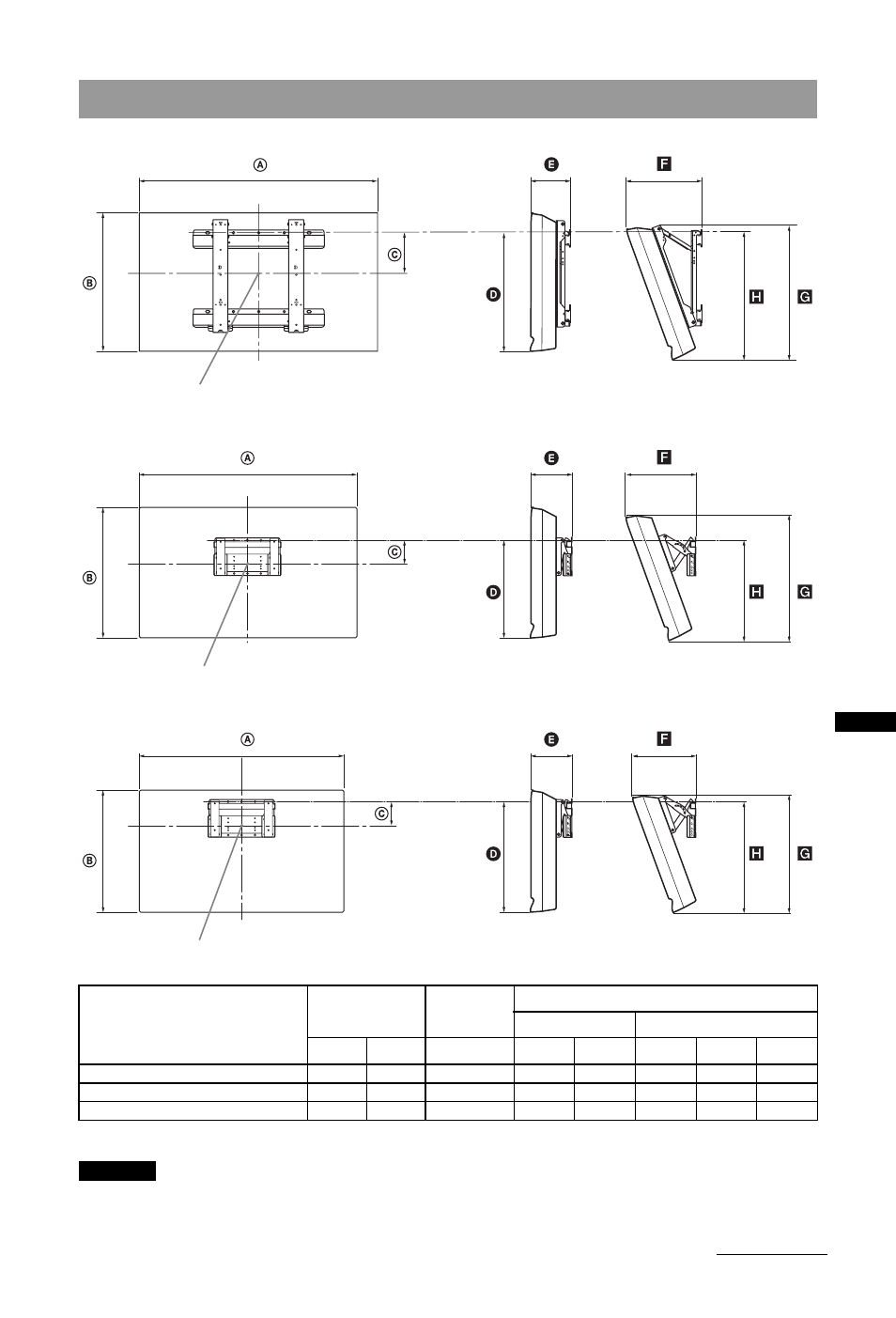

TV installation dimensions table
Model Name
Display dimensions
Screen centre
dimension
Length for each mounting angle
Angle (0 °) Angle (20 °)
A B C D E F G H
KDL-32L40xx 807 548 172 485 167 304 532 513
KDL-26L40xx 674 470 92 352 153 258 456 357
KDL-19L40xx 479 376 125 339 136 215 362 340
Screen centre point
Screen centre point
Screen centre point
