FINISH OPTIONS
black (b) silver (s)

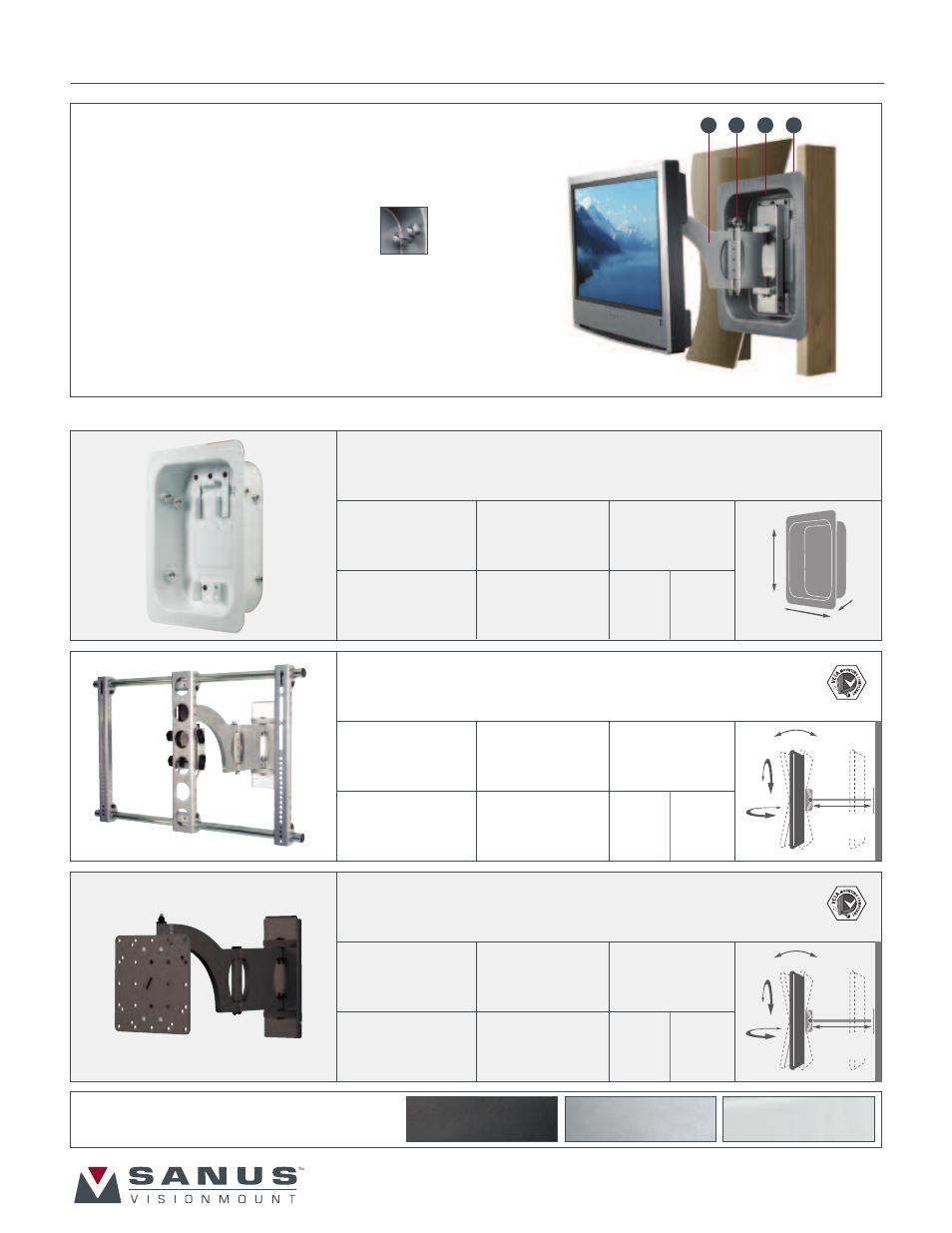

NEW VISIONMOUNT ® RECESSED IN-WALL BOX
16.75"
42.5 cm
17.5"
44.5 cm
3.5"
9 cm
DESCRIPTION
Recessed in-wall box;
finger-adjustable Quick Shims allow box to be
leveled and secured tightly into place in no time
PRODUCT DIMENSIONS
16.75" w x 3.5" d x 17.5" h
42.5 x 9 x 44.5 cm
PACKAGE DIMENSIONS
18.5" w x 17" d x 3.75" h
47 x 43.25 x 9.5 cm
UPC
LR1A-W1 793795362209
LR1A-S1 793795362193
LR1A-B1 793795362186
MOUNTING PATTERN
VM400 – VESA 100, VESA 200 x
100, VESA 200 x 200
LRF118 – VESA 200, Universal
WEIGHT CAPACITY
VM400 – up to 80 lbs. 39 kg
LRF118 – up to 130 lbs. 59 kg
TV SIZE
15" – 40"
30" – 50"
MSRP/MAP
$249.99
DESCRIPTION
Full-motion wall mount for large flat-panel TVs;
allows ±6° lateral roll to ensure TV is perfectly level after hanging
PRODUCT DIMENSIONS
29.5" w x 1.5"- 17" d x 19.5" h
74.9 x 3.8-43.2 x 49.5 cm
PACKAGE DIMENSIONS
27.5" w x 19.5" d x 4.5" h
68.8 x 49.5 x 11.5 cm
UPC
LRF118-S1 793795362285
LRF118-B1 793795362278
MOUNTING PATTERN
VESA 200, Universal
WEIGHT CAPACITY
130lbs.
59 kg
TV SIZE
30" – 50"
MSRP/MAP
$349.99 1.5"-17"
3.8 - 43.2 cm 180°
±6°
-15° +5°
DESCRIPTION
Full-motion wall mount for medium LCD;
allows ±6° lateral roll to ensure TV is perfectly level after hanging;
arm can be padlocked to the box, making it harder to remove
PRODUCT DIMENSIONS
15" w x 0"- 17" d x 12.75" h
38.1 x 0- 43.2 x 32.4 cm
PACKAGE DIMENSIONS
16.25" w x 12.75" d x3.75 " h
41.25 x 32.5 x 9.5 cm
UPC
VM400s 793795360571
VM400b 793795360564
MOUNTING PATTERN
VESA 100, VESA 200 x 100
VESA 200 x 200
WEIGHT CAPACITY
80lbs.
36.3 kg
TV SIZE
15" – 40"
MSRP/MAP
$219.99 0"-17"
0 - 43.2 cm 180°
±6°
-15° +5°
MODEL
LR1A-W1
LR1A-S1
LR1A-B1
MODEL
LRF118-S1
LRF118-B1
MODEL
VM400s
VM400b
Paintable white (w)
LR1A only
www.sanus.com 800.359.5520
4 3 2 1
The new LR1A recessed box allows a TV to be
flush to the wall, so it hangs like a picture.
1. Cut a hole in the sheetrock between
16" center studs and set the LR1A inside.*
2. The finger-adjustable Quick Shims allow you
to easily position and level the box and then
secure it in place using provided hardware.
3. There are cutouts for signal and power cables
on top and bottom, plus it’s available in silver,
black or paintable white to match any décor.
4. Once the LR1A is in place, choose a full-motion
mount (model LRF118 or VM400) that fits your TV.
* Safety note: Ensure electrical wires or piping
do not run within hole to be cut. Models VM400s and LR1A-S1 shown
