STR-DE245/DE345
14 14
1 2
A
B
C
D
E
F
G
3 4 5 6 7 8 9 10
(Page 10)
(Page 10)
TO
STAND BY BOARD
CN901
(Page 16)
E
DE245: AEP, UK, CIS, EE
DE345: AEP, CIS, EE
DE245: AEP, UK,
CIS, EE
DE345: AEP, CIS, EE
S236 S237
PTY EON

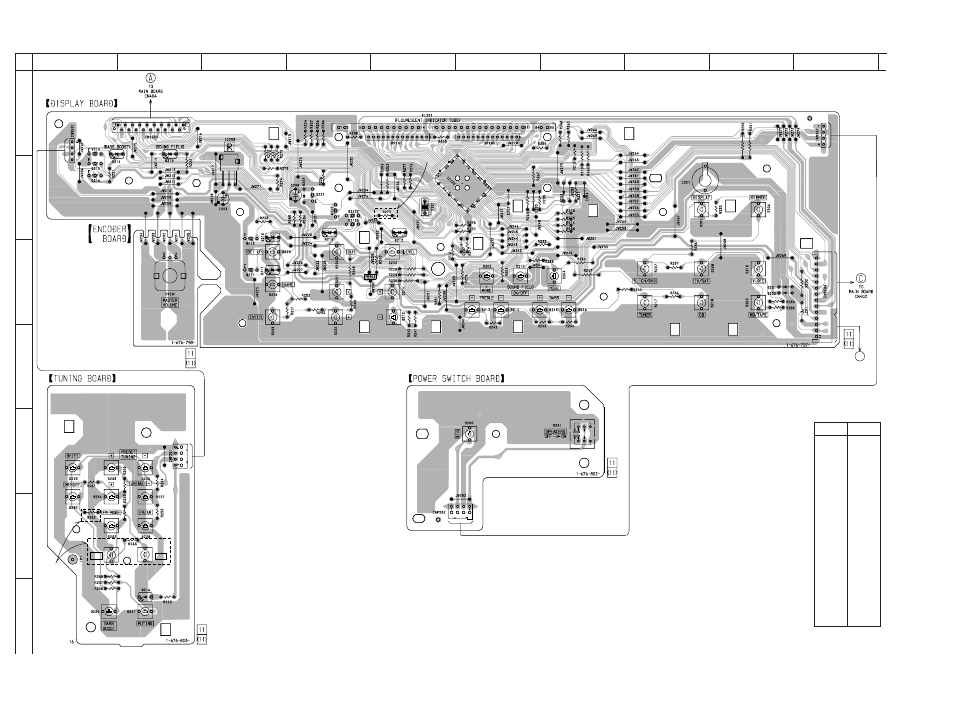

3-9. PRINTED WIRING BOARD PANEL SECTION • Refer to page 9 for Circuit Boards Location.
Ref. No. Location
D201 C-9
D202 C-9
D203 B-7
D204 B-4
D210 C-3
D211 C-3
D212 B-5
D213 B-4
D214 B-1
D215 B-2
IC103 B-6
IC203 B-3
Q201 B-4
Q202 B-4
Q210 C-3
Q211 C-3
Q212 B-4
Q213 B-4
Q214 B-1
Q215 B-1
Q216 B-1
• Semiconductor
Location
