Getting started
Getting started 7
VTX-D800
CA UTION -
TO PREVENT ELECTRIC SHOCK, DO NO
T REMO
VE THE CO
VER.
FOR Q
UALIFIED PERSONNEL ONL
Y
VTX-D800
1
2

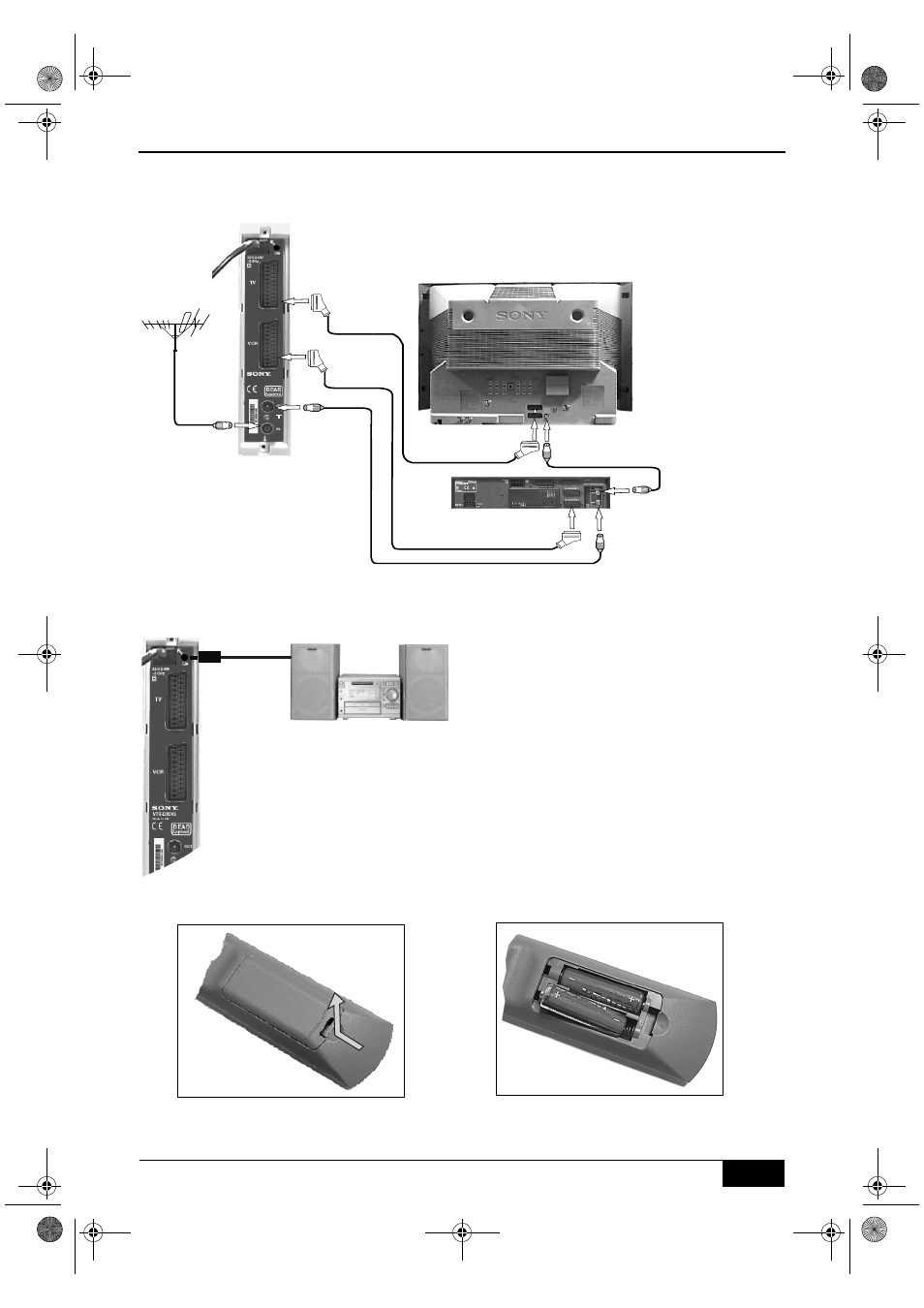

Inserting batteries into the remote control
Connecting your TV and VCR
Note: Before connecting your TV and VCR, ensure all equipment is disconnected from the mains supply.
Connecting a Hi-Fi etc.
Connect your Hi-Fi to the audio output socket of the
receiver as shown.
Note: Depending on your Hi-Fi equipment, you can use
either a conventional 3.5mm jack plug lead or an
optical lead (mini TOS) when connecting your Hi-Fi
to the receiver.
Do not connect your headphones to this socket.
To TV aerial
socket *To TV scart
socket
Loop through
cable
*To VCR scart
socket
* When connecting SMARTLINK equipment,
please refer to page 19.
** If you do not have a VCR, connect the loop
through cable directly to your TV aerial socket.
**To RF IN
socket
To RF OUT
socket
Push and lift up the release clip to
remove the battery cover. Insert the supplied batteries as
indicated inside the battery
compartment.
