14
40"
(101.6cm)
100"
(254.0cm)
150"
(381.0cm)
200"
(508.0cm)
250"
(635.0cm)
307"
(779.8cm)
Lens Center
A
B
H
A
Lens Center
H : A = 6.78
B ÷ H x 100% = 115%(Offset)
B
3.936'(1.200m)
***
35.833'(10.922m)
28.667'(8.738m)
21.500'(6.553m)
14.333'(4.369m)
Min. zoom Max. zoom
***
39.364'(11.998m)
32.500'(9.906m)
26.000'(7.925m)
19.500'(5.944m)
13.000'(3.962m)
~
~
~
~
~
~
Diagonal
Focus Ring

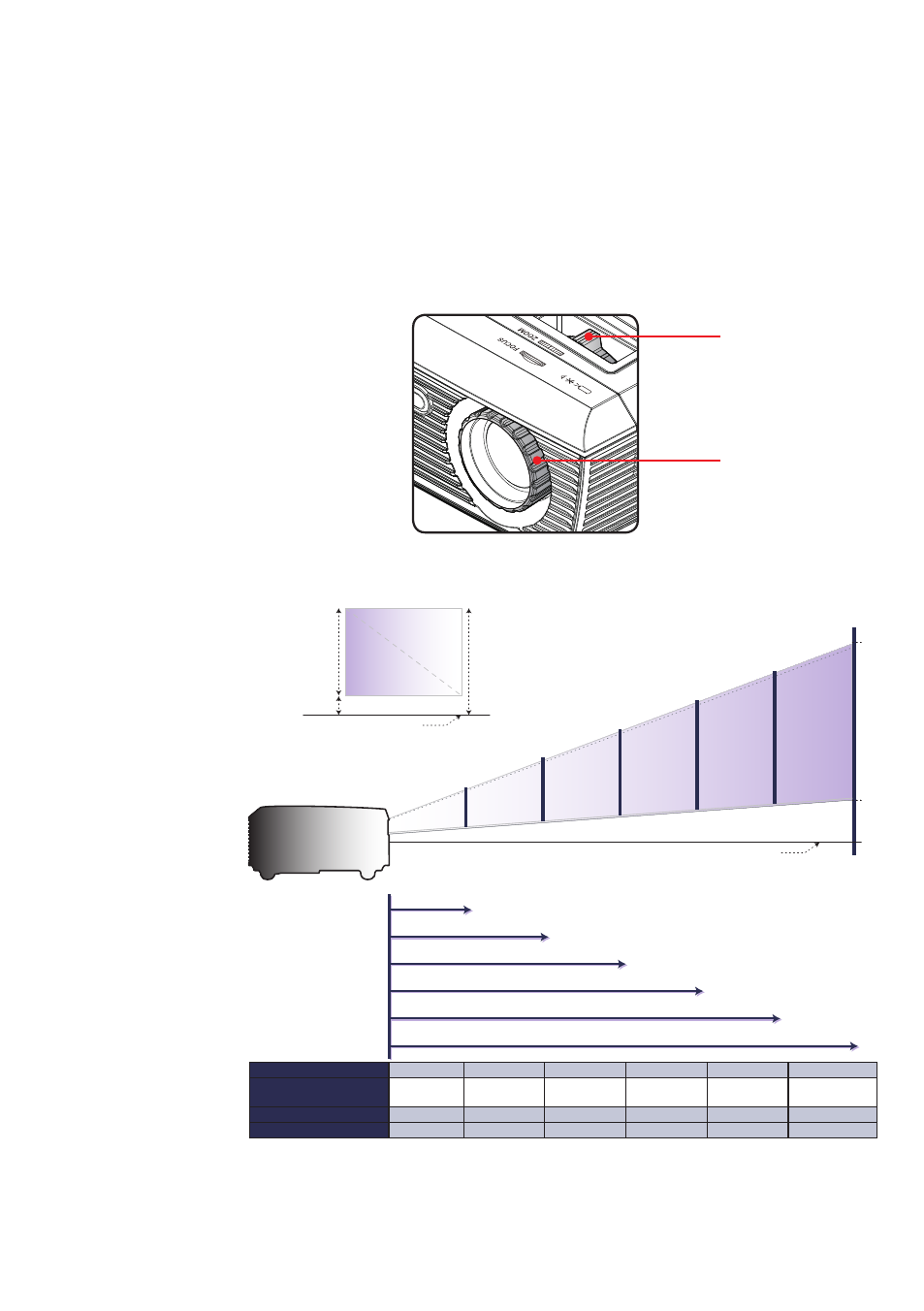

Adjusting the Projector Zoom and Focus
You may turn the zoom ring to zoom in or out. To focus the im-
age, rotate the focus ring until the image is clear. The projector
will focus at distances from 3.94 to 39.36 feet (1.2 to 12.0 meters)
with mechanical travel.
Adjusting Projection Image Size
 This graph is for user’s reference only.
Screen (Diagonal) 27.46” (70cm) 100” (254.0cm) 150” (381.0cm) 200” (508.0cm) 250” (635.0cm) 302.8” (769.0cm)
Screen Size (WxH)
22.0” x 16.5”
(55.8 x 41.8cm)
80.0” x 60.0”
(203.2 x 152.4cm)
120.0” x 90.0”
(304.8 x 228.6cm)
160.0” x 120.0”
(406.4 x 304.8cm)
200.0” x 150.0”
(508.0 x 381.0cm)
242.2” x 181.7”
(615.3 x 461.5cm)
Distance (Max. Zoom) *** 13.000’ (3.962m) 19.500’ (5.944m) 26.000’ (7.925m) 32.500’ (9.906m) 39.364’ (11.998m)
Distance (Min. Zoom) 3.936’ (1.200m) 14.333’ (4.369m) 21.500’ (6.553m) 28.667’ (8.738m) 35.833’ (10.922m) ***
Zoom Ring
