English-8

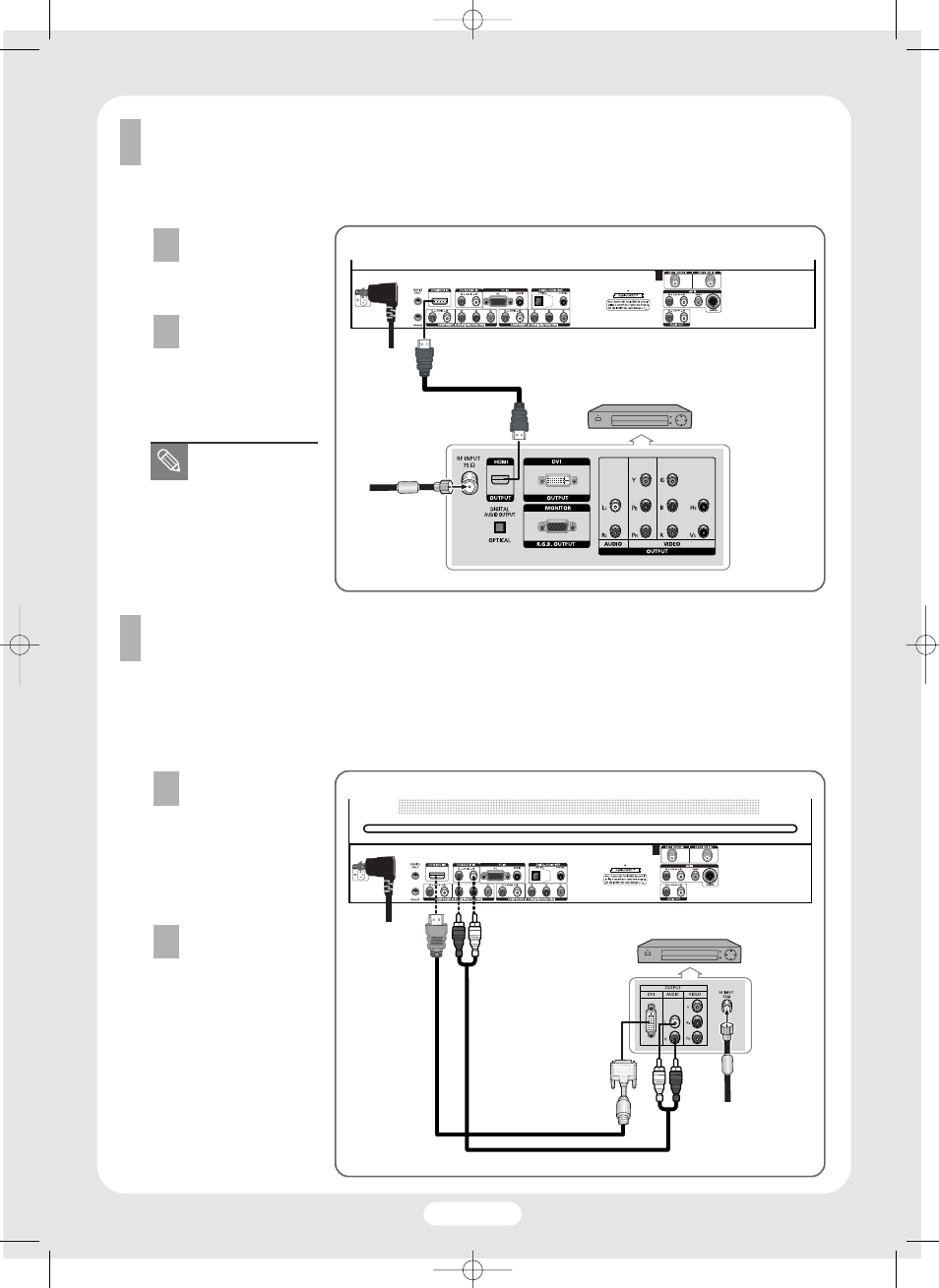

Connecting to HDMI (High Definition
Multimedia Interface)
(480p, 720p, 1080i)
Watching DTV
• Please make
sure the HDMI
source’s power
is on before
selecting HDMI
from the
“Source List”
on the TV.
1 Connect the cable or
antenna to the
antenna input jack on
the DTV.
2 Connect the HDMI
input jack on the TV
with the HDMI output
jack on the DTV
Set-Top Box using an
HDMI cable.
TV
DTV Set-Top Box
HDMI cable
Power cord
1 Connect the DVI
AUDIO (L, R) input
jacks on the TV
with the AUDIO
output jacks on the
Set-Top Box using
an audio cable.
2 Connect the HDMI
input jack on the
TV and the VIDEO
output jack on the
Set-Top Box using
an HDMI/DVI cable.
Connecting a Digital TV Set-Top Box
(480p, 720p, 1080i)
By inputting a high-bandwidth digital content protection High-Definition picture source to the HDMI
input jack on the TV, High-Definition pictures can be displayed on the screen in their digital form.
Connecting to HDMI (High Definition Multimedia Interface)/DVI Compatible
TV
Audio cable
HDMI/DVI cable
From cable
or Antenna
Power cord DTV Set-Top Box
