4. System Diagrams
The following diagrams show two examples of WLAN systems that utilize NetLink
components. The first diagram shows a system that utilizes a third-party IP protocol
with NetLink components. The second diagram shows an example of a larger
NetLink Telephony Gateway environment utilizing five NetLink Telephony
Gateways and an SVP Server.

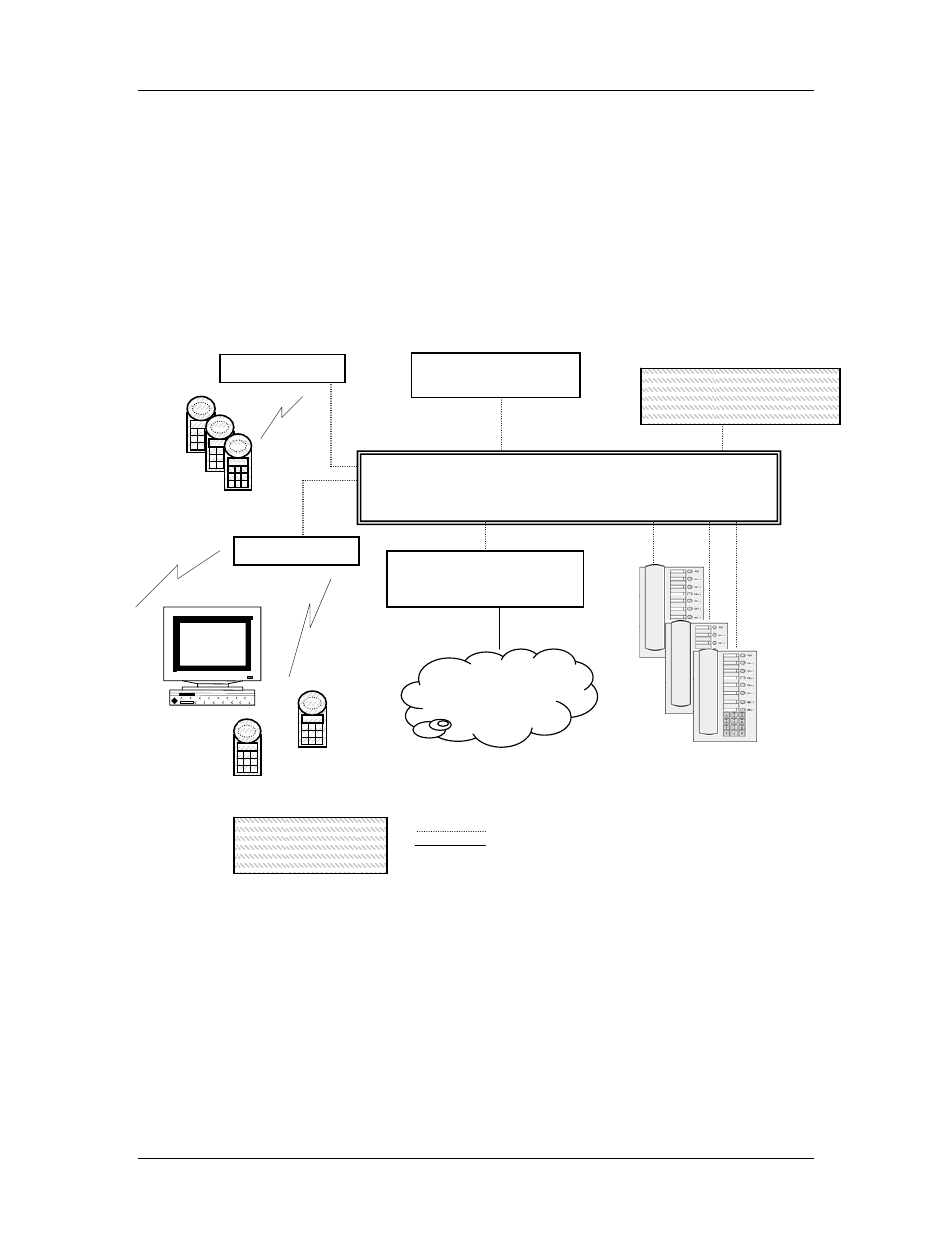

4.1 System Diagram for other IP Protocol environment
Vendor IP telephony server architecture example
NetLink SVP Server
Ethernet Switch
Access Point
Wireless
POS
NetLink
Wireless
Telephones
Access Point
Vendor IP
Phones
optional
Vendor IP Platform
PSTN
or
PBX
Device supplied by
SpectraLink
Ethernet cable
Phone cable
TFTP Server
NetLink
Wireless
Telephones
