SpectraLink Corporation Quick Start Guide
NetLink Components
PN: 72-1065-01-B.doc Page 10

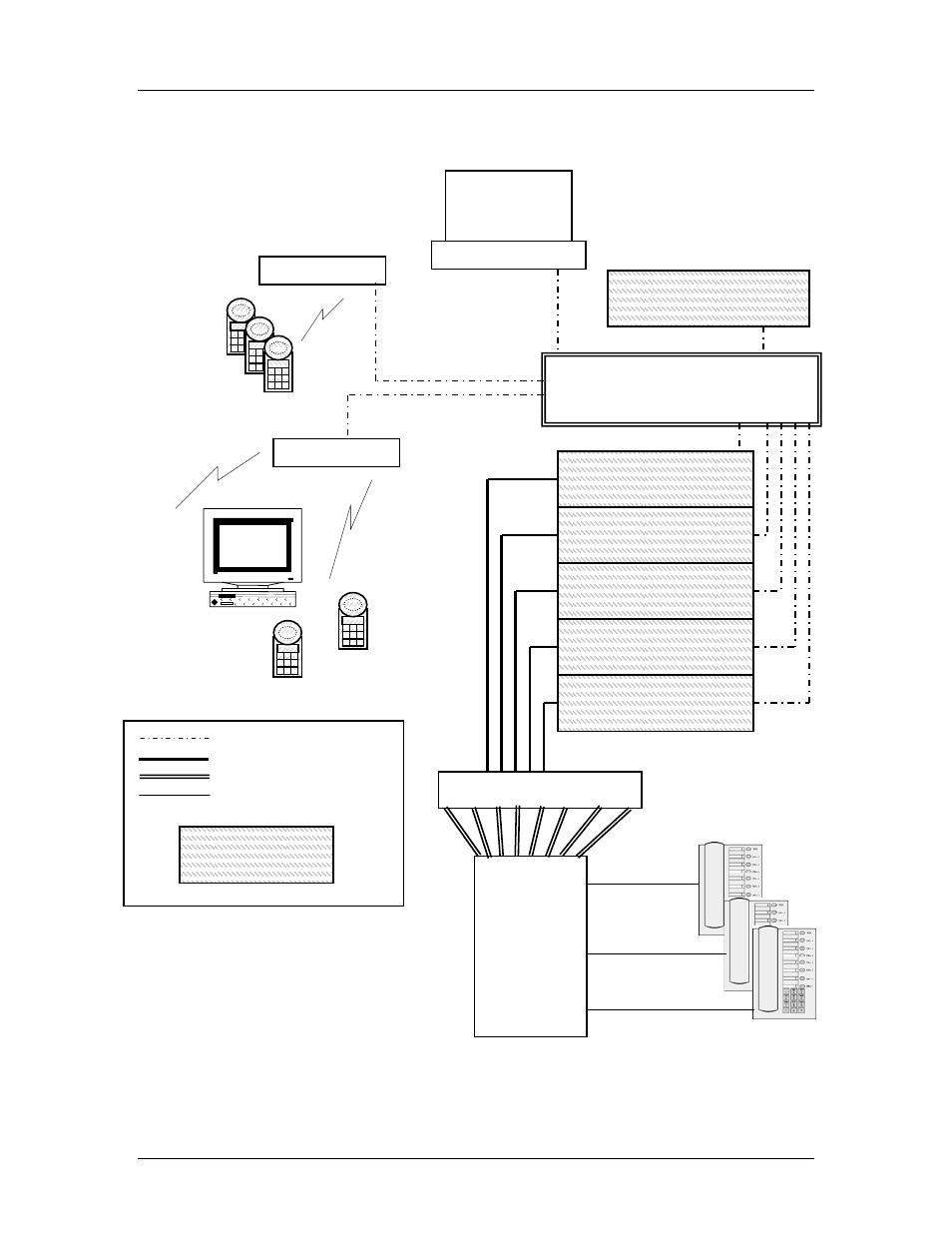

4.2 System Diagram for NetLink Telephony Gateway environments
(Five NetLink Telephony Gateways with NetLink SVP Server example)
NetLink SVP Server
Ethernet Switch
Access Point
Wireless
POS
Wireless
Telephones
Access Point
Desksets
optional
PBX
NetLink Telephony
Gateway
NetLink Telephony
Gateway
NetLink Telephony
Gateway
NetLink Telephony
Gateway
NetLink Telephony
Gateway
Device supplied by
SpectraLink
CAT 5 cable
25 pair cable
Multiple phone cables
Phone cable
Administrative
Computer
Demarc Block
